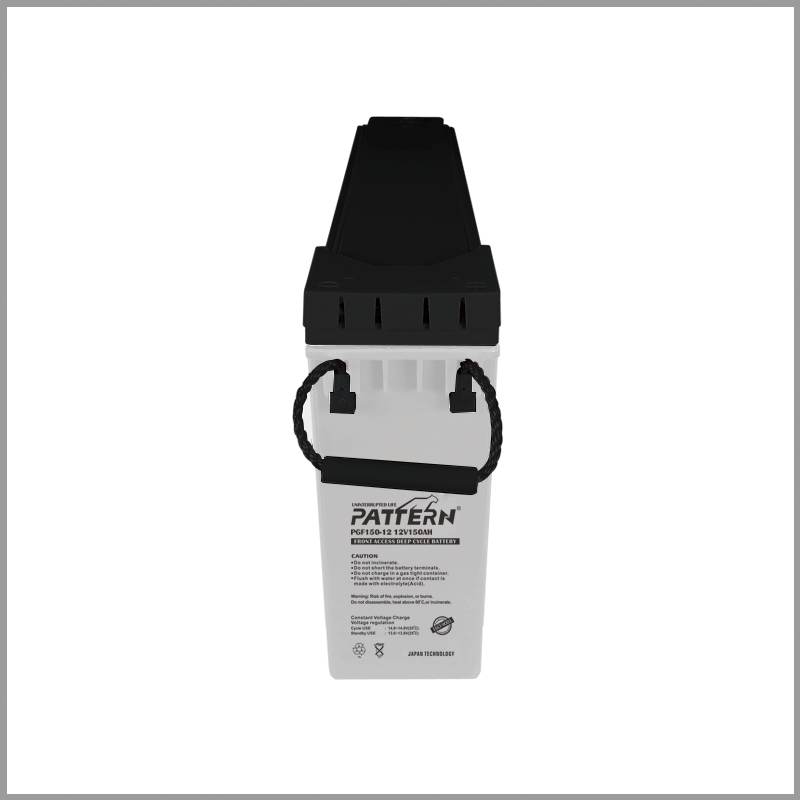

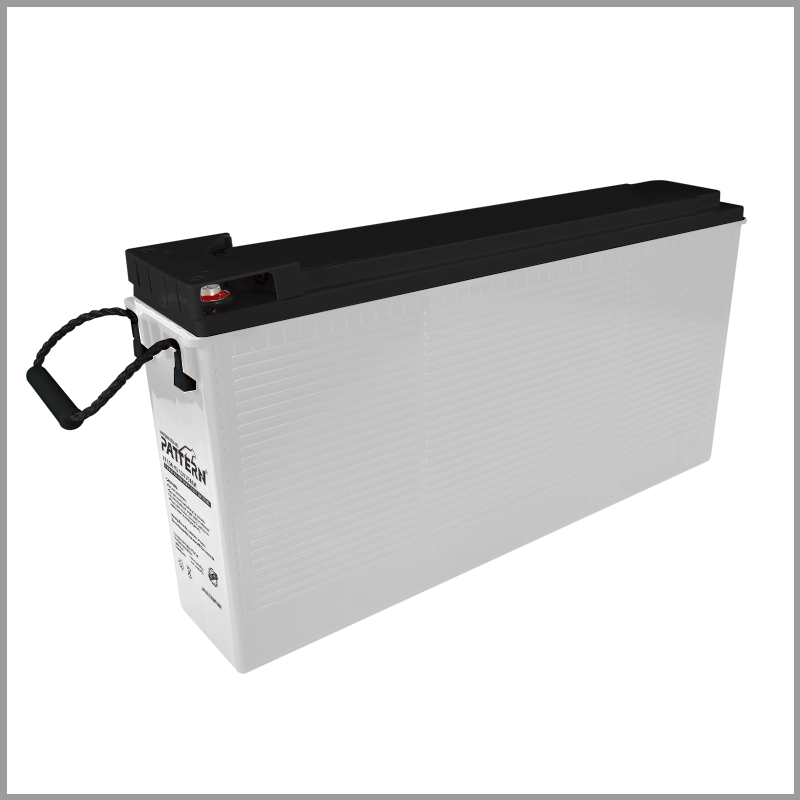

12V 150Ah GEL Battery
This GEL battery provides reliable power storage and delivery. The PGF150-12 model features a 12V output with a 150Ah capacity, ensuring extended operation and consistent performance.
Technical Specifications
Overview
High-Performance Deep Cycle GEL Battery
The PGF150-12 is a professional-grade 12V 150Ah GEL battery engineered for consistent, long-term power storage. Designed for deep cycle applications, it offers reliable performance for UPS, solar, wind, and telecom systems. Its sealed, maintenance-free construction ensures safety and durability, while its robust design supports a service life of up to 12 years in floating use.
Technical Specifications
Rated Capacity
150 Ah
Capacity (C10)
165 Ah
Capacity (C20)
- Rated Voltage
- 12 V
- Design Life
- 12 years (floating use at 25°C)
- Cycle Life
- 1200 times at 30% DOD
Physical Characteristics
Available Colors
BlackGrayDark GrayBlueRedYellowGreen
- Dimensions (L*W*TH)
- 551 * 109 * 288 mm
- Gross Weight
- 49.5 kg
- Container Material
- ABS
Compliance & Maintenance
- Maintenance Type
- Free Maintenance / Sealed
- Certifications
- ISO9001ISO14001OHSAS18001CEUL
Applications
Primary Applications
- UPS Equipment
- EPS Power Systems
- Energy Storage Systems
- Solar Systems
- Wind Power Systems
- Inverter Systems
- Telecom Systems
