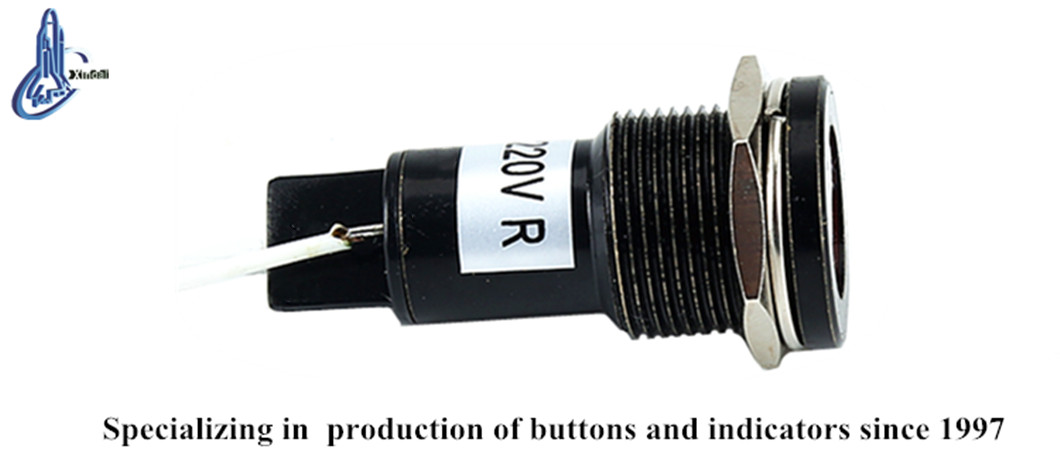

12mm LED Indicator Light
This 12mm LED indicator light provides clear visual signaling. Its durable metal housing ensures reliable performance in demanding environments.
Technical Specifications
Product Overview
High-Efficiency 12mm LED Indicator
The AD22 series LED indicator light is a robust signaling solution designed to replace traditional incandescent and neon lamps. Featuring high brightness and low power consumption, these 12mm metal-housed lamps offer superior reliability and a long operational lifespan. They are ideal for demanding industrial applications including electrical power, telecommunications, and machine tool signaling.
- Key Features
- High BrightnessAnti-SurgeLow ConsumptionBolt-type ConnectorCompact Volume
Technical Performance
Key Performance Metrics
2.5 kV
Working Frequency Voltage
2 MΩ
Insulation Resistance
20 %
Voltage Tolerance
Physical Specifications
- Mounting Hole Diameter
- 12 mm
- Housing Material
- Metal
- Lampshade Material
- Polycarbonate (High Intensity)
Electrical Options
- Available Voltages
- 6V12V24V36V48V110V127V220V380V
- Power Type
- ACDCAC/DC
Visual Signaling
LED Colors
RedGreenYellowBlueWhite
Special Signaling Types
- Double-color lamp
- Position indicator
- Shining buzzer
- Mini short indicator
Application Areas
Recommended Industries
- Electrical Power
- Telecommunications
- Machine Tools
- Watercraft
- Textile Machinery
- Printing Equipment
- Mine Machinery
