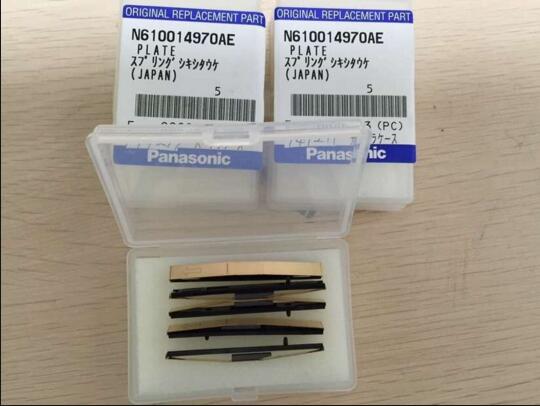

12mm Feeder Spring Bottom Plate for Pick and Place Machines
This spring type bottom plate is designed for use in 12mm feeders. It is a replacement part that ensures smooth component feeding during PCB assembly.
Technical Specifications
Product Overview
Precision Feeder Components
This spring-type bottom plate is a critical component designed for 12mm feeders in automated pick and place assembly lines. Engineered for durability and consistent performance, these replacement parts ensure smooth component feeding operations. This selection covers a wide range of machine compatibility, supporting various series including CM, SP, and NPM platforms.
Compatibility & Specifications
Machine Compatibility Reference
| Part Number | Size (mm) | Compatible Machines |
|---|---|---|
| KXF0DKCAA00 | 745 x 8.5 | CM402/CM602/DT |
| KXF0DKDAA00 | 925 x 8.5 | CM402/CM602/DT |
| KXF0DKEAA00 | 1195 x 8.5 | CM402/CM602/DT |
| KXF0DKFAA00 | 1390 x 8.5 | CM402/CM602/DT |
| KXF0DKGAA00 | 1355 x 8.5 | CM402/CM602/DT |
| N510004586AA | 1535 x 8.5 | CM402/CM602/DT |
| 180GC182093 | 1475 x 8.5 | SP28 |
| 110HC181222 | 1400 x 8.5 | SP28 |
| KXF07UWAA00 | 1400 x 8.5 | SP28 |
| KXF0DWXZB01 | 1285 x 8.5 | SP60-M |
| KXF0DWTDB00 | 1315 x 8.5 | SP60-M |
| KXF0E0R1A00 | 1375 x 8.5 | SP60-L |
| KXF0E0T9A01 | 1530 x 8.5 | SP60-L |
| N510022408AA | 2290 x 8.5 | SP18-L |
| N510019318AA | 2150 x 8.5 | CM212 |
| N510019317AA | 1775 x 8.5 | CM212/CM101 |
| N510027770AA | 1237 x 8.5 | CM301 |
| 030CC181371 | 1580 x 8.5 | CM301 |
| 030CC181451 | 2050 x 8.5 | CM301 |
| KXF0DXDTA00 | 1485 x 8.5 | CM202-DS |
| KXF0DXDUA00 | 1250 x 8.5 | CM202-DS |
| 0320C381381 | 1260 x 8.5 | CM20F-M |
| 0320C381081 | 1180 x 8.5 | CM20F-M |
| N510002570AA | 1900 x 8.5 | CM402-L |
NPM Series Specifications
- N510061306AA: 1050 x 4.5 x 0.65mm
- N510060401AA: 1980 x 4.5 x 0.65mm
- N510060976AA: 1174.5 x 4.5 x 0.65mm
- N510060977AA: 990 x 4.5 x 0.65mm
- N510065133AA: 1566 x 4.5 x 0.65mm
- Available Belt Types
- UNITTA 382-2GJ THEATA BELT-H12-LUNITTA 444-2GT THEATA BELT-H8MPAV Belt (1560 x 4.5 x 0.7mm)
