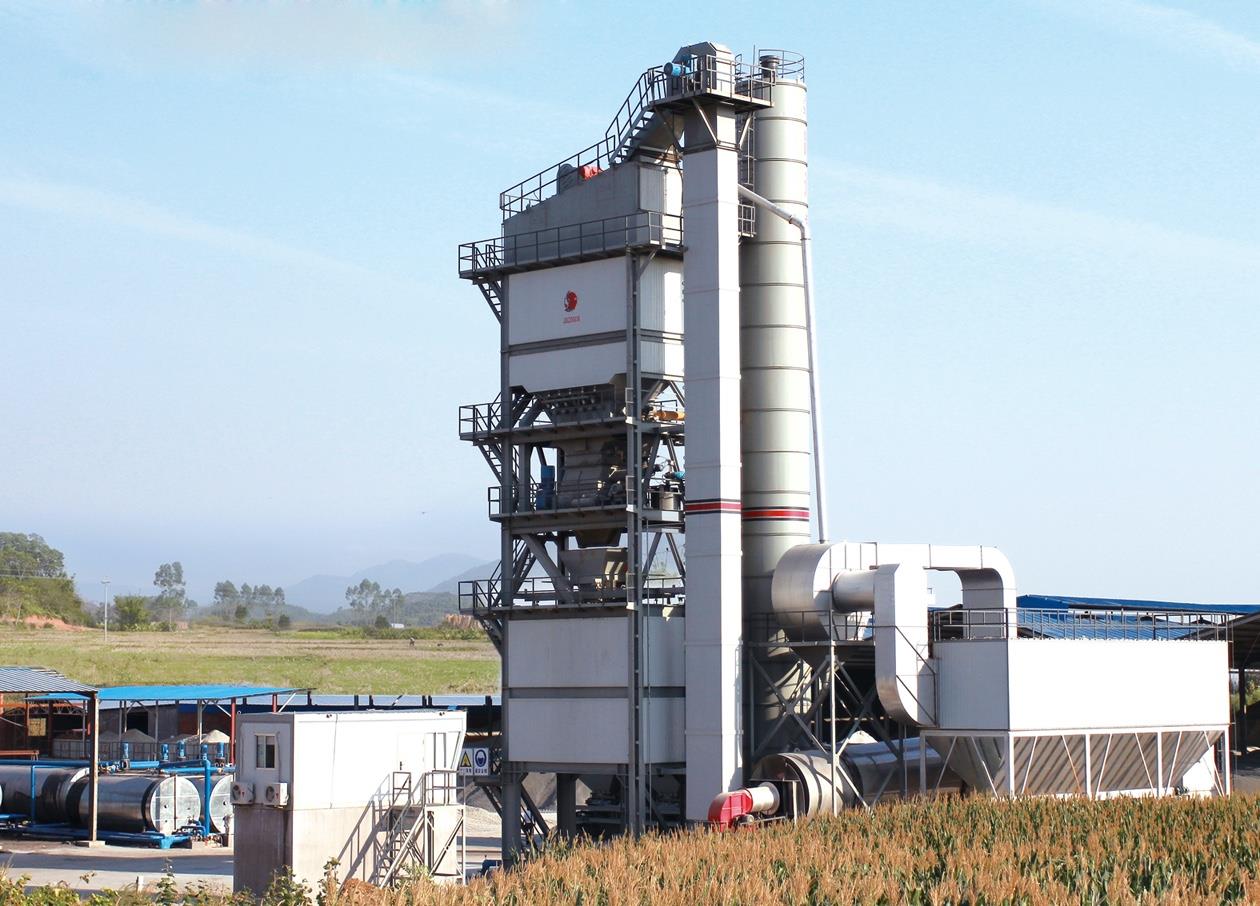

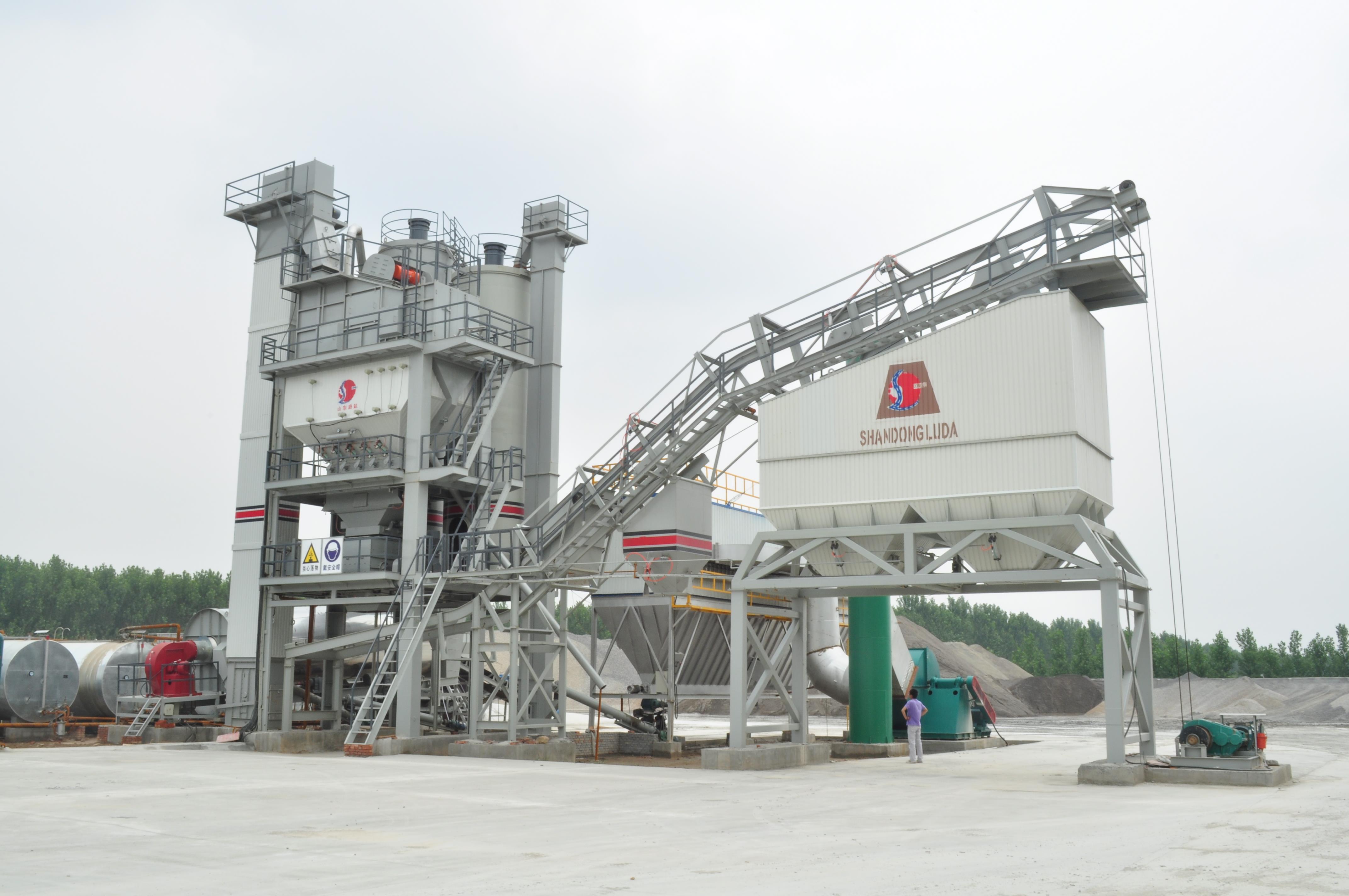

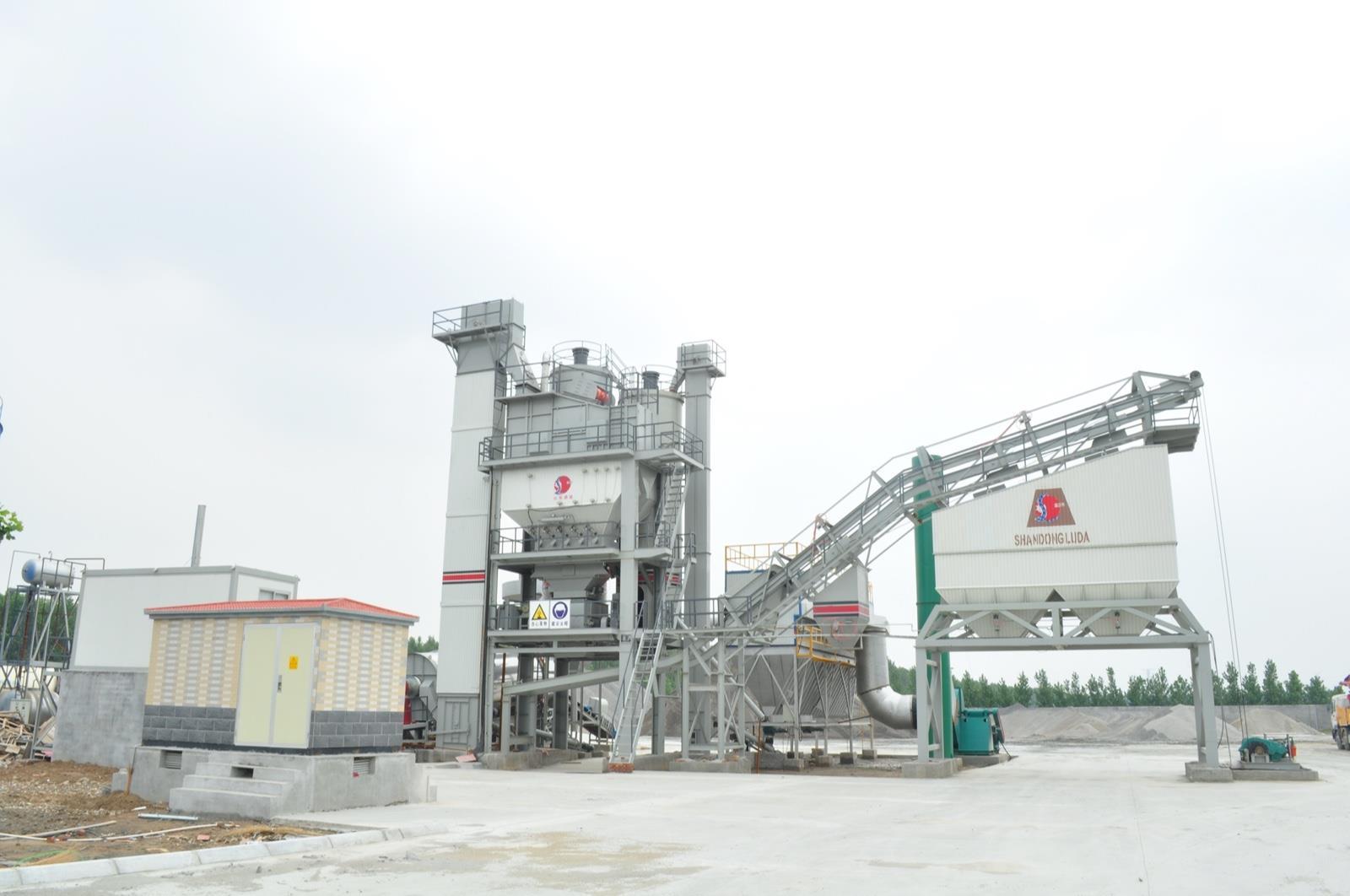

120 t/h Asphalt Mixing Plant
This asphalt mixing plant produces high-quality asphalt mixtures for road construction and maintenance. It integrates aggregate supply, drying, screening, weighing, and mixing systems.
Technical Specifications
Overview
High-Efficiency 120 t/h Asphalt Mixing Plant
The QLB1500 asphalt mixing plant is designed for professional-grade road construction and pavement maintenance. Engineered for precision and longevity, it features high-strength boiler steel drying drums, advanced twin horizontal mix shafts, and a robust dual-stage dust collection system. Its modular construction allows for efficient site integration, while automated PLC control systems ensure consistent, high-quality asphalt production at 120 t/h.
Performance
Key Performance Metrics
120 t/h
Capacity
1,500 kg
Mixer Capacity
367 kW
Main Power
Technical Specifications
Measuring Accuracy (Static)
| Material | Accuracy |
|---|---|
| Aggregate | ±0.5% |
| Asphalt | ±0.25% |
| Powder | ±0.25% |
- Compatible Burner Fuels
- CoalDieselHeavy OilNatural Gas
- Asphalt Tank Range
- 25 - 200 tonnes
- Dust Collection Method
- Two-stage: Cyclone and Baghouse Filter
