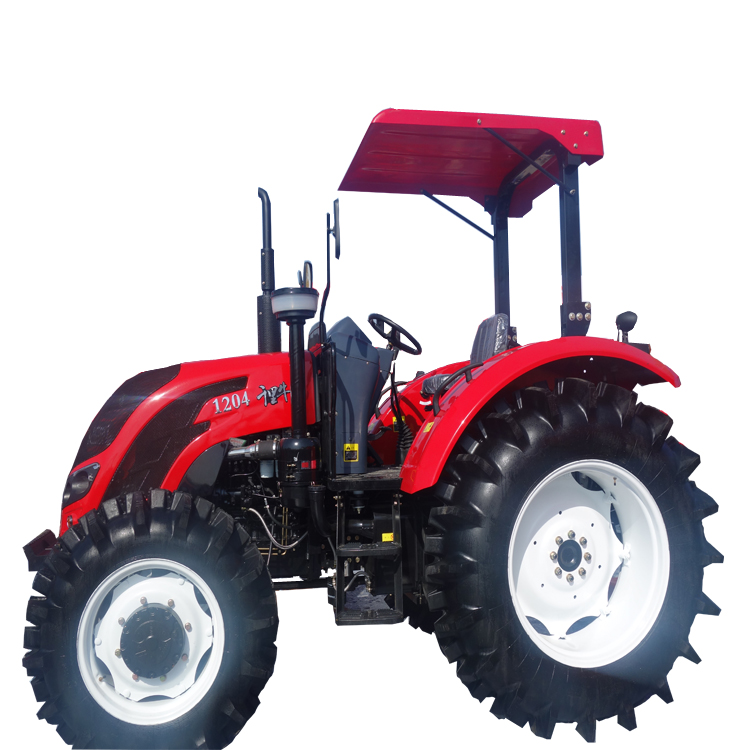

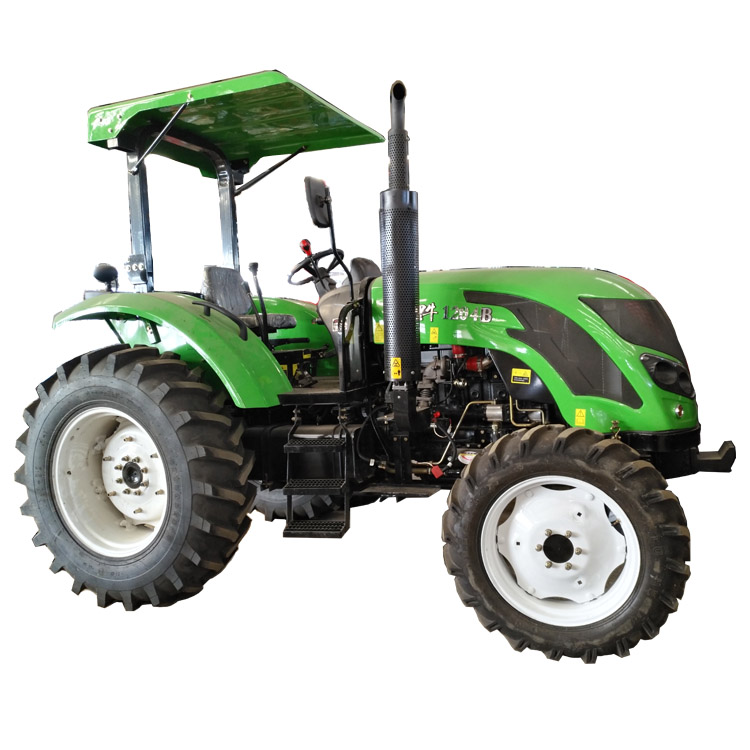

120 HP Farm Tractor
This 120 HP farm tractor features a YTO/YUCHAI engine and a LUK 12in. double-acting clutch. It also has a 150L fuel tank for extended operation.
Technical Specifications
Overview
High-Performance 120 HP Farm Tractor
This 120 HP agricultural tractor is engineered for high economic efficiency and low fuel consumption. It features a robust 4-cylinder water-cooled engine, a reliable double-acting dry clutch, and a versatile 540/1000 rpm PTO system. Designed for durability and productivity, it is well-suited for a wide range of farming tasks including plowing and harvesting.
Engine Specifications
Rated Power
88.2 kW
Rated Power
Engine Details
- Direct-injection, water-cooled 4-cylinder diesel engine
- 4 Cylinders
- Water Cooled cooling system
- 2200 r/min rated speed
Dimensions and Capacity
- Dimensions (L x W x H)
- 4280 x 2085 x 2925 mm
- Min. Ground Clearance
- 450 mm
- Dry Mass (with cab)
- 3915 kg
- Fuel Tank Capacity
- 150 L
Operational Features
Wheel Tread Specifications
| Position | Width |
|---|---|
| Front Wheel | 1520 mm |
| Rear Wheel | 1620 mm |
- Clutch Type
- Double-acting, Dry, Dual Stage
- PTO Speed
- 540 rpm1000 rpm
- Linkage
- II Rear Mount 3-point
