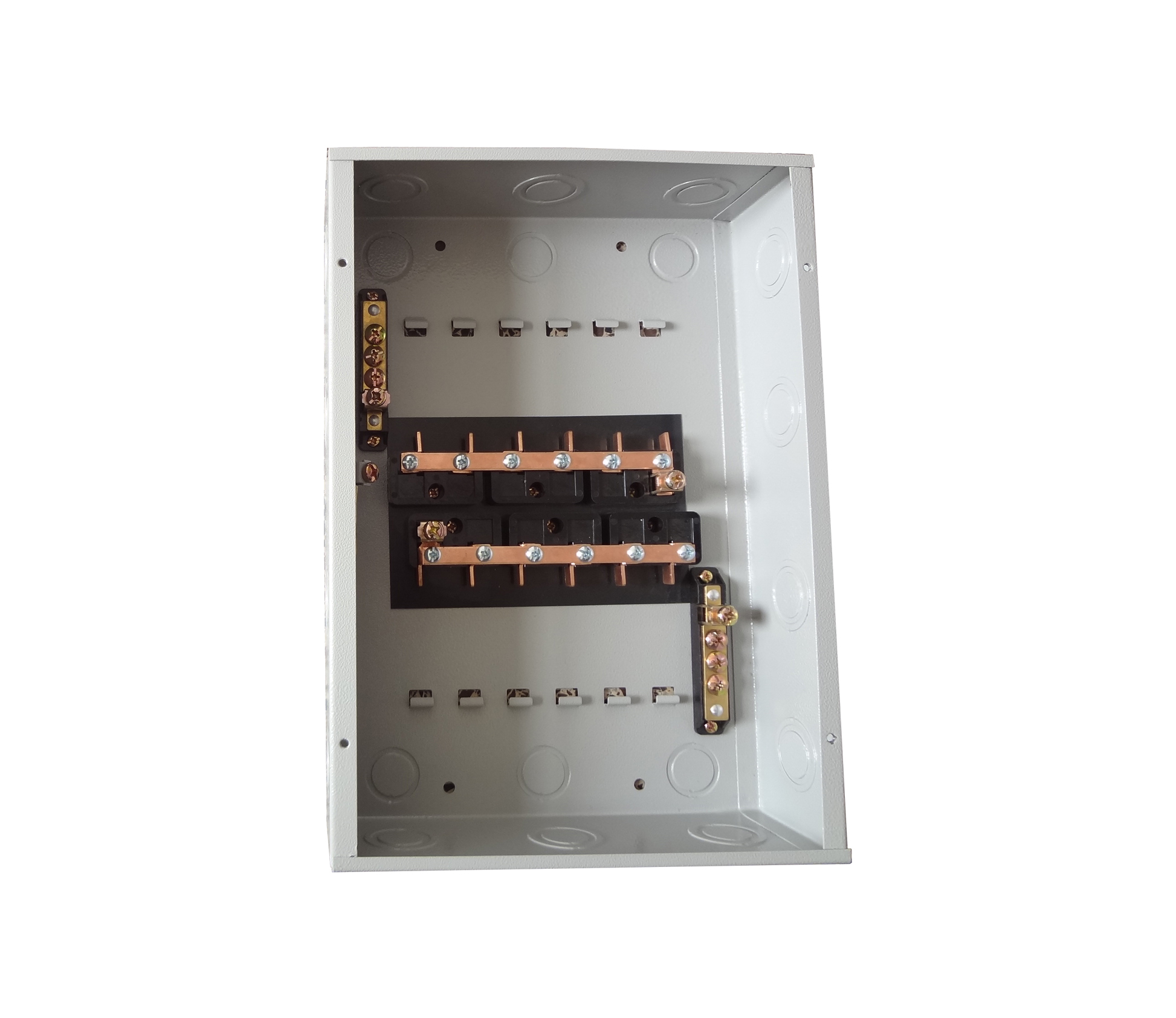

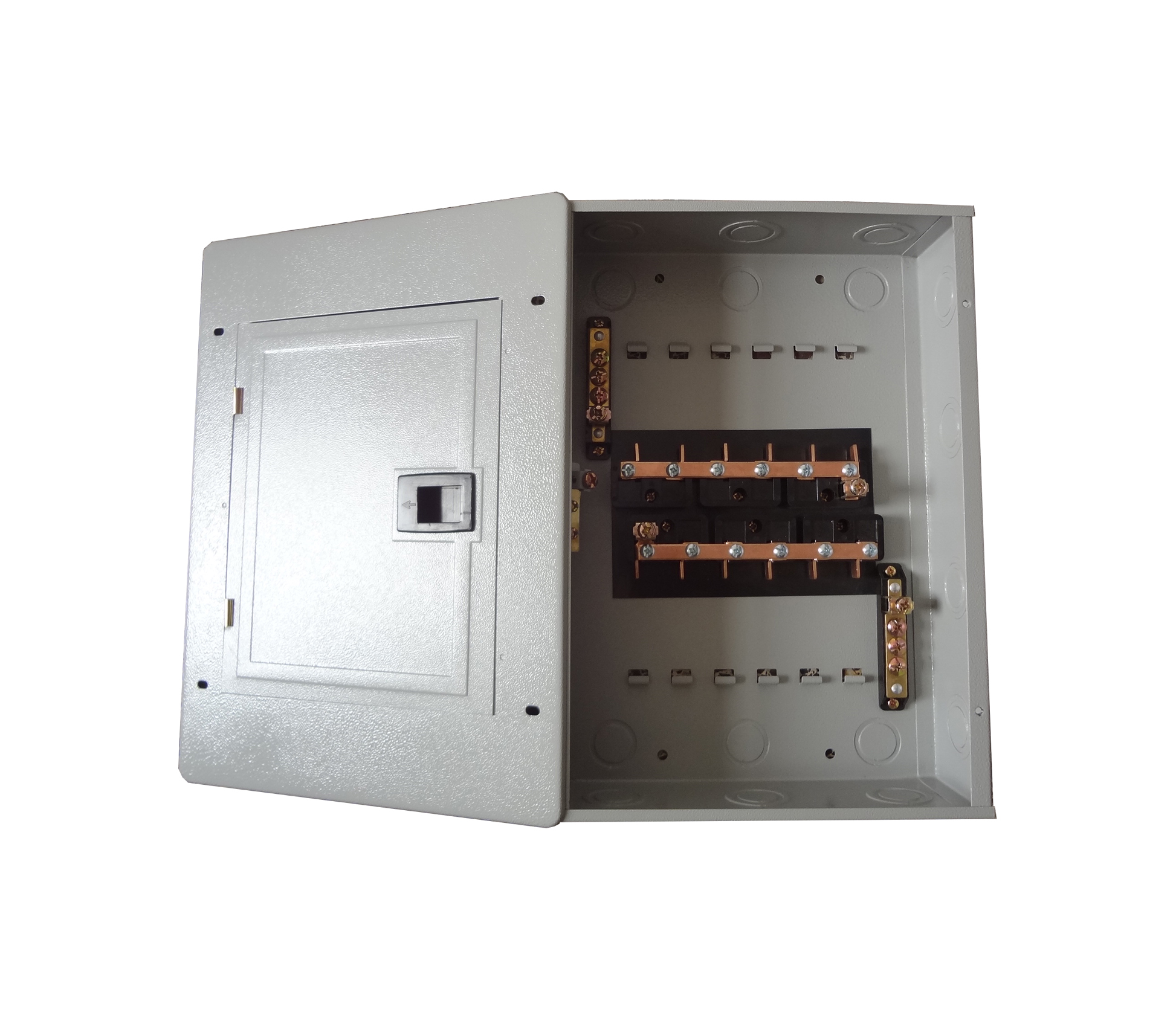

12-Way Electrical Distribution Box
This 12-way electrical distribution box is designed for North American electrical systems. It accommodates standard circuit breakers, providing a centralized point for distributing power throughout a building.
Technical Specifications
Product Overview
Reliable Power Distribution
The GTLS Series load centers are designed for safe and efficient electrical power distribution in residential, commercial, and light industrial environments. These units feature a robust steel construction with a durable polyester powder-coated finish, ensuring long-term reliability and corrosion resistance. The wider enclosure design facilitates easier wiring and improved heat dissipation, making it an ideal service entrance solution.
Technical Specifications
Rated Current
100 A
Rated Current
- Service Voltage
- 120/240 Vac
- Phase Configuration
- Single-phase, three-wire
- Breaker Compatibility
- GE type 1' THQL breakers
Design & Construction
Knockout Locations
- Top
- Bottom
- All sides
- Steel Sheet Thickness
- 0.5 - 1.2 mm
- Finish
- Matt-finish polyester powder coated
- Mounting Styles
- Flush MountedSurface Mounted
