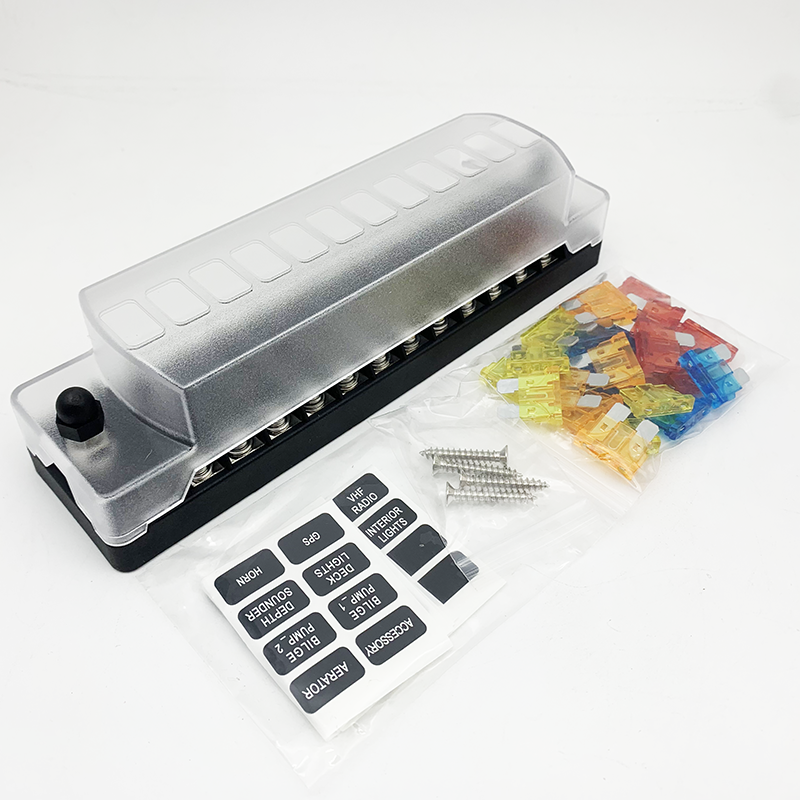

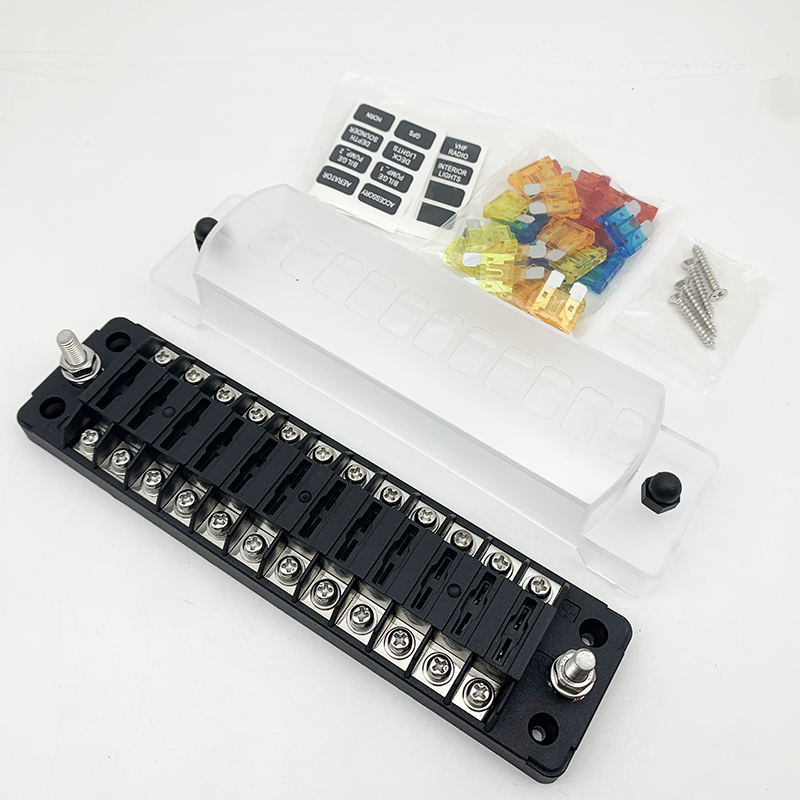

12-Way Blade Fuse Block with LED Indicators
This 12-way fuse block is designed for 12V and 32V systems. It features LED indicators for blown fuses, providing quick identification of circuit issues.
Technical Specifications
Overview
Professional 12-Way Circuit Protection

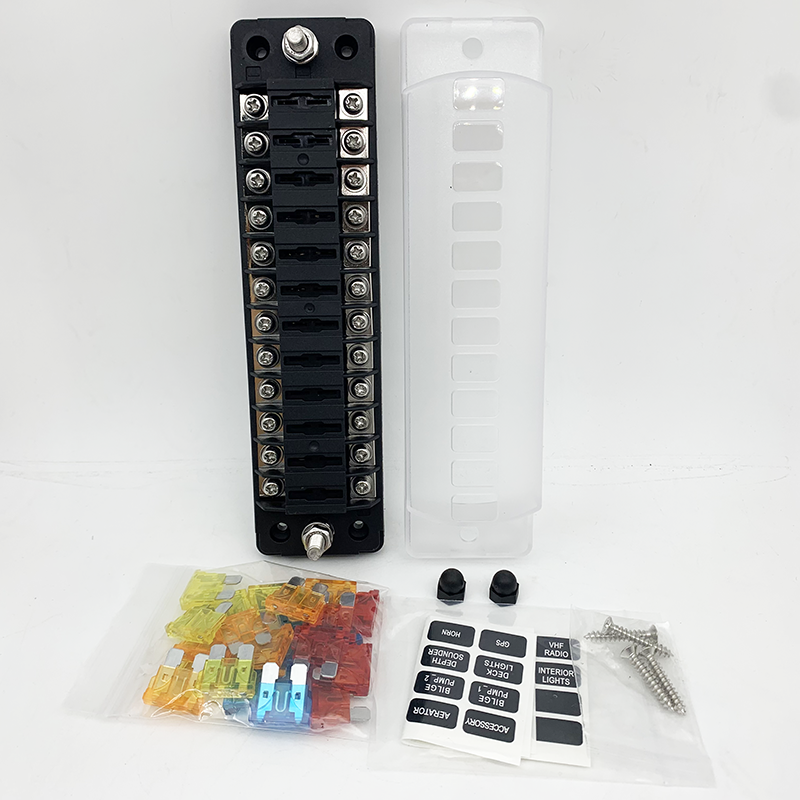

This 12-way blade fuse block is a robust solution for organizing and protecting electrical circuits in 12V and 32V DC systems. It features integrated red LED indicators that immediately illuminate when a fuse blows, significantly reducing troubleshooting time in demanding automotive or marine environments. Constructed with flame-retardant materials and a protective dust cover, it ensures long-term reliability and safety for high-current applications.
Electrical Ratings
Key Electrical Ratings
75 A
Max Total Input
20 A
Max Per Circuit
- Nominal Input Voltage
- 32 V
Wiring & Terminals
- Main Line Terminals
- M6 threaded studs (75A 32V DC max)
- Input Wire Size
- #4-6 AWG
- Single Line Terminals
- M4 threaded bolts (20A 32V DC max)
- Output Wire Size
- #12-16 AWG
Materials & Construction
Component Materials
| Component | Material |
|---|---|
| Base | PA66 / PBT Anti-fire material |

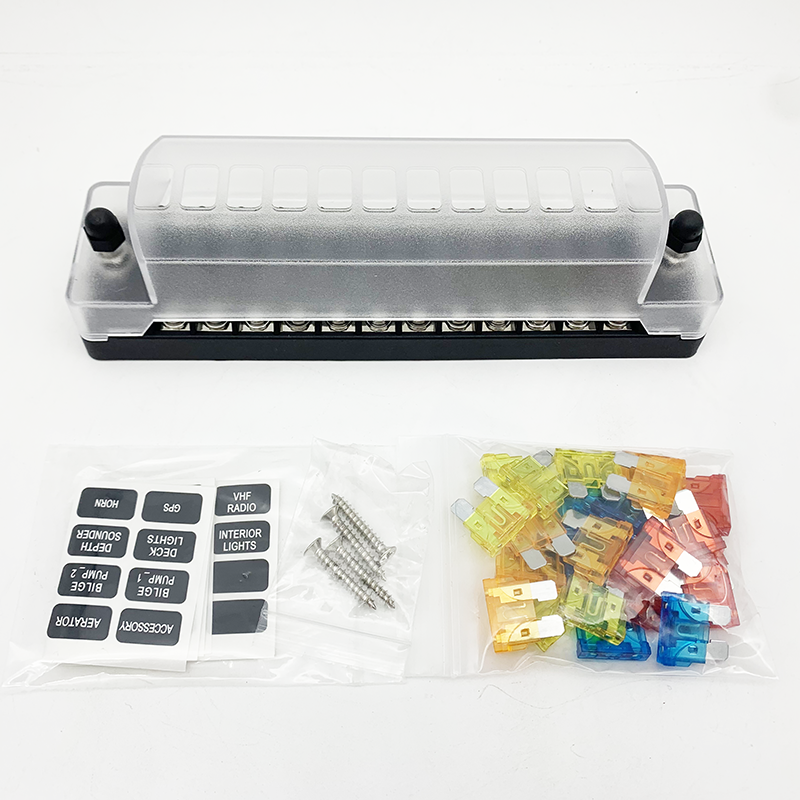

| Cover | PC (Polycarbonate) Dust Cover |
| Terminals | Nickel-plated Copper |
| Screws | Stainless Steel |
| Stickers | PP x 70 |
Compatibility
- Compatible Fuse Types
- ATOATCBlade Fuses (1A-20A)
Applications
Recommended Use Cases
- Vehicle and Automotive Systems
- Marine and Boat Electrical
- Car Audio and Navigation Systems
- LED Work Lights and Headlights
- Car Refrigerators and Vacuums
Physical Dimensions
Unit Dimensions
| Dimension | Value |
|---|---|
| Length | 195mm |
| Width | 50mm |
| Height | 51mm |
| Mounting Hole Spacing | 180mm |
Safety Features
Safety & Indicators
LED Blown Fuse IndicatorAnti-Fire MaterialDust-Proof Cover
