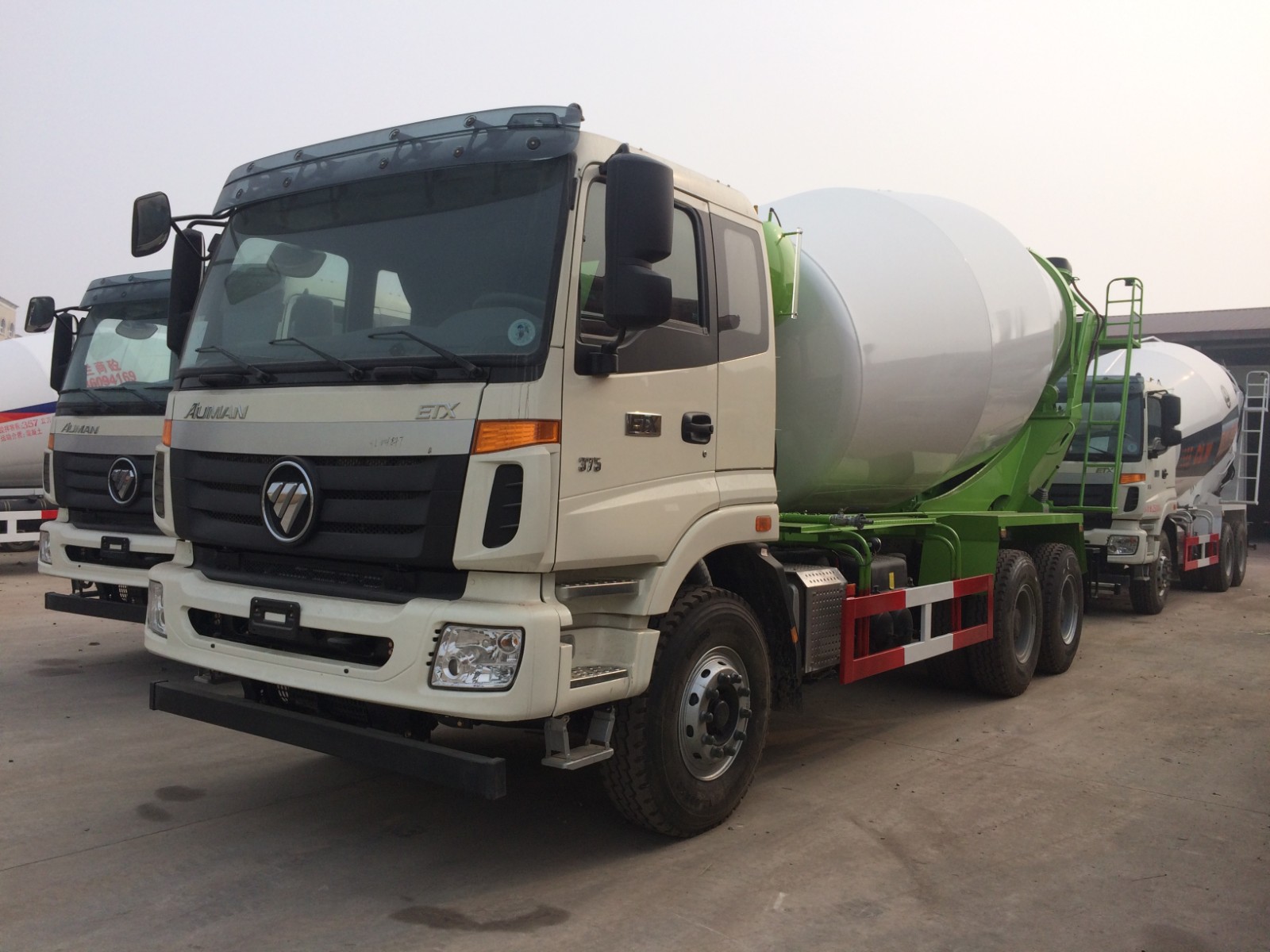

12 Cubic Meter Concrete Mixer Truck with 6x4 Drive
This concrete mixer truck is designed for transporting and mixing concrete on construction sites. It features a 6x4 drive and a 12 cubic meter capacity.
Technical Specifications
Overview
High-Efficiency Concrete Mixer
This heavy-duty concrete mixer truck is engineered for reliable performance in both short and long-distance construction transport. Featuring a robust 6x4 drive configuration and a 12 cubic meter mixing drum, it provides the stability and capacity required for medium to large-scale infrastructure projects. The vehicle is equipped with a high-performance engine and advanced hydraulic systems to ensure consistent mixing quality and operational longevity on demanding job sites.
Performance & Capacity
Drum Capacity
12 m³
Drum Capacity
59 %
Filling Rate
Operational Speeds
| Metric | Value |
|---|---|
| Input Speed | ≥2.8 m³/min |
| Output Speed | ≥1.2 m³/min |
| Max Driving Speed | 90 km/h |
Vehicle Dimensions & Weight
Dimensions & Loading
| Specification | Value |
|---|---|
| Overall Dimensions (LxWxH) | 9800 x 2490 x 3980 mm |
| Wheelbase | 4350 + 1350 mm |
| Tare Weight | 16000 kg |
| Payload | 8870 kg |
Technical Specifications
Engine Details
- 6-stroke direct injection
- 6-cylinder in-line
- Water cooling
- Turbo-charging and inter-cooling
- 336 Horsepower
- Euro II Emission Standard
Drum Construction
- Material: Q345 Carbon Steel
- Drum Thickness: 6mm
- Blade Thickness: 4mm
- Water Tank Volume: 400L
- Drivetrain Configuration
- 6x4 DriveLeft Hand Drive10 Forward Gears2 Reverse Gears
