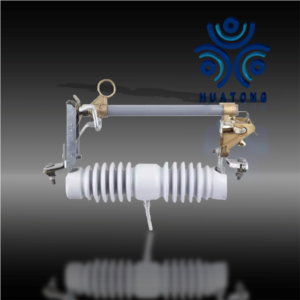

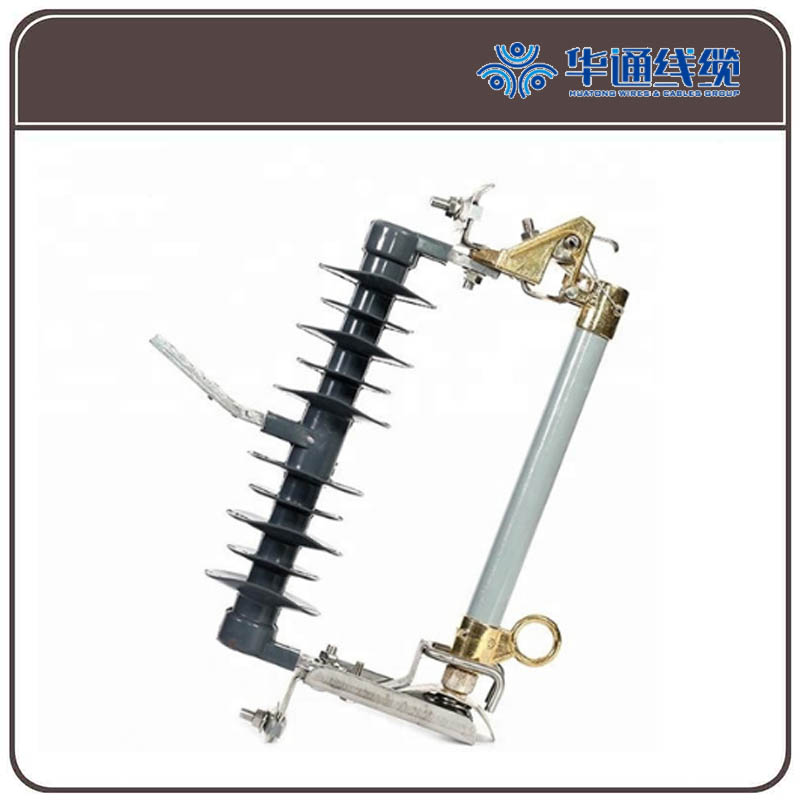

11kV Silicone Fuse Cutout
This 11kV silicone fuse cutout protects distribution transformers and lines from short circuits and overloads. It consists of insulator supports and a fuse tube with static contacts, suitable for outdoor applications.
Technical Specifications
Product Overview
High-Performance Silicone Fuse Cutout
This 11kV silicone fuse cutout is designed for reliable circuit protection in electrical power distribution networks. It efficiently safeguards transformers and distribution lines against overloads, short circuits, and switching currents. Featuring a durable silicone insulator and high-quality construction, this unit provides excellent dielectric strength and weather resistance for demanding outdoor applications.
Technical Specifications
Fuse Tube Composition
- Phenolic compound paper tube
- Epoxy glass
- Rated Voltage
- 11 kV
- Insulator Material
- Silicone
Application
- Primary Applications
- Distribution TransformersDistribution LinesOutdoor SubstationsFault Isolation
Construction
Core Components
- Insulator support
- Fuse tube
- Static contacts
- Moving contact
