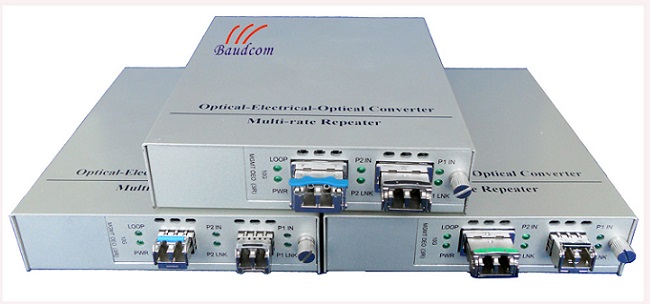

10G Fiber Optic Converter and Repeater
The 10G Fiber Converter operates independently of protocols, equipped with dual XFP or SFP+ ports. Functioning as a 10G fiber mode or fiber repeater, it extends 10G network distances.
Technical Specifications
Overview
High-Performance 10G Fiber Connectivity
The 10G Fiber Converter and Repeater is a protocol-independent solution designed to extend 10G network distances using dual XFP or SFP+ ports. It provides essential conversion between different wavelengths, single-mode and multi-mode fibers, or single-strand configurations. With integrated 3R signal regeneration (Re-amplify, Reshape, and Retime), it ensures high-quality, low-latency links for demanding telecommunications and data center environments.
Technical Performance
Transmission Speed
10 Gb/s
Nominal Speed
9.95 Gb/s
Min Range
11.35 Gb/s
Max Range
- Signal Regeneration (3R)
- Re-amplifyReshapeRetime
Connectivity & Compatibility
Supported Protocols
- 10Gbase-R
- 10Gbase-LRM
- SDH/SONET STM-64
- OC-192
- 10G Fiber Channel
- 10G Ethernet
Interface Ports
SFP+XFP
Wavelength Conversion
- 850nm
- 1310nm
- 1550nm
- CWDM
- DWDM (ITUT prescribed)
Management & Features
Diagnostic Features
- DMI function for SFP+/XFP
- Loopback test function
- PRBS Generator and checker
- Full State LED display
- Management Options
- Web SNMPConsoleIn-band Management
Physical Design
Installation Options
- Standalone (External Power)
- 2U Rack Mount (16 Slots)
- Plug-in Card
Operational Features
- Yes
- Yes
- Yes
Application Areas
Target Applications
Telecommunication RoomR&D LaboratoryData Center10Gbase-LAN10Gbase-WAN
