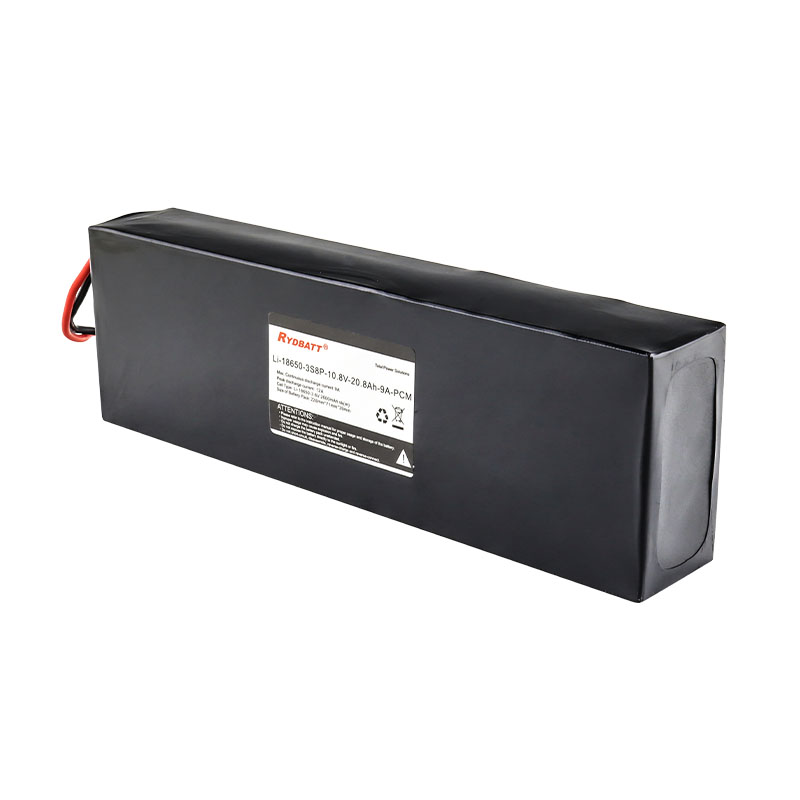

10.8V 20.8Ah Lithium-Ion Battery Pack for Electric Bicycles
This 10.8V lithium-ion battery pack is designed for electric bicycles. It has a 20.8Ah capacity and provides a maximum continuous discharge current of 9A.
Technical Specifications
Overview
High-Capacity 10.8V E-Bike Battery Pack
This high-capacity lithium-ion battery pack is engineered for reliable performance in electric bicycle applications. Featuring a 3S8P configuration with 20.8Ah capacity, it provides consistent power output and long-lasting energy storage. Designed with safety and durability in mind, this pack includes integrated protection circuitry and robust construction for seamless integration into various e-bike systems.
Electrical Specifications
Charging Currents
2 A
Standard
5 A
Quick
- Nominal Voltage
- 10.8 V
- Nominal Capacity
- 20.8 Ah
- Max. Charging Voltage
- 12.6 V
- Max. Continuous Discharge Current
- 9 A
Physical & Operational
- Dimensions (LxWxH)
- 256 x 68 x 41 mm
- Product Weight
- 1300 g
- Operating Temperature
- 0~45°C (Charging), -20~60°C (Discharging)
- Storage Temperature
- -20~45°C
Technical Details
- Configuration
- 3S8P
- Cell Type
- 18650
- Cycle Life
- 80% capacity after 500 cycles at 0.2C discharge
- Executive Standard
- GB/T36972-2018
- Customization
- OEMODM
