Technical Specifications
Product Overview
High-Performance DC Protection
This 1000V DC cylindrical fuse holder is specifically engineered for solar photovoltaic systems, providing essential overcurrent and short-circuit protection. Designed to accommodate 10x38mm fuse links, it ensures the safety of sensitive electronic components and solar panels in low-voltage, high-current environments. Its robust construction and DIN rail mounting compatibility make it a reliable choice for professional B2B solar installations.
Electrical Performance
Key Electrical Ratings
1,000 V DC
Rated Voltage
32 A
Max Rated Current
33 kA
Breaking Capacity
Operating Class
gPVgG
Technical Specifications
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Compatible Fuse Size
- 10 x 38 mm
Installation & Design
IP Rating
IP20
- Installation Method
- DIN rail mounting guide
- Connecting Lead Range
- 0.75 - 25 mm²
Compliance & Standards
- International Standards
- IEC 60269-1IEC 60269-6IEC 60269-2GB/T 13539.2CE Certified
Product Variants
Configuration Options

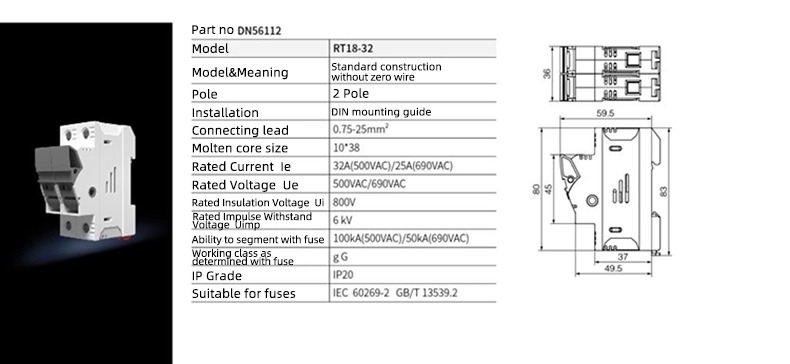

| Pole Configuration | Zero Line Position | Max Voltage |
|---|---|---|

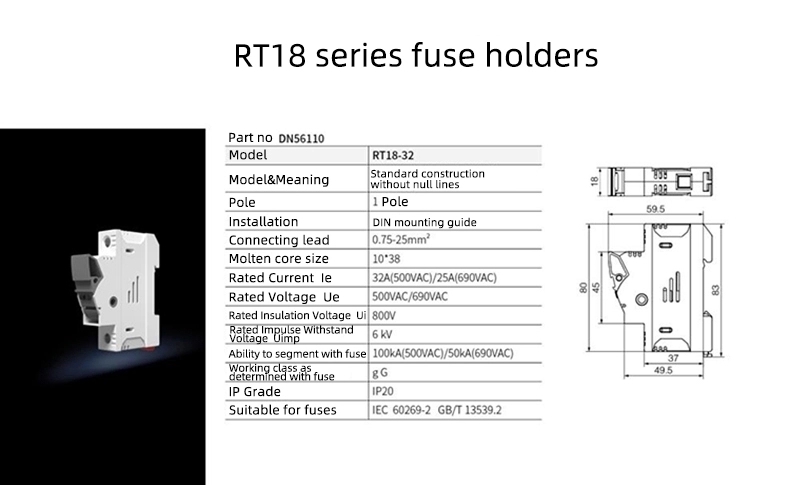

| 1 Pole | None | 1000V DC / 690V AC |

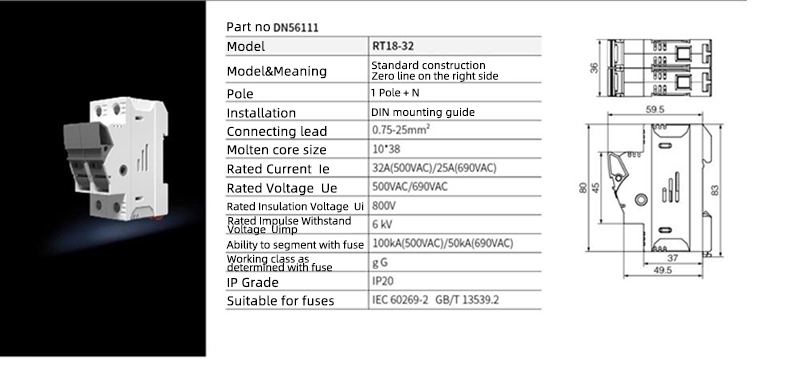

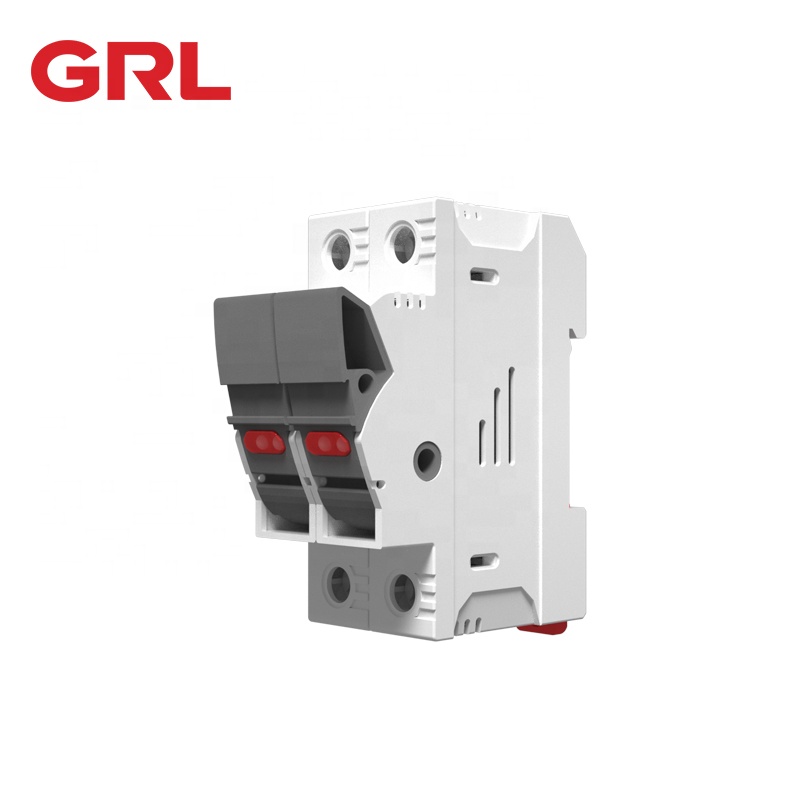

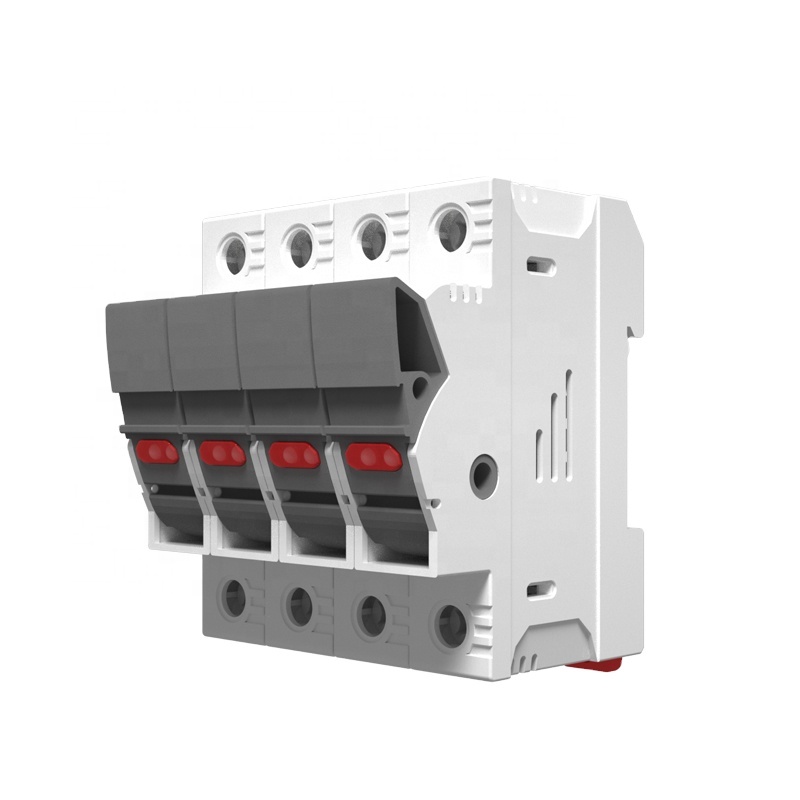

| 1 Pole + N | Right Side | 690V AC |
| 2 Pole | None | 690V AC |
| 3 Pole + N | Right Side | 690V AC |
