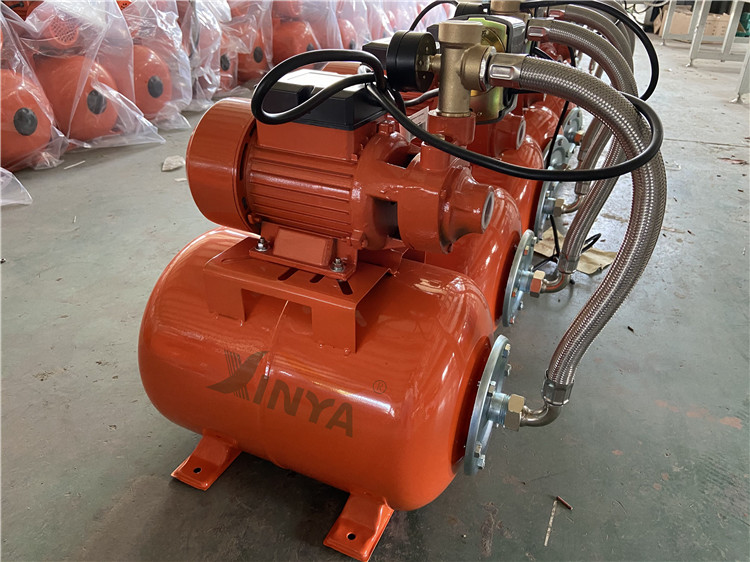

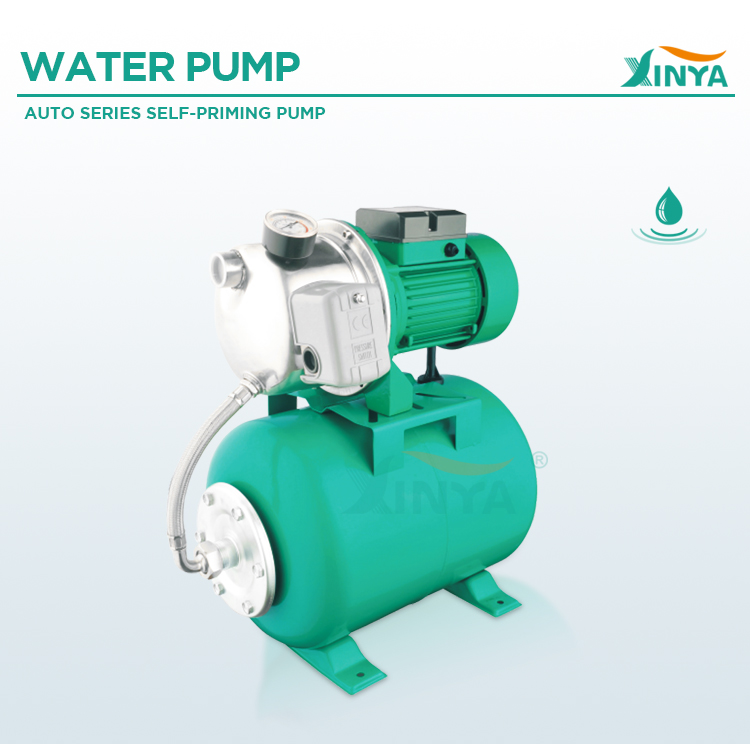

0.5 HP Self-Priming Aluminum Wire Water Pump
This automatic booster system includes a water pump, membrane tank, pressure gauge, and pressure switch. It provides suitable mains water pressure for domestic appliances and industrial applications, ensuring sufficient water supply.
Technical Specifications
Overview
High-Efficiency Self-Priming Booster System
This automatic booster system integrates a high-performance water pump with a membrane tank, pressure gauge, and pressure switch to maintain consistent water pressure for domestic and industrial needs. Featuring a 0.5 HP motor with aluminum wire construction, it is designed for reliable water transfer and automated operation. The system includes a pre-filled non-toxic rubber membrane pressure vessel and is built to ensure a steady supply for various outlets.
Technical Specifications
Power Output
0.5 HP
Horsepower
370 W
Power
Performance Capabilities
35 L/min
Max Flow Rate
32 m
Max Head
Electrical Requirements
- 220V/50HZ
- 110V/60HZ
- Electric drive
Construction & Materials
- Material Composition
- Aluminum Pump BodyAluminum ImpellerNon-toxic Rubber Membrane
Operating Conditions
Operating Limits
| Parameter | Limit |
|---|---|
| Max Fluid Temperature | 40°C |
| Max Environment Temperature | 40°C |
| Max Working Pressure | 8 bar |
General Information
General Specifications
- Outlet Diameter: 1"
- Protection Degree: IP43
- Gross Weight: 12kg
- Conveying Medium: Clean water
