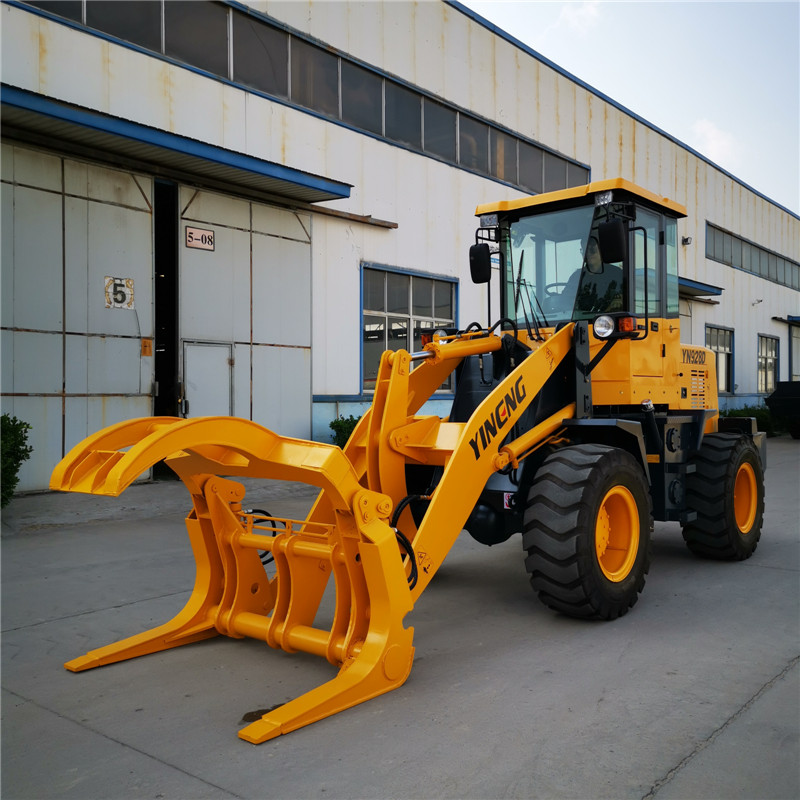

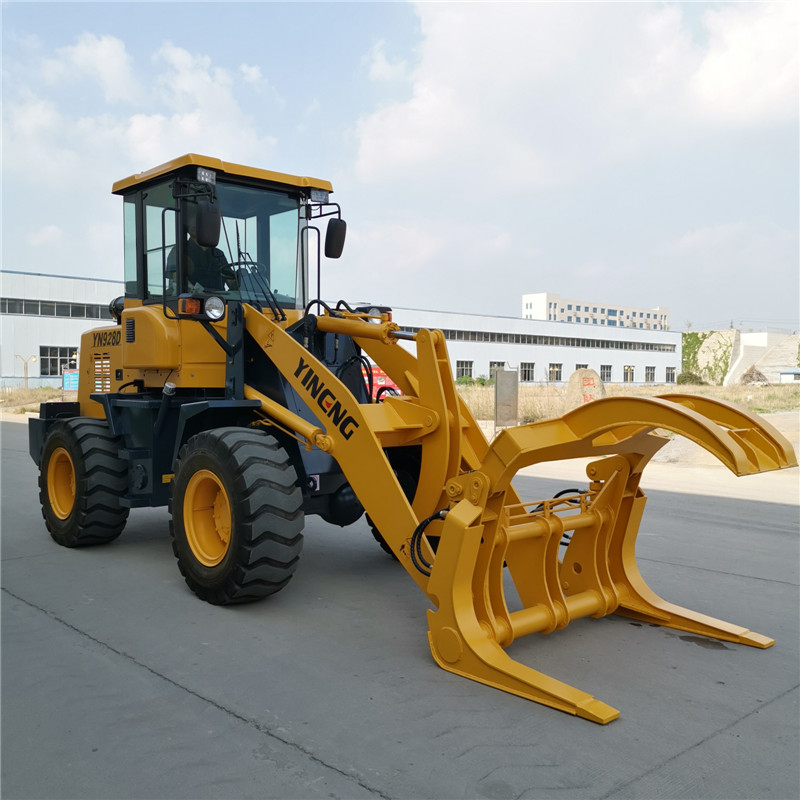

YN928D Log Handling Grapple
The YN928D log grapple is designed for efficient log handling and material management. Featuring a powerful hydraulic system, it ensures precise and secure gripping of logs, enhancing productivity and safety.
Technical Specifications
Overview
Robust Log Handling Performance
The YN928D Log Grapple is a heavy-duty construction machine engineered for efficient log handling and material management. Featuring a powerful hydraulic system, it ensures precise, secure gripping of logs across diverse terrains. Built for reliability in demanding environments, this machine combines articulated steering with an ergonomic cabin to enhance operator productivity and safety in forestry and agricultural operations.
Performance Metrics
- Rated Load
- 1800 kg
- Rated Capacity
- 0.8 m3
- Max. Tractive Force
- 41 KN
- Max. Breakout Force
- 27 KN
- Max. Grade Ability
- 25 °
Operational Dimensions
- Overall Weight
- 5000 kg
- Max. Dumping Height
- 3080 mm
- Max. Dumping Reach
- 880 mm
- Overall Dimensions (LxWxH)
- 5700 x 2100 x 2870 mm
Key Features
- Primary Advantages
- Articulated SteeringHydraulic GrippingHeavy-Duty TiresErgonomic CabinReinforced Frame
