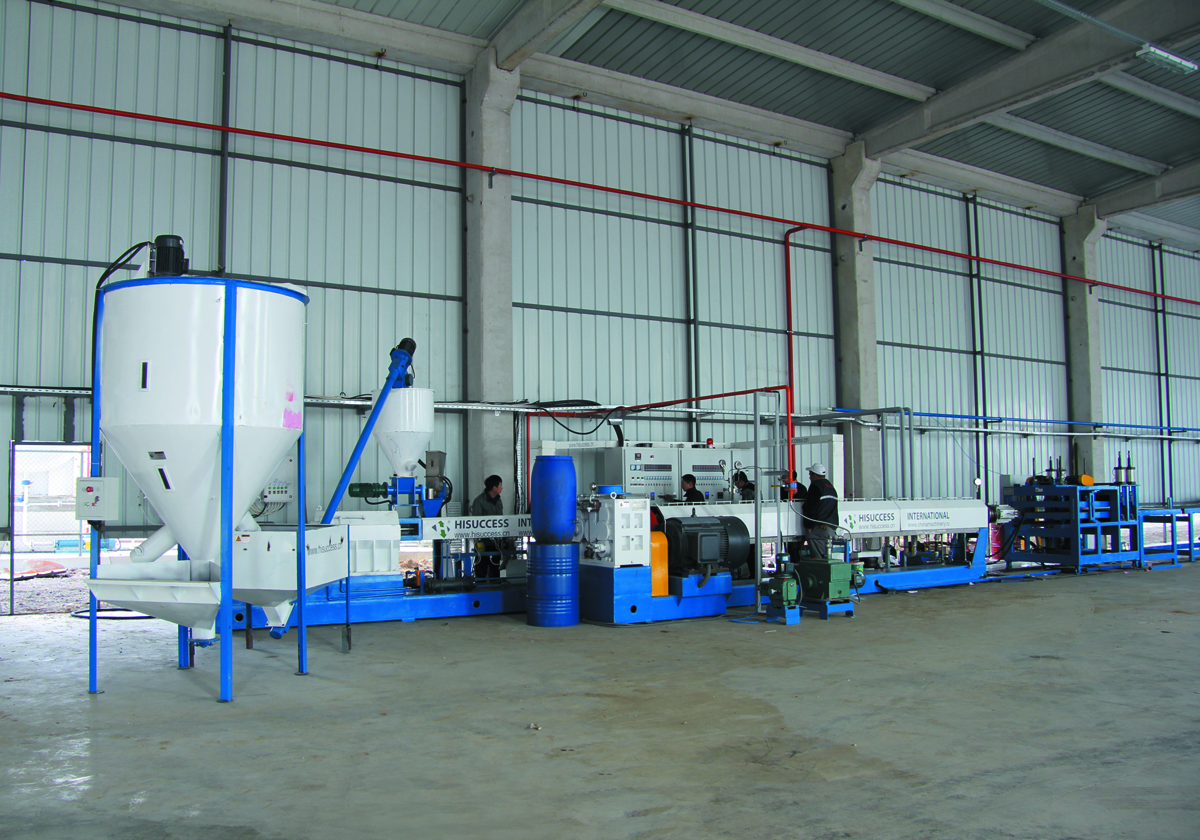

XPS Foam Board Production Line
This XPS foam board production line creates extruded polystyrene insulation boards with a closed-cell structure. The production line improves insulation, moisture resistance, compressive strength, and durability.
Technical Specifications
Product Overview
High-Efficiency XPS Production
This production line is a comprehensive industrial system designed for the continuous manufacturing of high-quality extruded polystyrene (XPS) insulation boards. It utilizes an advanced dual-extrusion process to create boards with superior thermal insulation, moisture resistance, and compressive strength. Engineered for high-volume output, the system features automated cutting, shaping, and material handling to ensure consistent density and precise dimensional accuracy for construction applications.
Key Features
- Core Advantages
- High Insulation EfficiencyMoisture-ProofHigh Compressive StrengthDurable ConstructionCE Certified
System Configuration
Production Line Components
- Feeding System
- Primary and Secondary Extruders
- Hydraulic Mesh Exchanger
- Mould and Calibrator
- Dual Haul-off Units
- Longitudinal and Cross Cutters
- Automated Controlling System
- Packaging System
Performance Metrics
Output Capacity
300 kg/h
Capacity (HIM-X-250)
450 kg/h
Capacity (HIM-X-500)
550 kg/h
Capacity (HIM-X-750)
Technical Specifications
Model Specifications
| Specification | HIM-X-250 | HIM-X-500 | HIM-X-750 |
|---|---|---|---|
| Product Width (mm) | 600 | 600 | 600 |
| Product Thickness (mm) | 20-100 | 20-100 | 20-100 |
| Density (kg/m³) | 33-39 | 33-39 | 33-39 |
