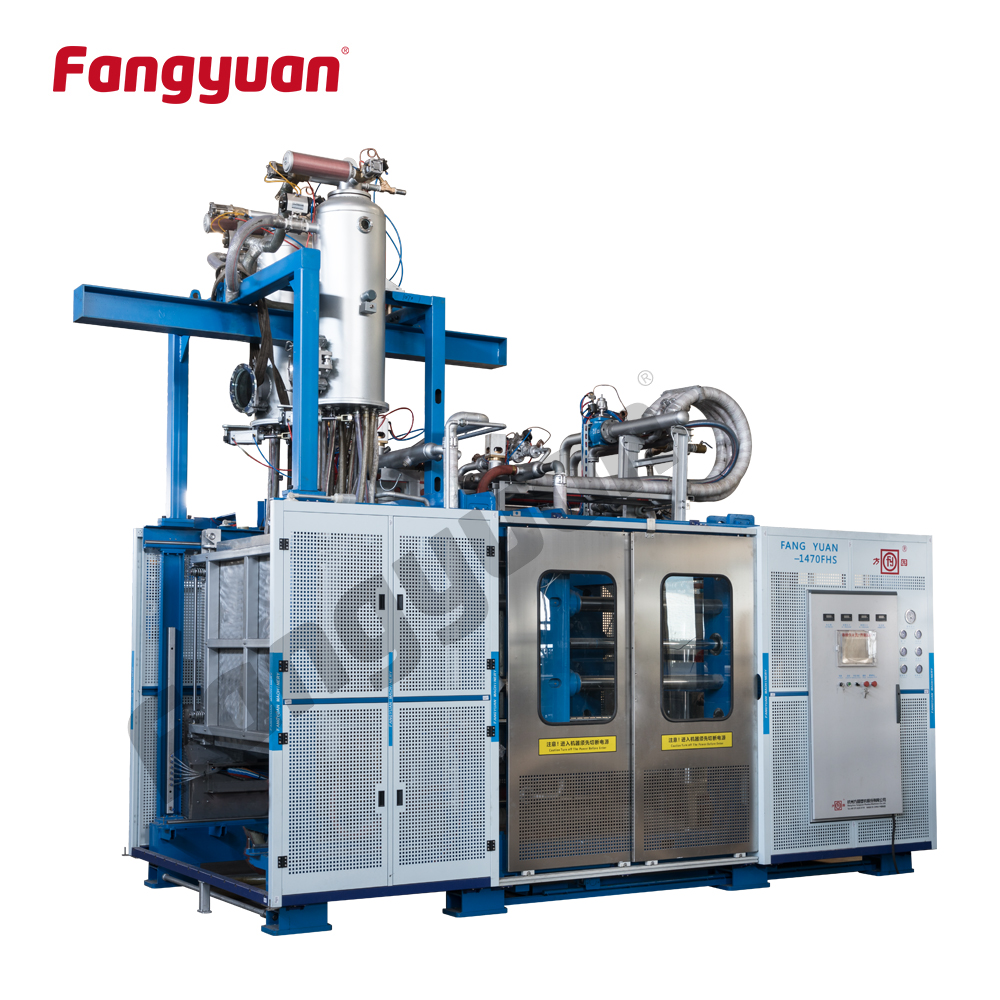

EPS Thermocol Plate Making Machine
This machine is designed for efficient production of styrofoam plates. It features a fully automated system for fast mold changes, enhancing productivity and reducing downtime.
Technical Specifications
Overview
High-Efficiency EPS Plate Production
This fully automatic EPS thermocol plate making machine is engineered for high-volume, precision manufacturing with a focus on energy efficiency and rapid changeover times. It features an advanced heat insulation system that reduces steam consumption by 30% and an integrated energy recycling system that cuts vacuum power usage by over 50%. Designed for reliability and safety, the machine utilizes high-strength steel construction and a triple-interlocking safety system to ensure consistent, high-quality production of EPS foam products.
Mechanical Construction
Guide Rod Specifications
100 mm
Diameter
4 pcs
Quantity
Material & Build
- 45# Steel guide rods with high-frequency quenching
- 0.04-0.06mm Hard chromium layer thickness
- High-strength steel plate templates
- Gas shielding welding with high-temperature annealing
Steam & Heating System
- Steam Efficiency
- 30 % savings
- Steam Valve Control Accuracy
- ±0.2 bar
Vacuum & Cooling
- Vacuum Power Reduction
- 50 %
- Product Moisture Content
- ≤ 7%
- High Temperature Demoulding
- 75 °C
Operational Features
Hopper Configuration
| Feature | Specification |
|---|---|
| Type | Vertical Double Hopper |
| Discharge Holes | 18 per hopper |
| Connector Size | DN25 |
- Mold Change Time
- 30 minutes
Control System
- Control System Capabilities
- PLC ControlledReal-time MonitoringFault Alarm SystemNetwork Management ReadyTriple Interlocking Safety
