Wire Straightening and Cutting Machine (12-16mm)
This machine is designed for straightening and cutting steel wire with diameters ranging from 12mm to 16mm. It features an automated system with programmable logic control (PLC) for consistent and accurate operation.
Technical Specifications
Product Overview
Industrial Wire Processing Solution

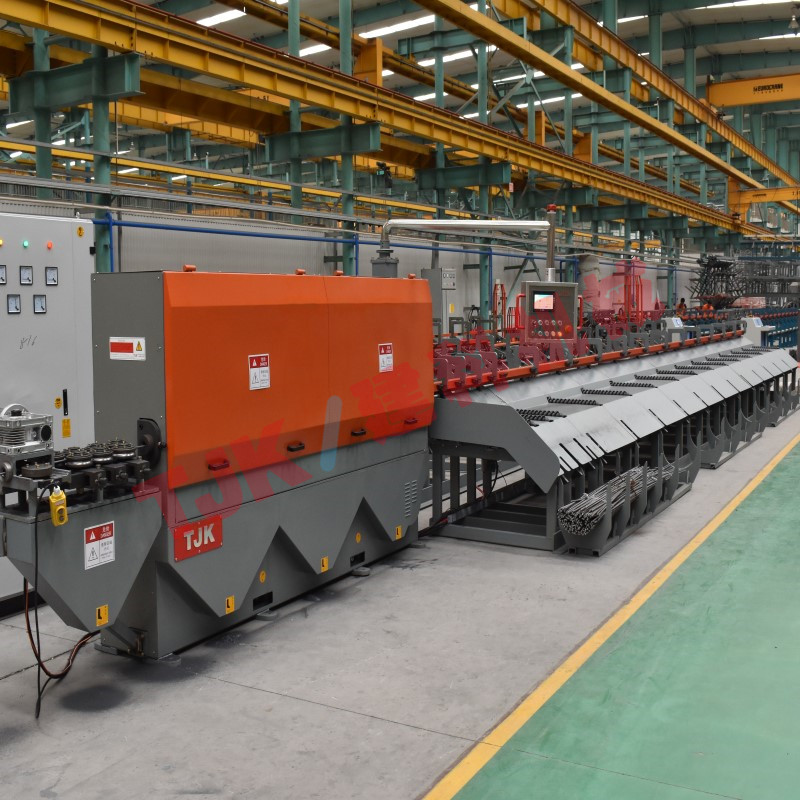

The GT12-16 is a high-performance wire straightening and cutting machine engineered for precision processing of steel wire with diameters from 12mm to 16mm. This robust system utilizes programmable logic control (PLC) to ensure consistent, automated operation during straightening, cutting, and bundling. Designed for demanding construction and precast concrete environments, it features a multi-roller straightening unit and gear-driven transmission for maximum efficiency.
Technical Specifications
Wire Diameter Range
12 mm
Min Diameter
16 mm
Max Diameter
System Components
| Component | Function |
|---|---|

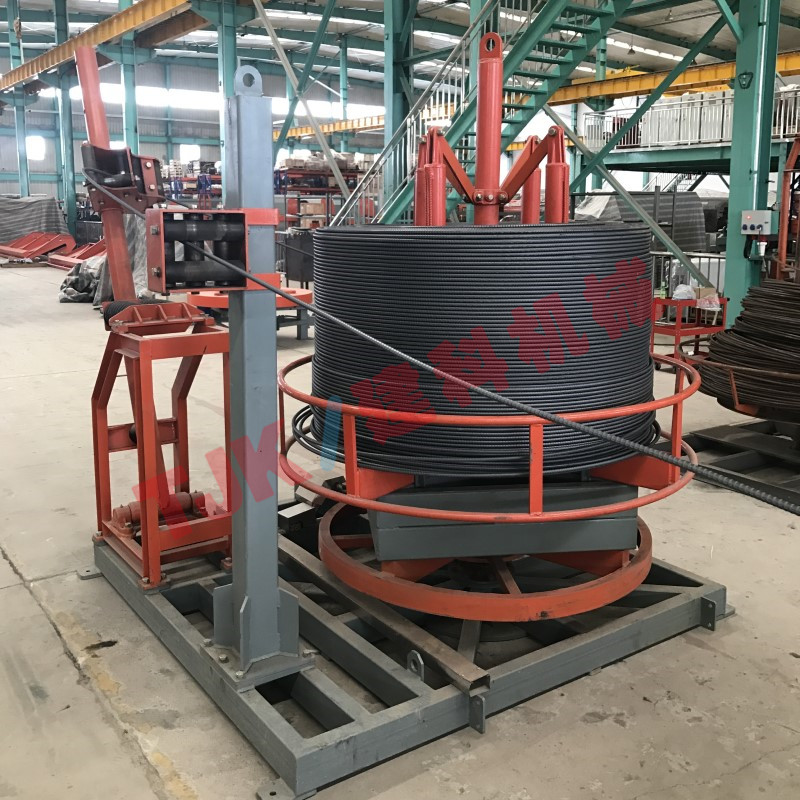

| Wire Feeding System | Material Input |
| Straightening Unit | Multi-roller alignment |
| Length Measuring | Precision control |
| Cutting Unit | High-speed cut |
- Key Features
- PLC Automated SystemMulti-Roller StraighteningGear-Driven TransmissionHigh-Speed CuttingAutomated Collection
Safety & Compliance
Safety Equipment
- Emergency Stop Switch
- Dangerous Area Signage
- Warning Labels
