Wire-on-Tube Refrigeration Condenser

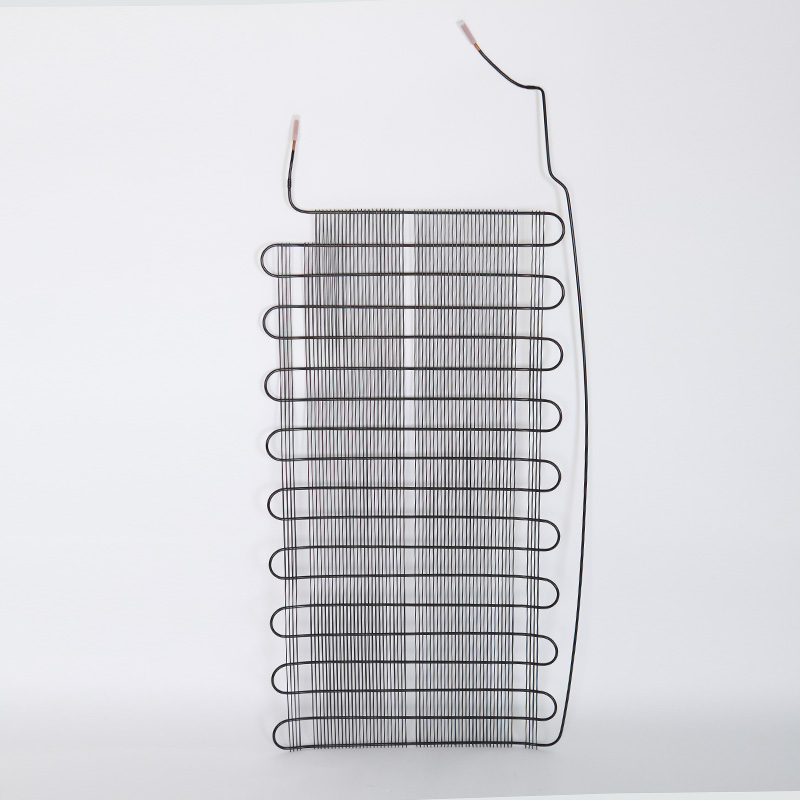

This wire-on-tube (WOT) condenser is a key component in refrigeration systems, facilitating efficient heat dissipation. It features parallel tubes connected by vertical wires to maximize the surface area for heat transfer.
Technical Specifications
Product Overview
High-Efficiency Wire-on-Tube Condenser
This wire-on-tube refrigeration condenser is engineered for optimal heat dissipation in various cooling systems. Utilizing high-quality rolling welded steel tubes and low carbon steel wire, the unit ensures robust thermal performance and long-term durability. It is available in flat, bended, or spiral configurations to suit diverse mounting requirements at the back or bottom of appliances.
Technical Specifications
- Tube Diameter Range
- 4.76mm to 6.35mm
- Tube Wall Thickness
- 0.71 mm
- Steel Wire Diameter
- 1.1mm - 1.6mm
- Minimum Wire Pitch
- 5 mm
Materials and Construction
Materials Used
- Rolling welded steel tube
- Low carbon steel wire
- SPCC Steel plate bracket
- Bracket Thickness
- 0.6mm - 2.0mm
Configuration and Customization
- Available Structures
- Flat (Back)Bended/Spiral (Bottom)Wrapped
- Custom Design Capability
- Yes
