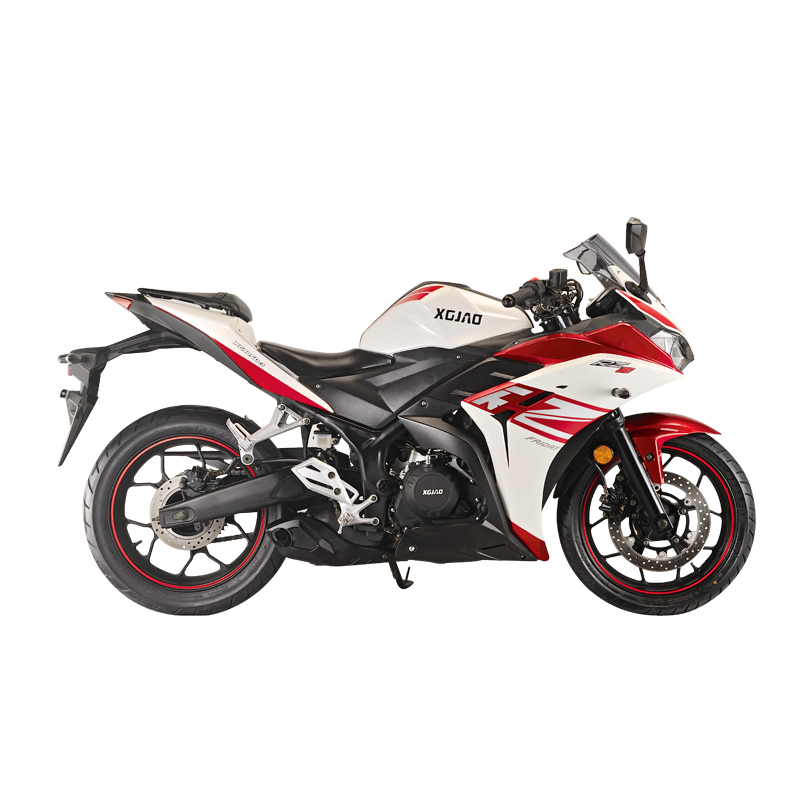

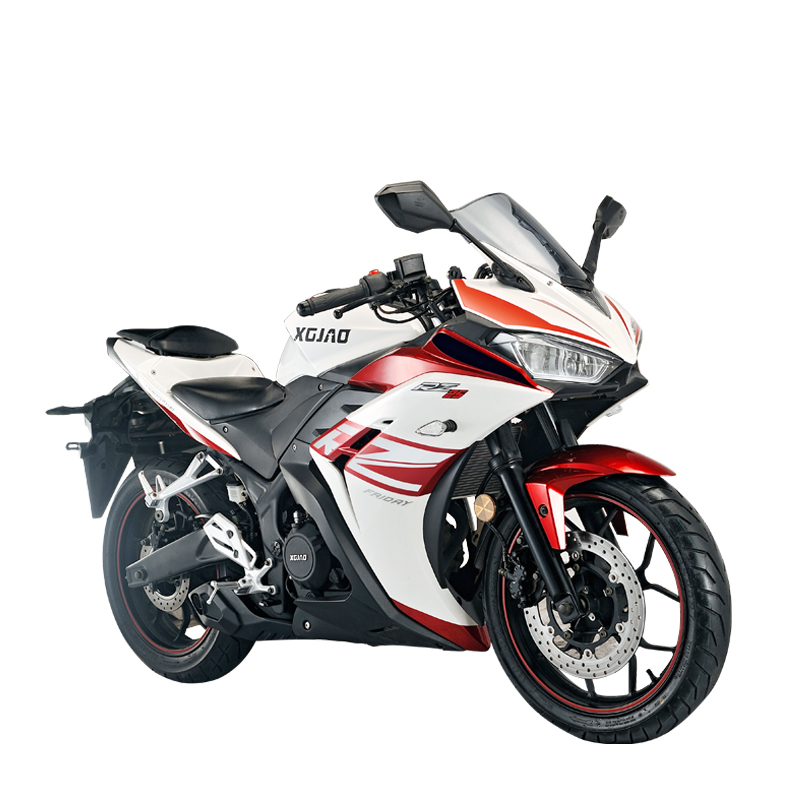

White and Red Sportbike with Aerodynamic Fairing
This sportbike features a streamlined design with a prominent front fairing and a sporty riding posture. The motorcycle is equipped with a liquid-cooled engine, disc brakes, and multi-link rear suspension.
Technical Specifications
Overview
High-Performance Sportbike
This aerodynamic sportbike features a liquid-cooled 249.3cc engine paired with a 6-speed international gearshift system, delivering a maximum speed of at least 140 km/h. Designed for both street and track performance, it incorporates a balanced chassis with a 1380mm wheelbase and a wet multi-plate clutch. The bike offers professional-grade handling through its upside-down front hydraulic damping suspension and reliable disc braking system.
Performance Metrics
Key Performance Metrics
249.3 ml
Displacement
23.5 kW
Max Power
140 km/h
Top Speed
150 kg
Load Capacity
Engine and Drivetrain
Engine Specifications
| Attribute | Value |
|---|---|
| Engine Type | DOHC, 4-stroke, 2-cylinder |
| Cooling | Water cooling |
| Ignition | Bosch EFI |
| Compression Ratio | 11.6:1 |
| Max Torque | 21.85 N.m @ 9500 rpm |
Dimensions and Chassis
Dimensions
- Dimensions: 2000 x 780 x 1100 mm
- Wheelbase: 1380 mm
- Seat Height: 770 mm
- Ground Clearance: 150 mm
- Net Weight: 152 kg
Logistics
- Container Loading (CBU)
- 20FT: 20 pcs40FT: 48 pcs40HQ: 72 pcs
