Water Vapor Transmission Rate Tester
The water vapor transmission rate tester measures the WVTR of packaging materials. It is used in the food, pharmaceutical, and flexible packaging industries for quality control.
Technical Specifications
Overview
Precision Water Vapor Transmission Rate Testing

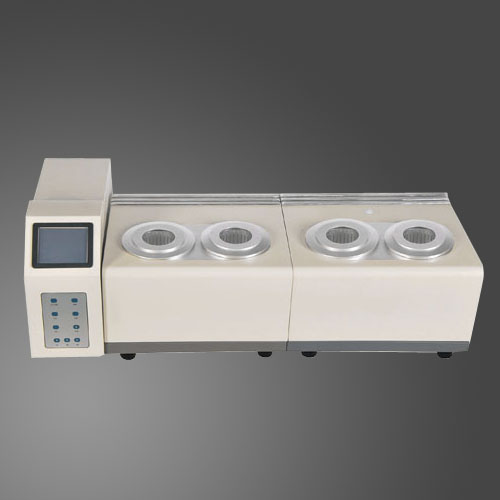

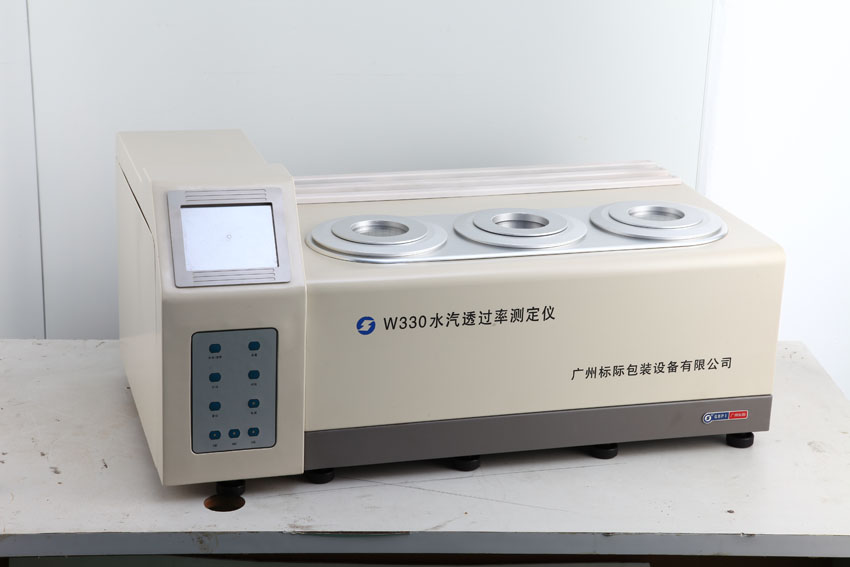

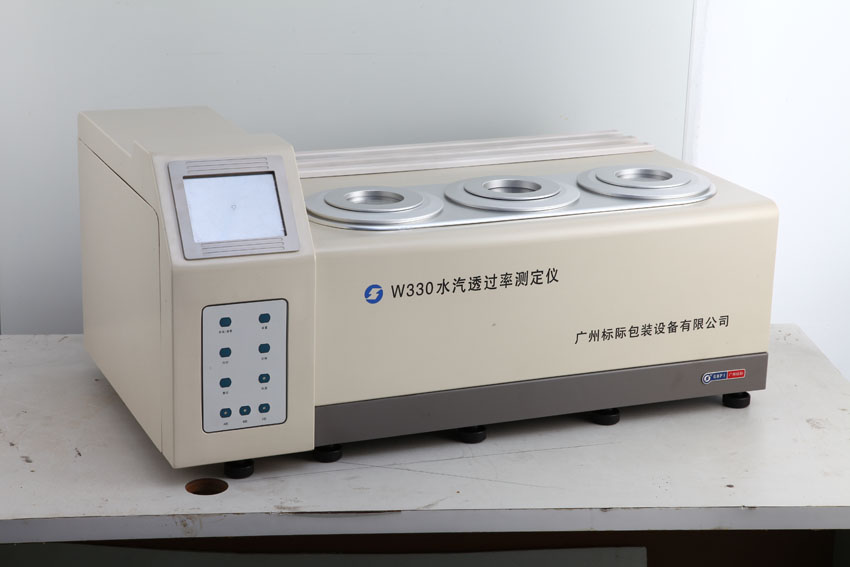

This high-precision instrument is designed to accurately measure the water vapor transmission rate (WVTR) of various packaging materials, including plastic films, barrier materials, sheets, and metal aluminum. Utilizing the weight reduction method, it provides consistent and reliable results under regulated temperature and humidity conditions. It is an essential tool for quality control and research in the food, pharmaceutical, and flexible packaging industries.
Technical Specifications
- Measurement Unit
- g/m²·24h
- Testing Principle
- Weight reduction method
- Supported Standards
- GB 1037-1988GB/T 16928-1997ASTM E96-00e1ASTM D1653-03TAPPI T464ISO 2528
Key Features
Instrument Capabilities
- Independent temperature and humidity control per chamber
- High-resolution sensor system for humidity detection
- Integrated control panel with digital display
- Data logging and reporting capabilities
- Multiple testing chambers for simultaneous analysis
Applications
Industry Applications
Food IndustryPharmaceutical IndustryFlexible PackagingTextilesResearch & Development
Compatible Materials
- Plastic films
- Barrier materials
- PVC sheets
- Metal aluminum
- Textiles
