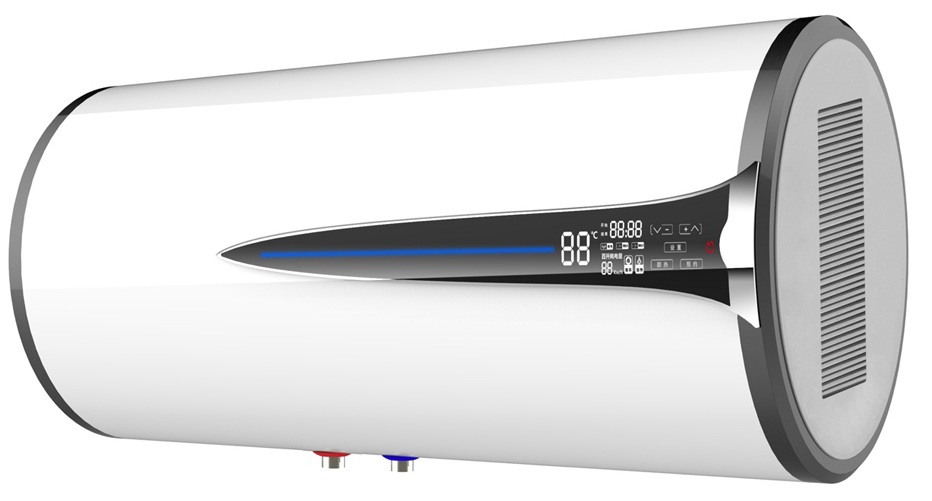

Wall Mounted Heat Pump Water Heater
This wall-mounted heat pump water heater is designed for efficient and reliable heating and cooling. It features a digital display for easy monitoring and control of temperature settings.
Technical Specifications
Overview
Efficient Residential Hot Water Solutions
This wall-mounted heat pump water heater offers a versatile and energy-efficient solution for domestic hot water production. Available in volumes from 60L to 100L, it provides reliable performance with a maximum outlet temperature of up to 75°C. The system is engineered for quiet operation, ensuring minimal disruption in residential environments while maintaining high heating efficiency.
Performance
Key Performance Metrics
3.55
COP
40 dB
Noise Level
75 °C
Max Water Temperature

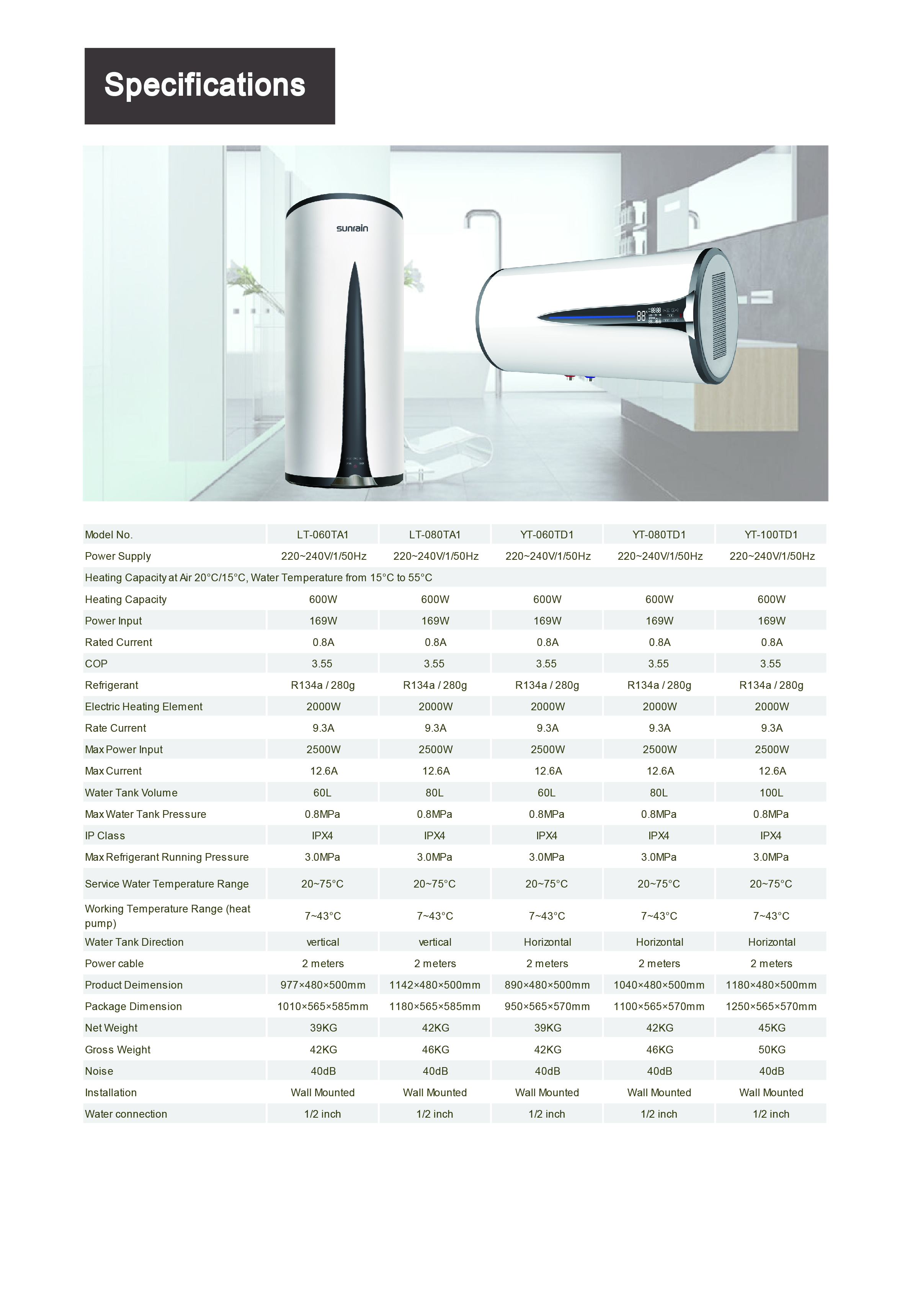

Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Power Supply | 220~240V/1/50Hz |
| Heating Capacity | 600W |
| Electric Heating Element | 2000W |
| Rated Current | 0.8A |
| Max Current | 12.6A |
Operational Limits
- Max Water Tank Pressure: 0.8 MPa
- Max Refrigerant Running Pressure: 3.0 MPa
- Working Temperature Range: 7~43°C
- IP Protection Class: IPX4
Physical Features
- Model Configurations
- LT-060TA1LT-080TA1YT-060TD1YT-080TD1YT-100TD1
