Technical Specifications
Product Overview

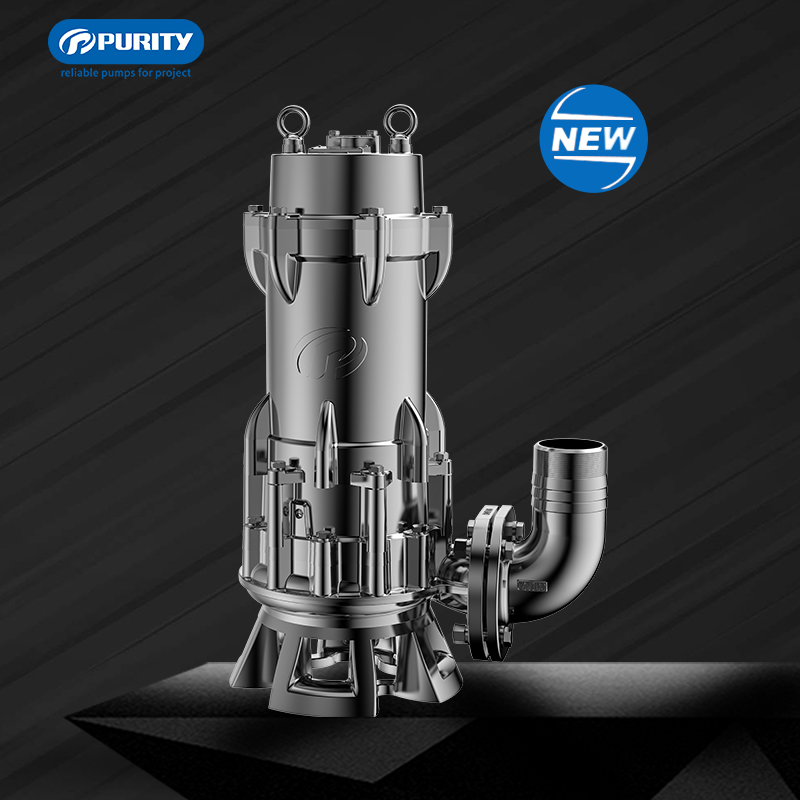

Submersible Sewage Pump System
The Vortex Cutting Submersible Sewage Pump is a high-performance solution engineered for effective wastewater management and industrial drainage. Designed with a robust cast iron casing and a specialized cutting mechanism, this pump excels at processing solids and fibrous materials, preventing clogs in demanding environments. With high-efficiency motor technology and corrosion-resistant components, it ensures long-lasting, reliable operation in sewers, tunnels, and underground facilities.
Technical Specifications
Protection Class
IP68Class F
Key Materials
- Cast Iron HT250 (Case)
- Stainless Steel AISI 304 or Brass (Impeller)
- Stainless Steel AISI 304 or Galvanized Iron (Shaft)
- Motor Type
- YE3 High Efficient
- Impeller Hardness
- 48 HR
Operating Limits
Operating Metrics
40 °C
Max Liquid Temp
10 m
Max Immersion Depth
- Solids Passage Range
- 25mm to 65mm
- Capacity Range
- 80-5000 US GPM
