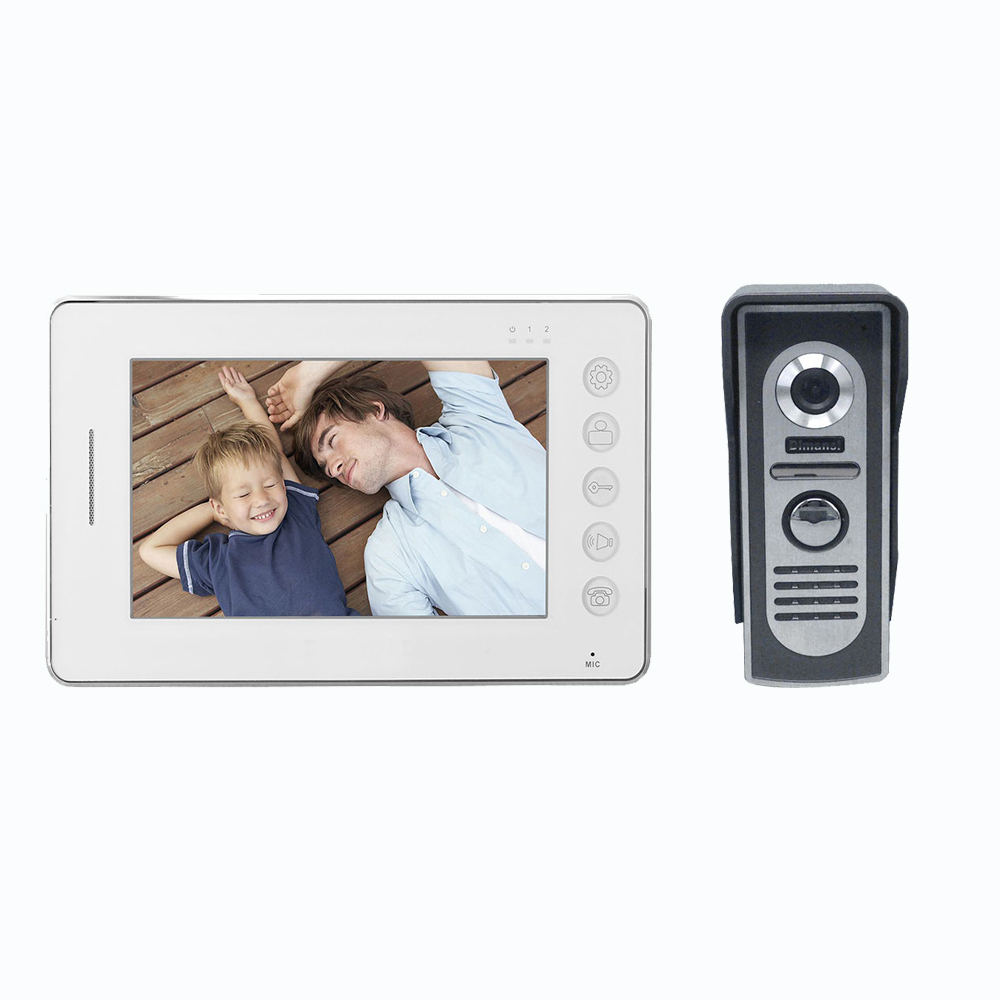

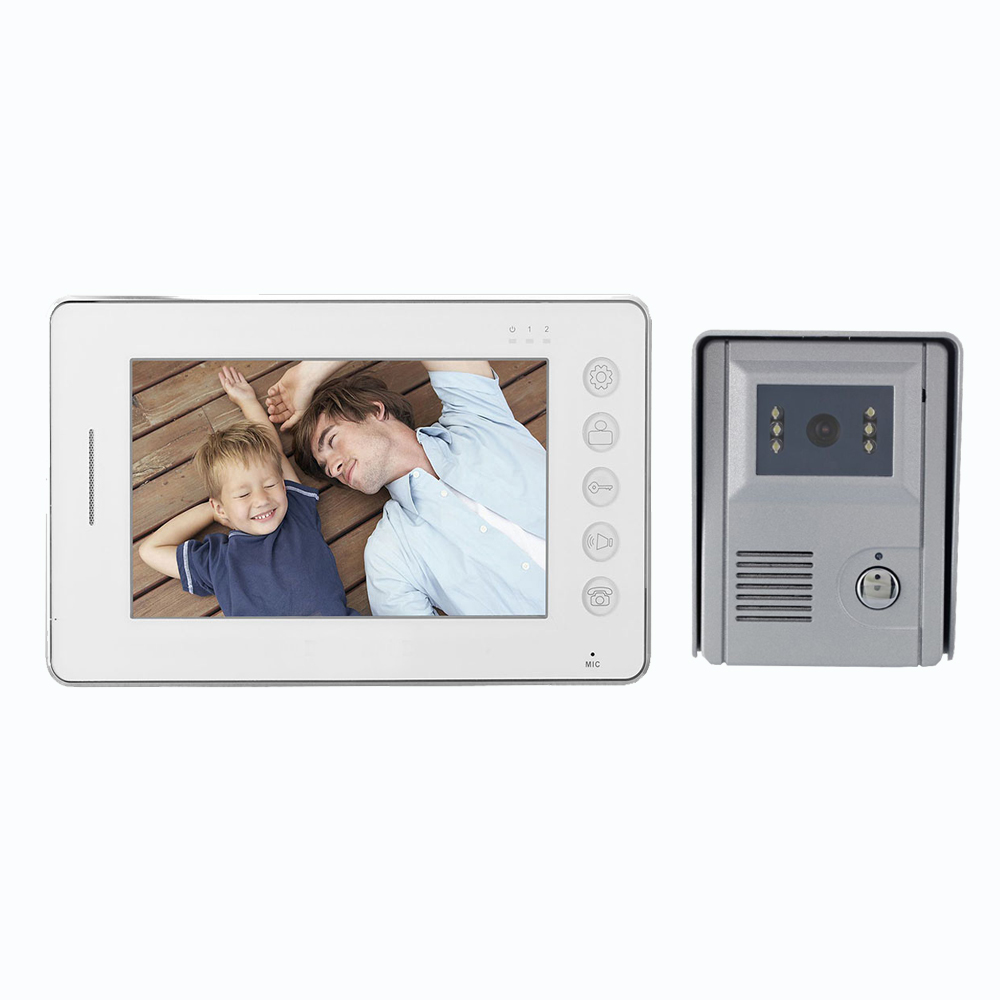

Video Door Entry System
This video door entry system provides a secure way to monitor and control property access. It features two-way audio, a high-resolution display, and a durable outdoor camera with infrared LEDs.
Technical Specifications
Product Overview
Comprehensive Access Control Solution
This advanced video door entry system provides professional-grade security and convenience for homes, offices, and villas. Featuring high-resolution color imaging and robust two-way audio communication, the system allows users to monitor visitors and operate door locks remotely. The unit is designed for durability with a waterproof, vandal-resistant outdoor station and supports convenient features like night vision and automated video/picture recording.
Key Features
- Primary Capabilities
- Hands-free IntercomNight VisionRemote UnlockingWaterproofVandal ResistantSD Card Support
Performance Metrics
System Performance
800 px
Display Horizontal Resolution
700 TVL
Camera Resolution
32 GB
Max SD Card Capacity
14 W
Working Power Consumption
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Camera Sensor | 1/3" CCD/CMOS |
| Lens Angle | 70 degrees |
| Wiring | 4-wire system |
| Operating Temperature | -30°C to +50°C |
| Relative Humidity | 45%-95% |
| Melody Options | 16 Chords |
Compatibility
Expansion Capabilities
- Up to 4 outdoor stations
- Up to 4 indoor monitors
- Requires transfer box for more than 2 stations
