Vertical Shaft Impact Crusher
This vertical shaft impact crusher is designed for efficient crushing with a large capacity. It features a long-life wear hammer, minimal dust production, and ensures uniform particle size while prioritizing safety and environmental protection.
Technical Specifications
Product Overview

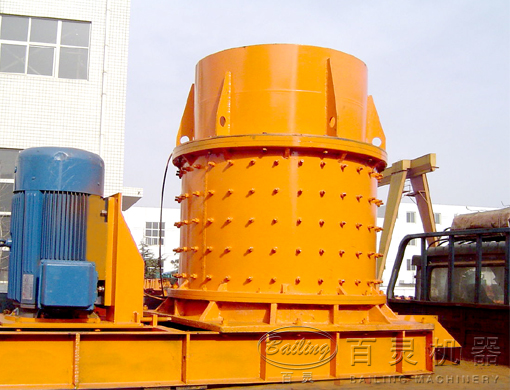

High-Efficiency Vertical Combination Crusher
This vertical combination crusher is an adjustable, non-screen bar crushing solution designed for high-performance aggregate and sand production lines. It utilizes a stone-at-stone crushing principle that minimizes wear, lowers operating costs, and produces high-quality cubic shape materials. Engineered for reliability, the system operates with low noise levels and efficient dust management, making it suitable for industries ranging from mining and cement to ceramics and power generation.
Key Advantages
- Operational Highlights
- Low Operating CostsStone-at-Stone PrincipleEnergy EfficientLow Noise (<75db)Low Iron Pollution
Technical Specifications
Productivity Metrics
8 %
Max Material Moisture Content
75 db
Operational Noise Limit
Series B Performance Data
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) |
|---|---|---|---|
| PFL-750B | 750 | 8-20 | 45 |
| PFL-1000B | 1,000 | 15-30 | 55 |
| PFL-1250B | 1,250 | 30-45 | 90 |
| PFL-1500B | 1,500 | 50-70 | 132 |
| PFL-1750B | 1,750 | 70-100 | 160 |
| PFL-2000B | 2,000 | 100-120 | 185 |
Industry Applications
Compatible Industries
- Mining
- Electric Power
- Ceramics
- Metallurgy
- Refractories
- Cement
- Coal
