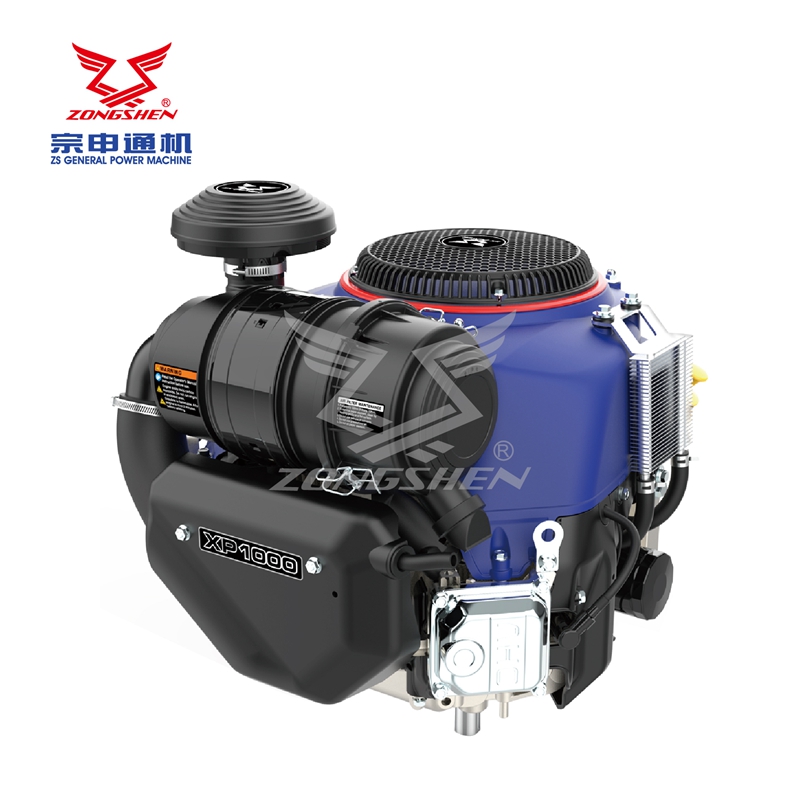

Vertical Shaft 33 HP Gasoline Engine
This vertical shaft gasoline engine delivers robust power for demanding applications. Its vertical shaft configuration ensures efficient power transfer and suitability for various equipment.
Technical Specifications
Overview
High-Performance 33 HP Vertical Shaft Engine
This 33 HP vertical shaft engine is engineered for demanding professional applications, offering a robust displacement of 999cc and stable, high-strength performance. Equipped with advanced electronic injection and intelligent control systems, it provides precise throttle management and real-time operational monitoring. The design focuses on operational comfort, fuel efficiency, and long-term durability, making it an ideal choice for high-end power equipment.
Technical Specifications
Key Performance Metrics
33 HP
Power Output
999 cc
Displacement
71 N.m
Max Torque
3,900 r/min
Max Output Speed
Engine Specifications
| Feature | Value |
|---|---|
| Bore x Stroke | 90 x 78.5 mm |
| Idle Speed | 1750 ± 150 r/min |
| Starting System | Electrical |
| Engine Oil Capacity | 2.5 L |
| Fuel Consumption Rate | 370 g/kW·h |
| Recommended Oil | SAE 10W-30 |
Logistics & Application
Dimensions and Weight
- Dimensions: 580 x 525 x 615 mm
- Net Weight: 54 kg
- Primary Applications
- Lawn MowerPower Generation Equipment
