Technical Specifications
Overview
Portable Power Solution

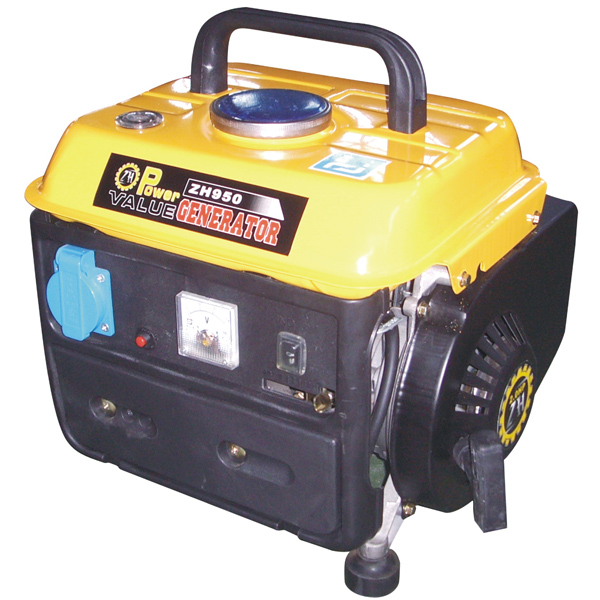

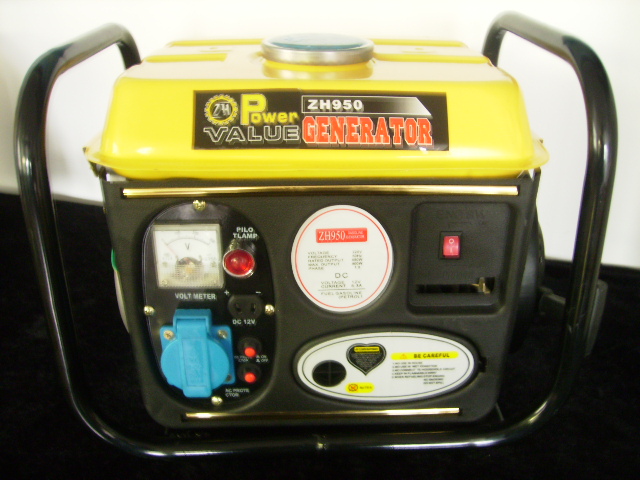

This compact 650W portable gasoline generator is engineered for versatility and reliability in various settings, from outdoor recreational activities to emergency backup power. Featuring a 2-stroke engine and a lightweight design, it provides an efficient power source that is easy to transport and operate. The unit includes essential monitoring tools like a voltmeter and DC output, ensuring users can safely power small appliances and electronics.
Performance Metrics
Key Performance Indicators
0.65 kW
Rated Output
0.8 kW
Max Output
57 dB(A)
Noise Level
Electrical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Rated Frequency | 50 / 60 Hz |
| Rated Voltage | 230 / 120 V |
| DC Output | 12V 8A |
| Power Factor | 1 |
| Phase | Single phase |
Engine Details
- Engine Model
- ZH60
- Engine Type
- 2-stroke
- Displacement
- 63 cc
- Compression Ratio
- 8.5:1
- Starting System
- Recoil starter
Physical Characteristics
- Dimensions (L x W x H)
- 370x330x330 mm
- Weight (Net/Gross)
- 18/20 kg
- Fuel Tank Capacity
- 4 L
Certifications
- Compliance
- CE Certified
