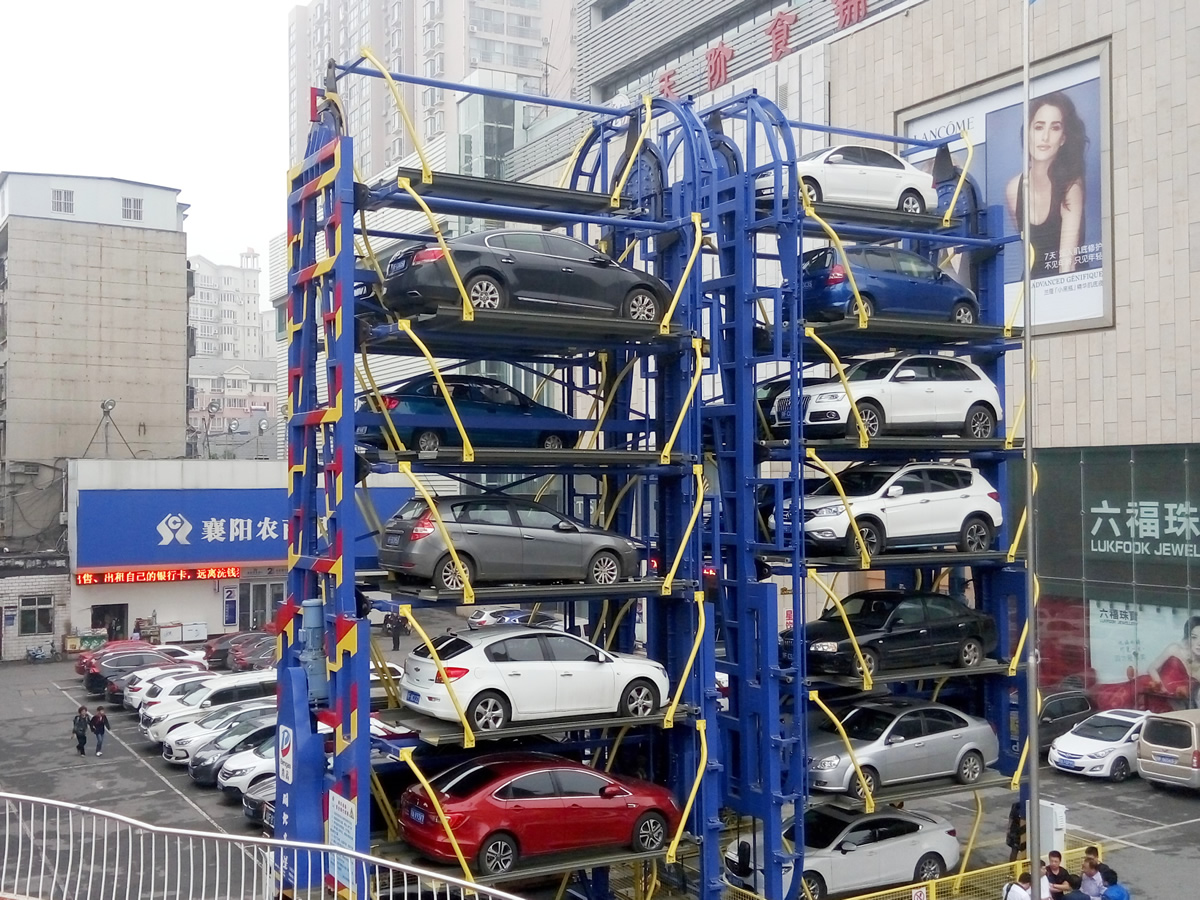

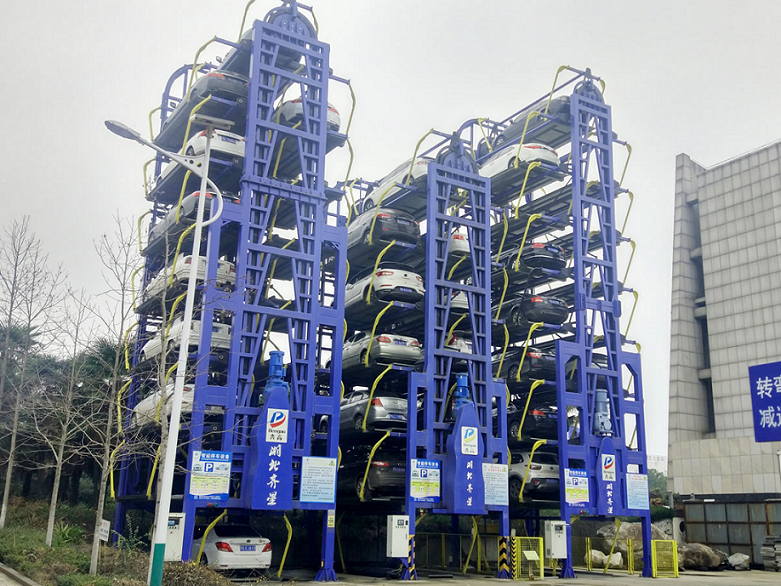

Vertical Rotary Parking System for 12 SUVs
This automated system utilizes vertical rotation for efficient vehicle storage and retrieval. It maximizes parking space in urban environments, providing secure and convenient parking for SUVs.
Technical Specifications
Product Overview
Smart Vertical Rotary Parking Solution
This automated vertical rotary parking system is an intelligent space-saving solution designed to accommodate up to 12 SUV-sized vehicles in a compact footprint. Engineered for high-density environments like commercial centers and residential areas, it offers rapid vehicle retrieval in under 90 seconds. With a robust steel construction and redundant safety features, this system provides a secure, reliable, and modern parking experience.
System Capacity & Dimensions
- Parking Capacity
- 12 vehicles
- Total System Layers
- 7
- Installation Land Area
- 7.0 x 5.3 Meters
- Equipment Overall Size (LxWxH)
- 6.65 x 5.25 x 18.7 Meters
Vehicle Compatibility
- Max Vehicle Dimensions (LxWxH)
- 5.30 x 2.20 x 2.0 Meters
- Max Vehicle Gross Weight
- 2500 kgs
Technical Specifications
Performance Highlights
90 seconds
Retrieval Time
11 KW
Engine Power
65 db
Max Sound Level
Drive & Control Details
- Drive Mode: Engine + Chain transmission
- System Voltage: 380V / 50HZ
- Control System: PLC-based with LCD touch screen or IC card input
Compliance & Safety
Integrated Safety Protocols
- Self-checking and alarming system
- Vehicle size detection
- Emergency anti-falling protection
- Power anti-overload protection
- Certifications
- CEISO 9001
