Technical Specifications
Overview
High-Fidelity Audio Experience

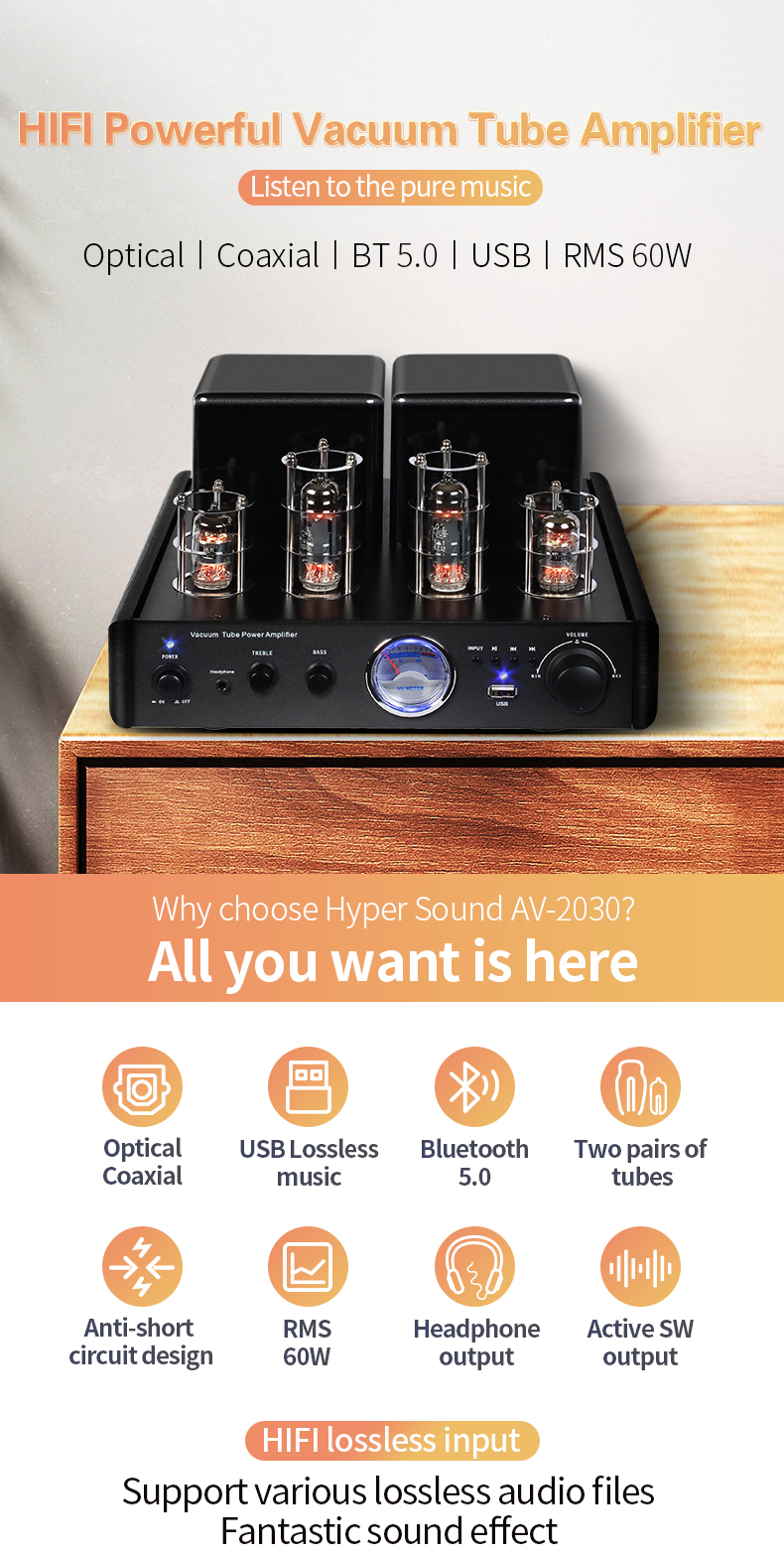

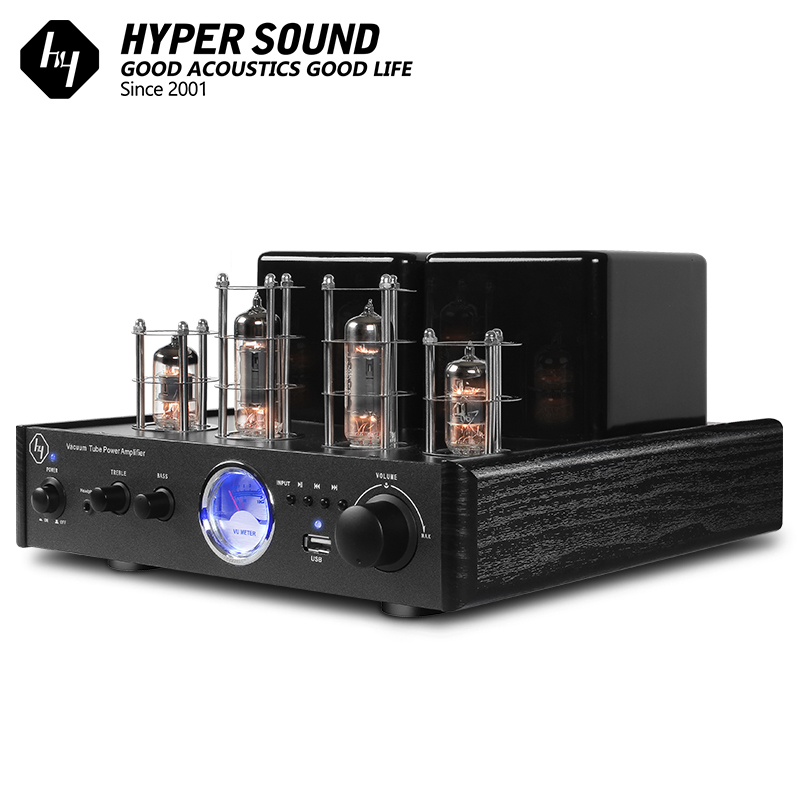

This vacuum tube power amplifier is designed for audiophiles seeking a warm, rich, and classic sound signature. Combining vintage tube amplification with modern connectivity like Bluetooth 5.0, optical, and coaxial inputs, it delivers outstanding fidelity for home audio setups. The unit features dedicated treble and bass controls, a visual VU meter, and a headphone output, ensuring a versatile and engaging listening experience.
Audio Performance
Rated Power
30 Wx2
Rated Power
300 W
PMPO
- Frequency Response
- 20Hz - 20KHz
- Signal-to-Noise Ratio
- 80 db
- Total Harmonic Distortion
- ≤0.5%
Connectivity

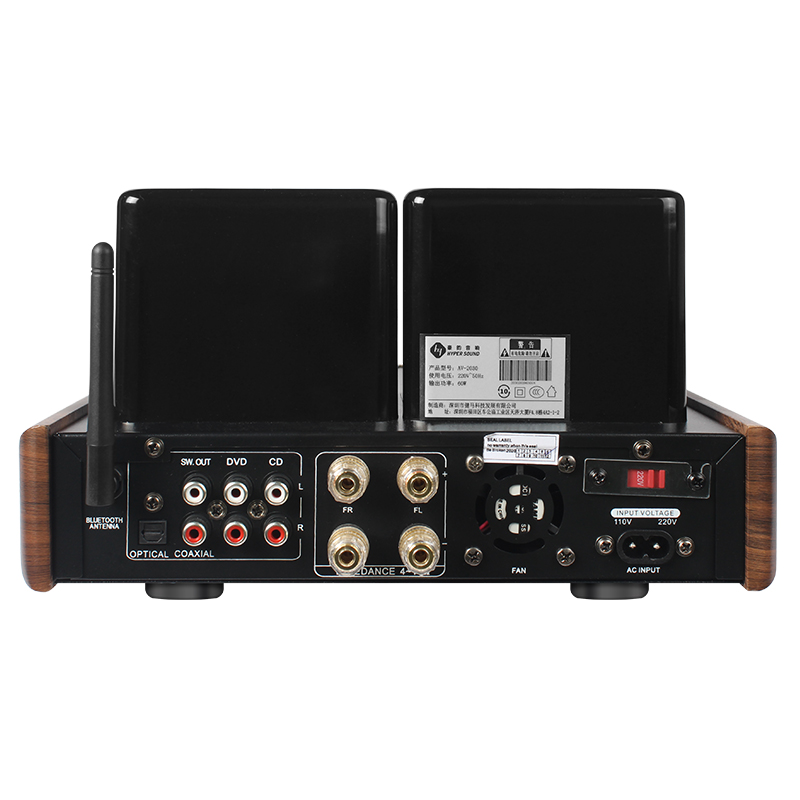

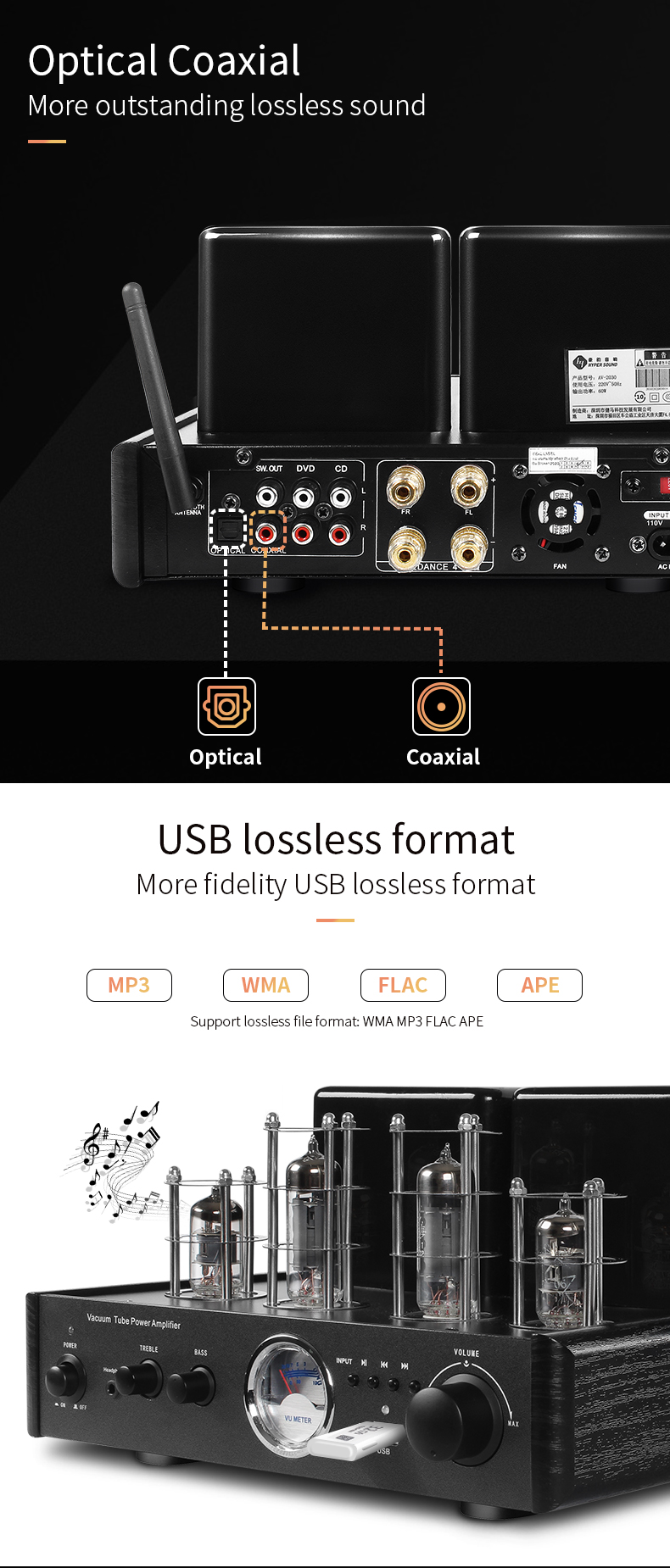

- Input Sources
- Bluetooth 5.0USBOpticalCoaxialCDDVD
- Output Options

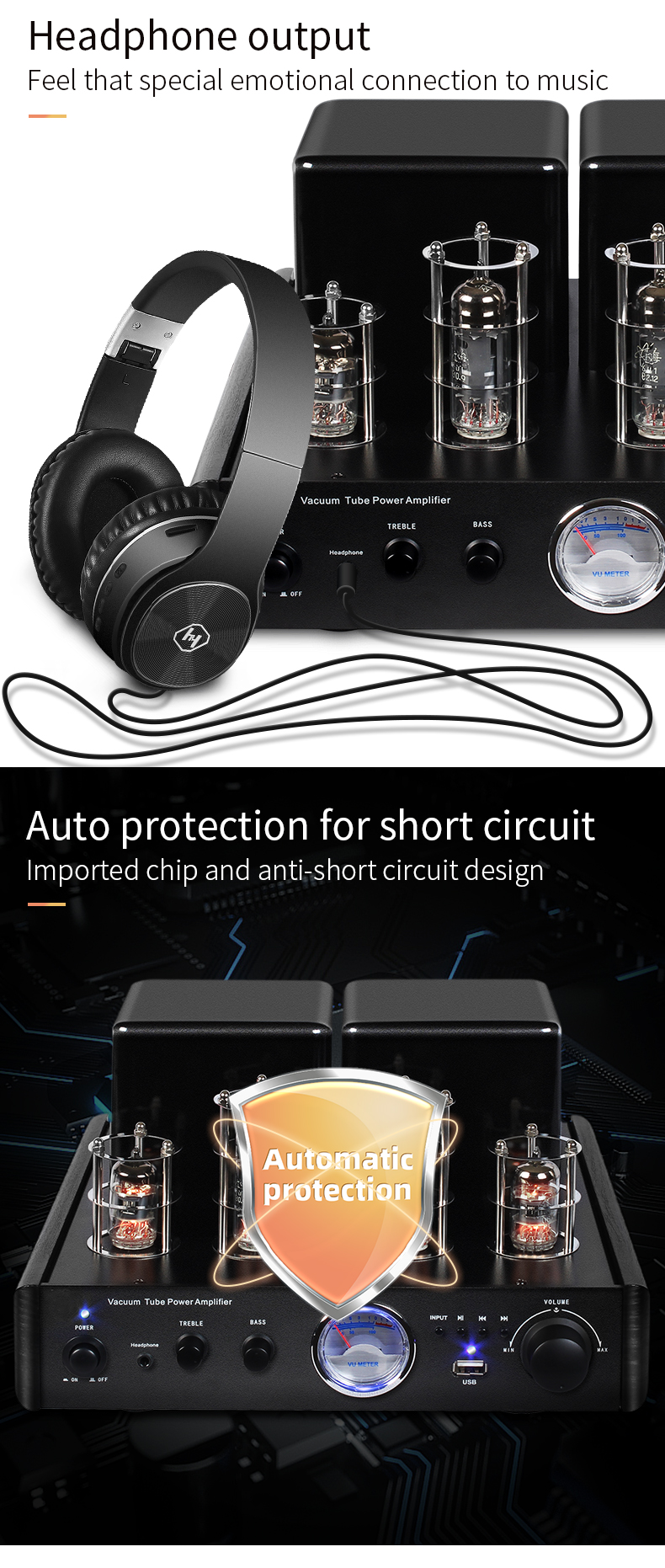

- Active Subwoofer OutHeadphone Jack (3.5mm)Left/Right Speaker Output
Technical Details
Tube Configuration
- 2x 6F2 Small Tubes
- 2x 6U1 Big Tubes
- Power Input
- AC 110V/220V (Switchable)

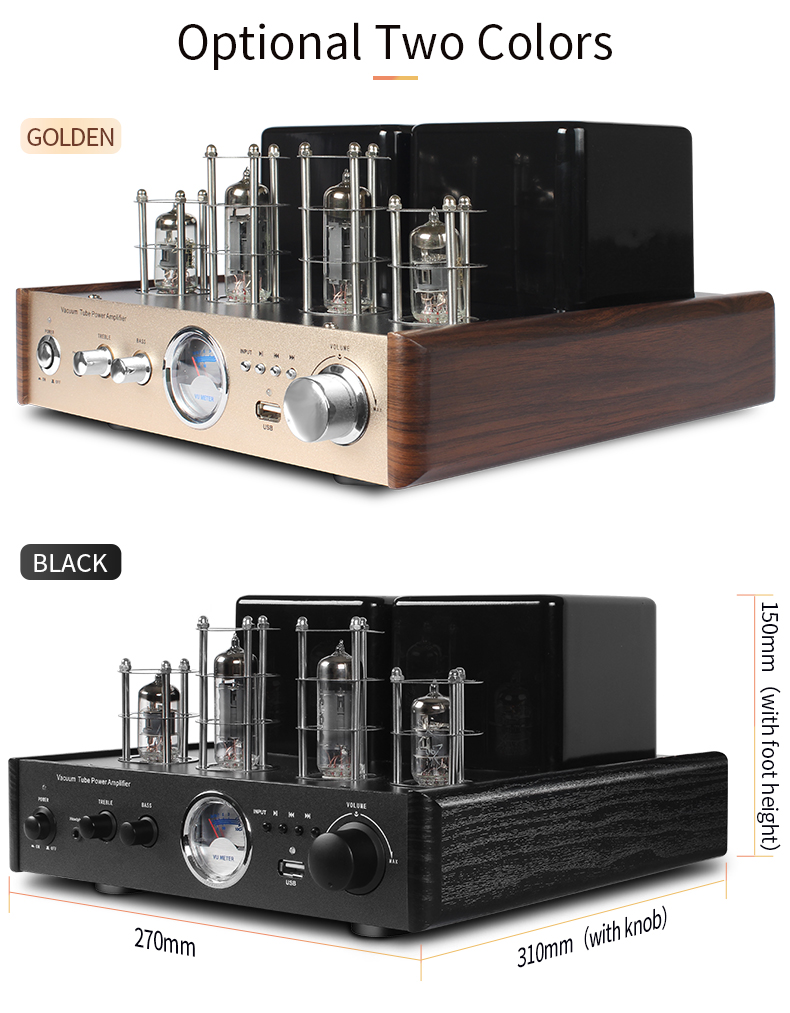

- Physical Dimensions
- 270mm x 310mm x 150mm
- Net Weight
- 3.5 kg
Features
Adjustments & Controls
- Treble Adjustment (±10db)
- Bass Adjustment (±10db)
- Master Volume Control
USB Supported Formats
MP3WMAFLACAPE
