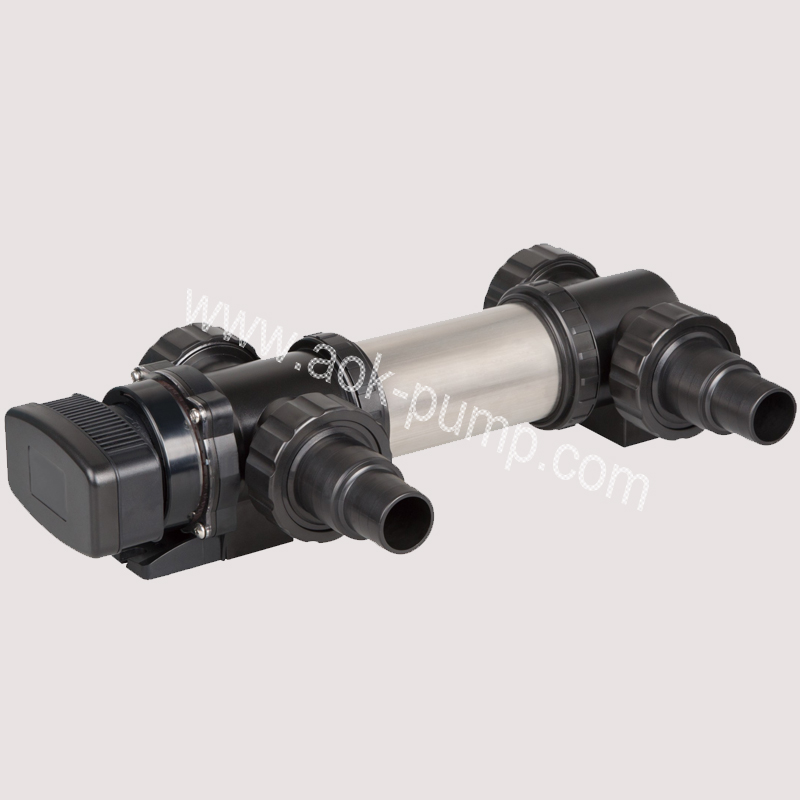

UV-C Water Clarifier
This UV-C water clarifier uses ultraviolet light to purify water. It is designed to eliminate harmful bacteria, viruses, and algae from water sources.
Technical Specifications
Product Overview
High-Efficiency UV-C Water Clarification
This UV-C water clarifier is engineered for effective sterilization in water systems, utilizing advanced ultraviolet technology to eliminate harmful bacteria, viruses, and algae. Featuring a durable stainless steel lamp shell, the unit enhances sterilization efficiency by 30% while extending the service life of the lamp. The design includes a specialized spiral guide inlet and a safe, separated lamp head configuration for easy maintenance.
Performance Metrics
Power Consumption
22 W
Min Power
110 W
Max Power
Flow Rate
3,000 L/h
Min Flow
8,000 L/h
Max Flow
Technical Specifications
- Capacity Range
- 25,000L - 120,000L
- Maximum Pressure
- 1 bar
Design Features
Design Highlights
- Spiral guide inlet for improved sterilization
- Separated lamp head and sterilization area for safety
- Corrosion-resistant construction
- Chemical-free water purification
- Key Materials
- Stainless Steel ShellDurable Plastic Fittings
