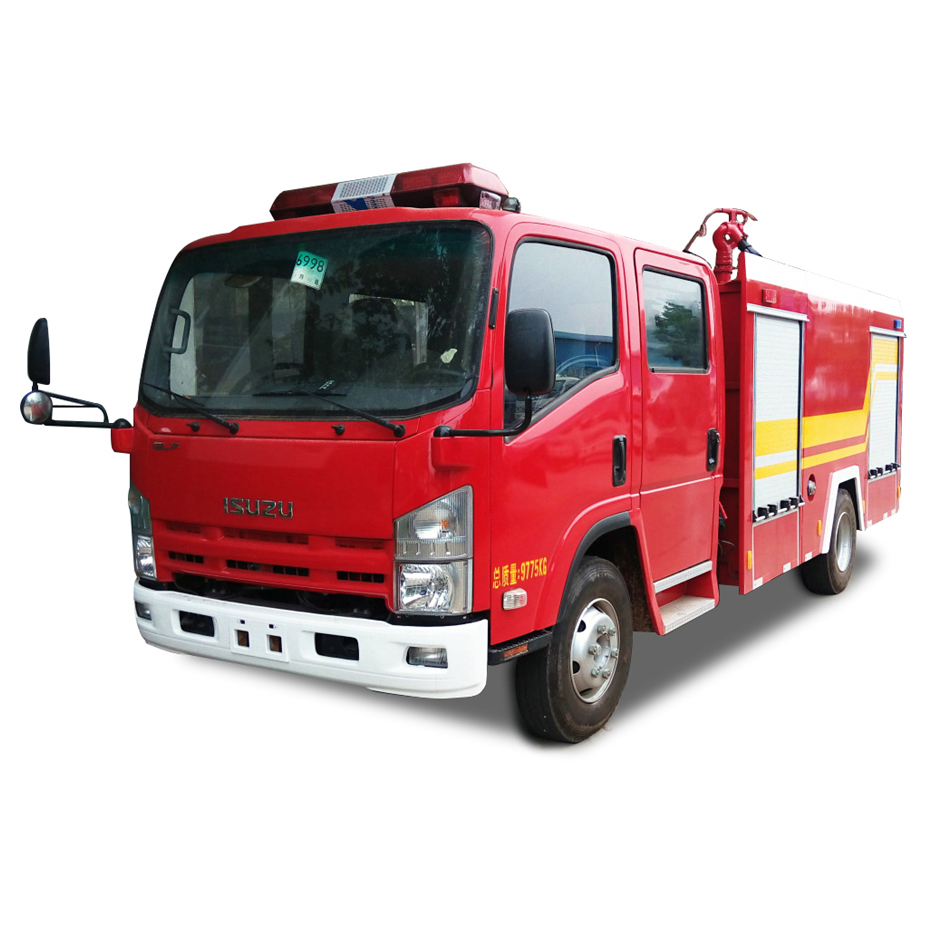

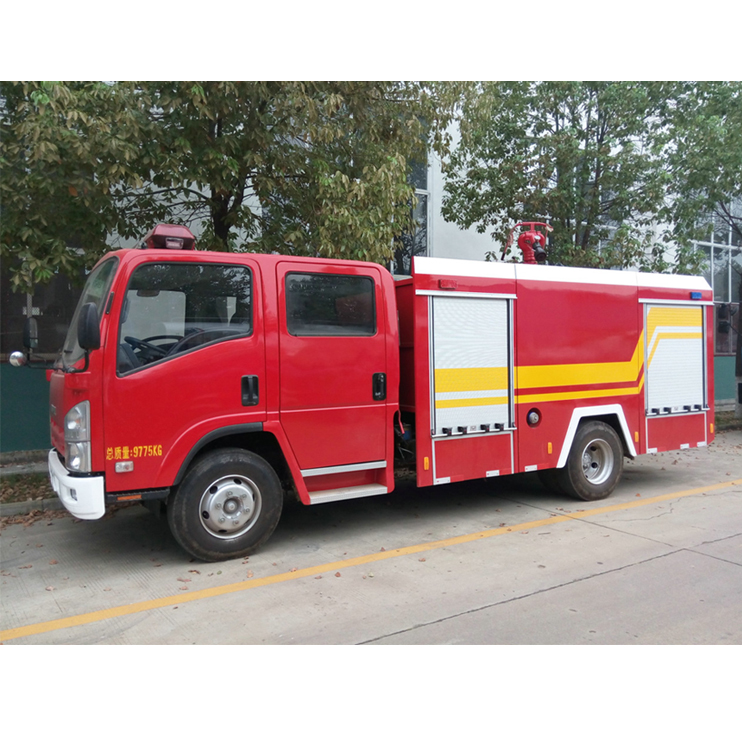

Urban Firefighting Truck with Water Cannon
This specialized truck is designed for rapid response and efficient fire suppression in urban environments. The vehicle features a robust chassis, a high-capacity water tank, and a powerful pump system.
Technical Specifications
Overview
Urban Firefighting Solution
This urban firefighting truck is engineered for rapid emergency response and efficient fire suppression in city environments. Built on a robust 4x2 chassis, it features a 4000L stainless steel water tank and a high-performance fire pump system. With its compact dimensions and powerful 190PS engine, this vehicle ensures maneuverability and reliability when every second counts.
Vehicle Dimensions & Weights
- Overall Dimensions
- 7200 x 2300 x 3100 mm
- Curb Weight
- 6300 kg
- Gross Vehicle Weight
- 10000 kg
Chassis & Drivetrain
Performance Metrics
190 PS
Horsepower
140 kW
Power
5,193 ml
Displacement
- Drive Type
- 4x2
- Wheelbase
- 3815 mm
- Transmission
- 6 Forward, 1 Reverse
- Key Features
- Power SteeringAir ConditioningABSRadial TiresAir BrakeMaintenance-Free Battery
Firefighting Systems
Pump Performance
| Metric | Value |
|---|---|
| Flow Rate | 30 L/s |
| Pressure | 1.0 MPa |
| Suction Depth | ≥7 m |
| Suction Time | ≤35 s |
Water Cannon Specifications
- Model: PS30
- Flow Rate: 30 L/s
- Range: ≥48m
- Horizontal Rotation: 360°
- Pitch Angle: -30° to 80°
- Water Tank Capacity
- 4000 L
- Tank Material
- Stainless Steel 304
