Technical Specifications
Overview
Versatile Urban Commuter

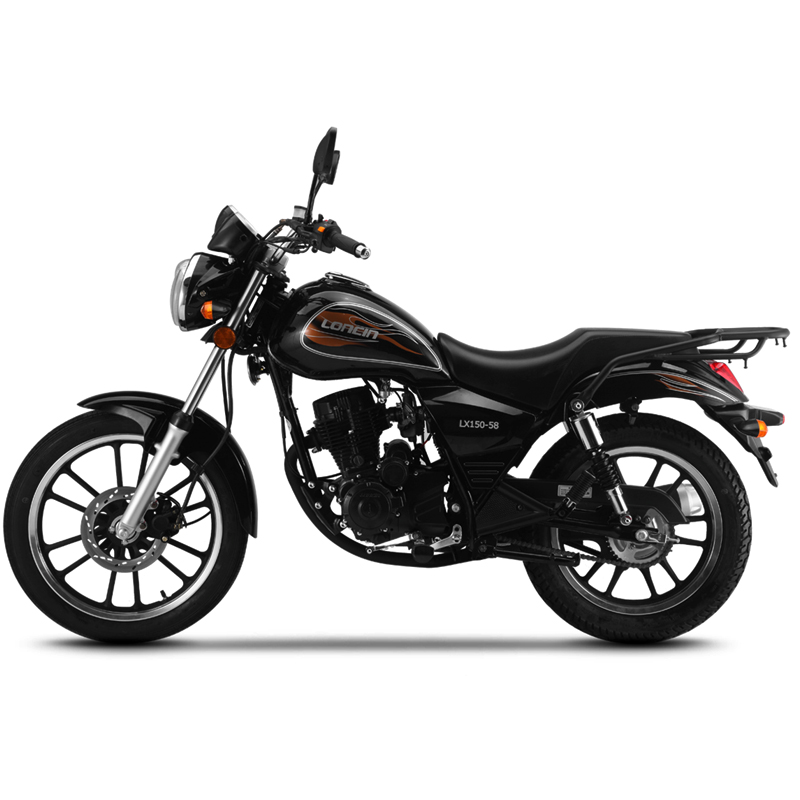

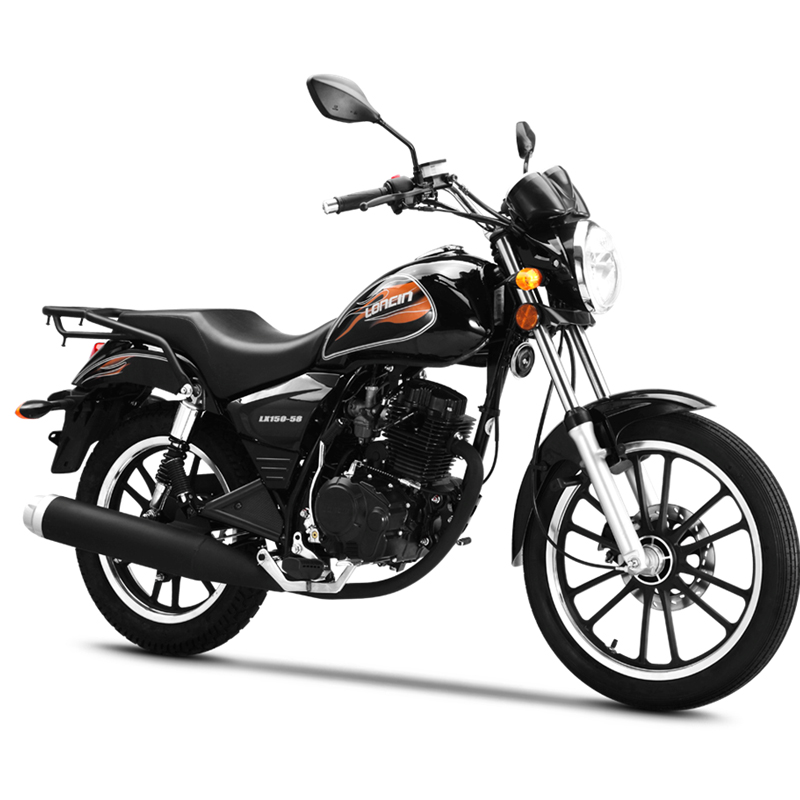

This 150cc motorcycle is engineered for reliable urban commuting and leisure riding, balancing performance with fuel efficiency. Featuring a robust 4-stroke air-cooled engine and a 5-speed transmission, it provides a smooth and responsive experience on city streets. The ergonomic design includes a well-padded seat and a sturdy frame, ensuring rider comfort and stability for daily transportation needs.
Engine & Performance
Engine Performance
11.4 hp
Maximum Power
10.5 N.m
Maximum Torque
95 km/h
Top Speed
- Engine Type
- Single cylinder, 4-stroke, Air-cooled (CGR150)
- Displacement
- 150.06 cc
- Compression Ratio
- 9.0:1
- Idle Speed
- 1300 rpm
Chassis & Dimensions
Physical Dimensions
| Parameter | Measurement |
|---|---|
| Overall Size (L×W×H) | 1970mm × 790mm × 1110mm |
| Wheel Base | 1265 mm |
| Seat Height | 735 mm |
| Ground Clearance | 150 mm |
| Net Weight | 125 ±10 kg |
Transmission & Control
Drivetrain
- 5-speed international gear system
- Chain final transmission
- Electric and Kick starting methods
- C.D.I. Ignition system
Safety & Components
Tire Configuration
- Front: 2.75-18 YUANXING tire
- Rear: 110/90-16 YUANXING tire
- Alloy wheels
Key Features
LED TaillightDENI CarburetorRear Painted CarrierPlastic Half Chain Cover
- Braking System
- Front Disk brake / Rear Drum brake
Capacity & Electrical
- Fuel Tank Volume
- 15.5 L
- Battery
- 12V 7AH YUXIANG Battery
- Maximum Load Capacity
- 150 kg
