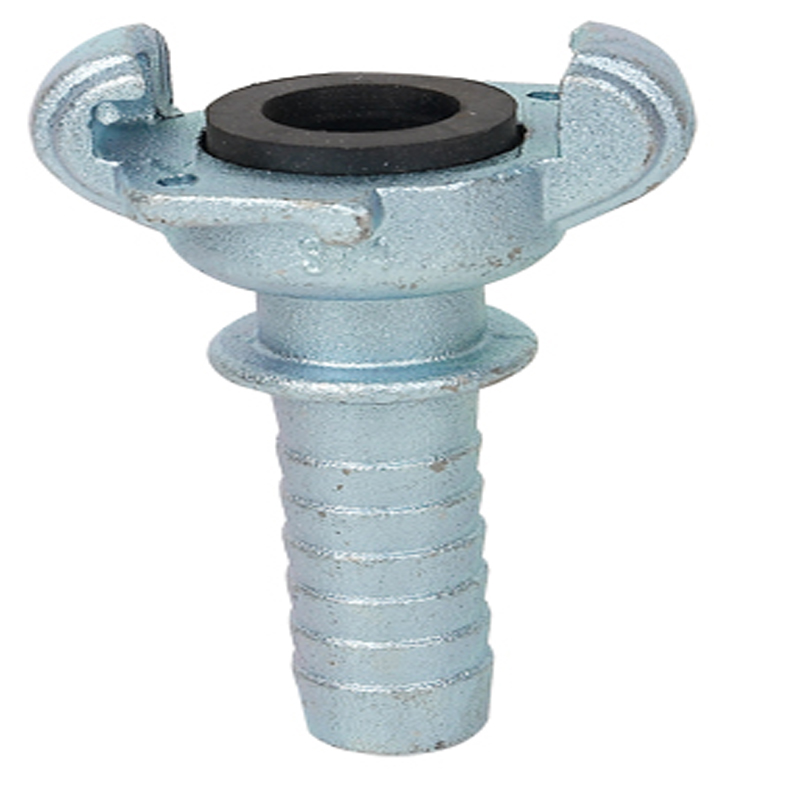

Universal Air Hose Coupling with Locking Cam
This universal air hose coupling is made from durable metal and features a locking cam mechanism for a secure connection. It includes a rubber gasket for an airtight seal and a ribbed hose barb for secure hose attachment.
Technical Specifications
Overview
Universal Air Hose Coupling with Locking Cam
This universal air hose coupling is designed for secure and efficient connections in pneumatic systems and air tool applications. Constructed from durable galvanized steel, it features a locking cam mechanism and a universal claw design for rapid connection and disconnection. Each unit is equipped with a high-quality rubber gasket or O-ring to ensure an airtight seal and prevent pressure loss during operation.
Technical Specifications
Available Sizes
- 3/8 inch
- 1/2 inch
- 3/4 inch
- 1 inch
Connection Types
| Standard | Fitting Types |
|---|---|
| USA Type | Female, Male, Hose End |
| European Type | Female, Male, Hose End |
Design & Construction
Material
Galvanized SteelDurable Metal
Key Features
- Locking cam mechanism for secure connection
- Universal claw design
- Ribbed hose barb for secure attachment
- Stamped size markings (e.g., 3/4)
- Sealing Mechanism
- Rubber GasketBlack Rubber O-ringAirtight Seal
Applications
- Pneumatic Applications
- Pneumatic SystemsAir ToolsAir Compressors
