Underground Water Detector 500-800m Depth Range
This water detector is designed for detecting underground water sources at depths of 500-800m. It analyzes the position and depth of underground water by monitoring changes in underground electrical resistivity through electrical field intensity measurements.
Technical Specifications
Overview
Professional Underground Water Detection

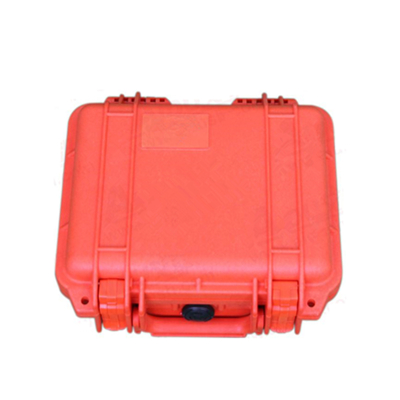

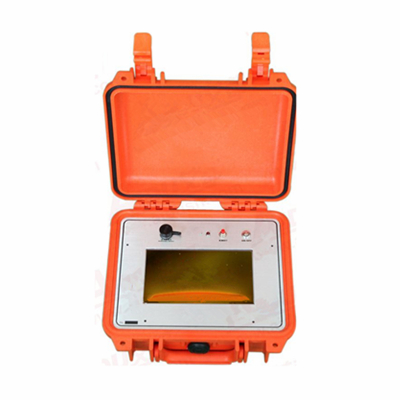

The DSHT-6S is a high-efficiency, portable natural electrical field detector designed for accurate underground water prospecting. It enables rapid analysis of water depth, position, and flow direction, significantly outperforming traditional DC electrical detectors in both speed and portability. This instrument is an essential tool for solving water access challenges in drinking, industrial, and agricultural applications.
Performance Metrics
Detection Depth
800 m
Max Depth
Measuring Frequencies
- 2,000
- 1,200
- 600
- 300
- 170
- 100
- 57
- 39
- 31
- 25
- 18
- 15
- 10
- Measuring Channels
- 13 channels
Technical Specifications
- Measuring Range
- 0-400mV
- Resolution
- 0.001mV
- Input Impedance
- ≥10MΩ
- A/D Switch
- 24 Bits 1Msps
Physical Characteristics
- Dimensions
- 27 x 25 x 13 cm
- Weight
- 2.8 kg
Power & Environment
- Battery Capacity
- 5200 mAh
- Operating Temperature
- -40℃ to +70℃
- Humidity Tolerance
- 90%
Features
Key Features
PortableAuto-measuringTouch ScreenUSB 2.0 InterfaceHigh Efficiency
