300m Underground Water Detector
This water detector is specifically designed for depths of 200-300m. It monitors changes in underground electrical resistivity by measuring the intensity of the electrical field to analyze the position and depth of underground water.
Technical Specifications
Overview
Professional Underground Water Detection

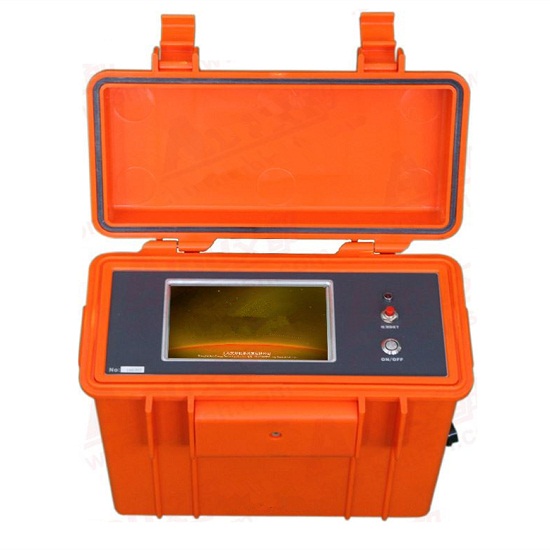

The DSHT-2S is a highly portable and efficient multi-function natural electrical field detector designed for accurate subsurface analysis. Offering a significant improvement over traditional DC electrical detectors, this unit is 8 times faster and 8 times lighter, making it ideal for field surveys. It is engineered to identify underground water position, depth, flowing direction, and yield, solving critical needs for drinking, industrial, and agricultural water supply.
Performance Metrics
Key Performance Metrics
300 m
Detection Depth
7
Measuring Channels
0.001 mV
Resolution
Technical Parameters
Measurement Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 0-255mV |
| Frequency Tolerance | 2% |
| Repetitive Error | ±2% ±2 Bit |
| A/D Switch | 16 Bits 1Msps |
| Input Impedance | ≥10MΩ |
| Power Frequency Suppression | >80dB |
Operating Frequencies
- 4,900
- 2,000
- 600
- 170
- 67
- 35
- 25
Hardware & Environment
Display & Interface
5" Touch ScreenUSB 2.0
- Physical Dimensions
- 27 x 22 x 15 cm
- Weight
- 2.3 kg
- Power System
- DC 7.4V 5200mAh Lithium Battery
- Operating Environment
- -20℃ to +60℃80% Humidity
Applications
- Primary Applications
- Hydrogeological SurveyGroundwater ExplorationEnvironmental MonitoringAgricultural Water SupplyIndustrial Water Sourcing
