Technical Specifications
Product Overview

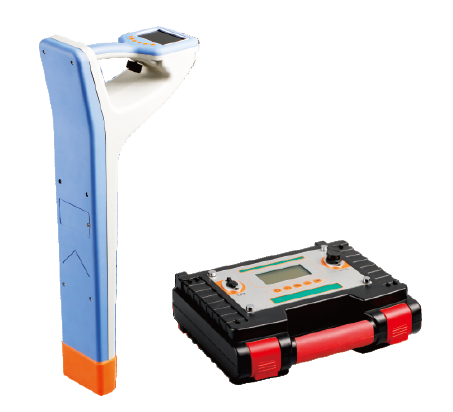

Professional Underground Utility Locating System
The T3000 is a high-performance underground locator designed for precision tracing of metallic pipes and cables. Utilizing advanced electromagnetic induction principles combined with narrowband digital filtering, it offers exceptional anti-interference capabilities even in high-voltage environments. The system includes features such as compass-assisted path tracking, depth measurement, and the ability to detect underground electronic markers for efficient infrastructure management.
Technical Specifications
Operating Frequencies
- 50Hz
- 512Hz
- 640Hz
- 1.5kHz
- 8.2kHz
- 9.5kHz
- 16.5kHz
- 32.8kHz
- 65kHz
- 82kHz
- 98kHz
- 128kHz
- 135kHz
- 200kHz
- Core Features
- Narrowband Digital FilteringCompass Path DirectionDepth MeasurementElectronic Marker DetectionTarget Cable Identification
Hardware & Interface
Field Functionality
Route TracingInsulation Damage LocationGrounding Fault LocationCable Path Turning Detection
- Display
- High-resolution color LCD with backlight
