Technical Specifications
Product Overview

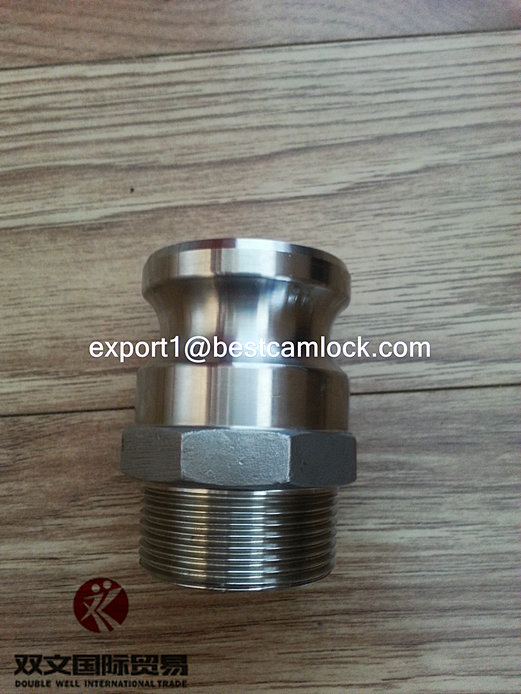

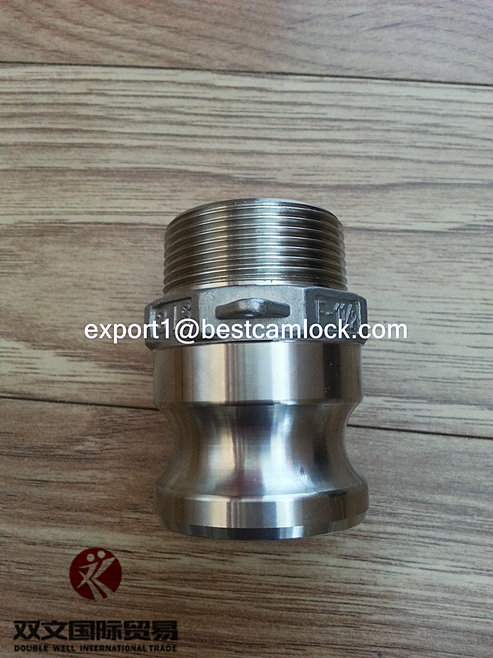

High-Performance Type F Stainless Steel Camlock
The Type F stainless steel camlock coupling is a high-quality quick connect solution designed for robust performance in industrial, agricultural, and marine fluid transfer applications. Engineered for excellent corrosion resistance and high-temperature tolerance, these fittings ensure a leak-proof and secure connection. Compatible with a variety of fluids including water, waste, and hydraulic oil, this coupling is built for long service life in demanding environments.
Technical Specifications
Thread Standards
- NPT
- BSPP
- BSPT
- Available Materials
- Stainless Steel 304Stainless Steel 316
- Size Range
- 1/2" to 8"
- Standards Compliance
- A-A-59326DIN 2828MIL-C-27487
Performance Metrics
Working Pressure by Size
| Size Range | Pressure (PSI) |
|---|---|
| 3/4" - 2" | 250 |
| 2 1/2" | 225 |
| 3" - 4" | 200 |
| 6" | 150 |
- Operating Temperature
- -150°F to +500°F
Construction Details
Seal Options
NBRBUNAEPDMVITON
- Manufacturing Method
- Precision casting or forged
