Quick Connect Pipe Fittings
These quick connect fittings facilitate the rapid joining of pipes or tubes. They are available in sizes ranging from 1 inch to 8 inches and are suitable for various industrial and commercial applications.
Technical Specifications
Product Overview
Efficiency and Reliability in Flow Control
These professional-grade quick connect pipe fittings are designed for the rapid and secure connection of flexible hoses in industrial and commercial environments. Manufactured from durable ABS material, they offer a cost-effective solution that reduces downtime and increases operational efficiency. Their simple, leak-resistant design ensures long-lasting performance across a wide range of fluid transfer applications.
Material and Design
- Material Composition
- ABS
- Key Features
- Leak-ResistantCost-EffectiveSimple InstallationExtended Service Life

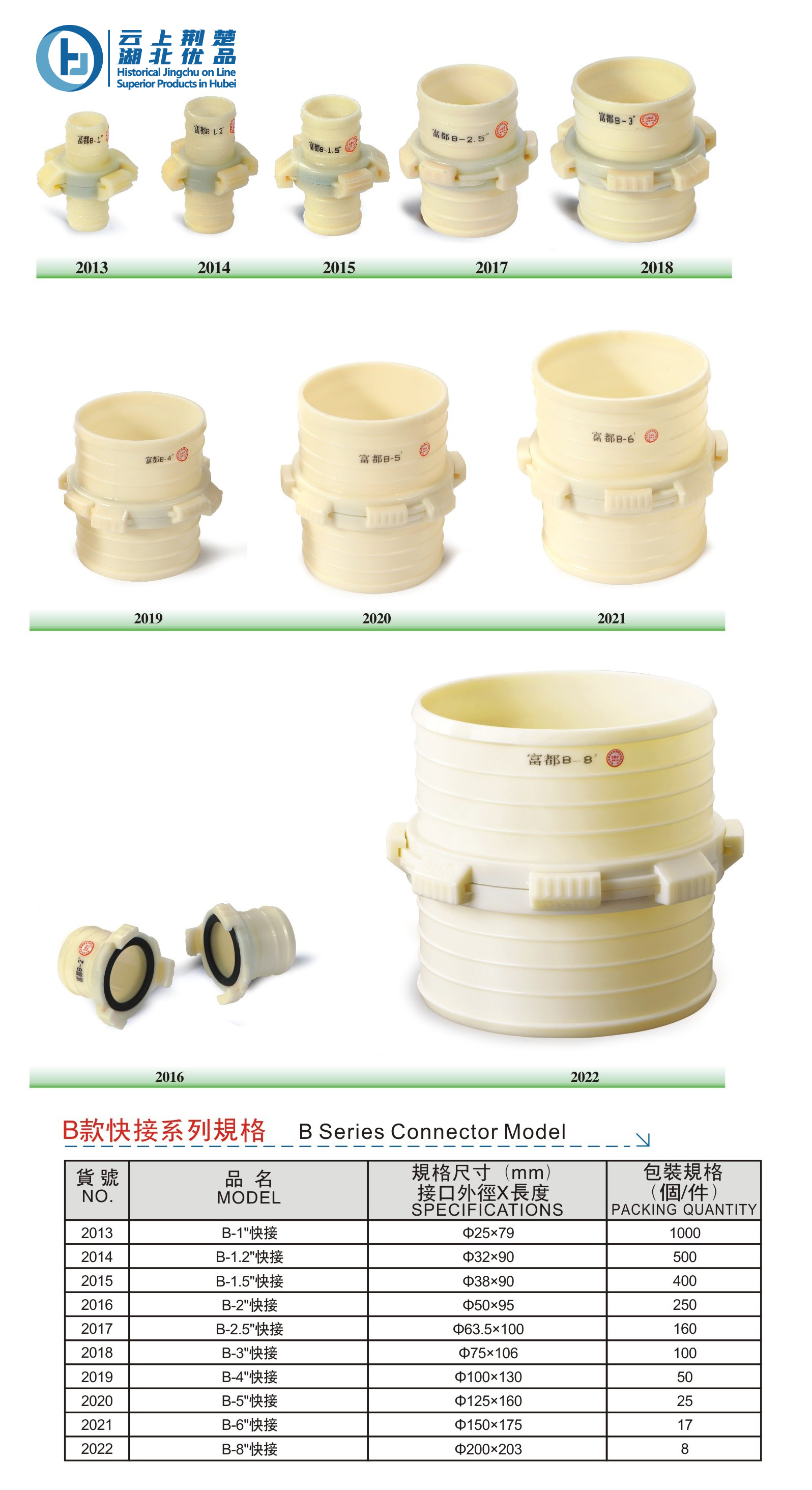

B Series Technical Data
B Series Connector Specifications
| Model | Diameter (mm) | Length (mm) | Packing (pcs) |
|---|---|---|---|
| B-1" | 25 | 79 | 1,000 |
| B-1.2" | 32 | 90 | 500 |
| B-1.5" | 38 | 90 | 400 |
| B-2" | 50 | 95 | 250 |
| B-2.5" | 63.5 | 100 | 160 |
| B-3" | 75 | 106 | 100 |
| B-4" | 100 | 130 | 50 |
| B-5" | 125 | 160 | 25 |
| B-6" | 150 | 175 | 17 |
| B-8" | 200 | 203 | 8 |
BP Series Technical Data
BP Series Connector Specifications
| Model | Diameter (mm) | Length (mm) | Packing (pcs) |
|---|---|---|---|
| BP-1" | 26 | 80 | 1,000 |
| BP-1.5" | 38 | 90 | 400 |
| BP-2" | 50 | 90 | 250 |
| BP-2.5" | 63.5 | 100 | 160 |
| BP-3" | 75 | 106 | 100 |
| BP-4" | 100 | 130 | 50 |
| BP-6" | 150 | 175 | 17 |
