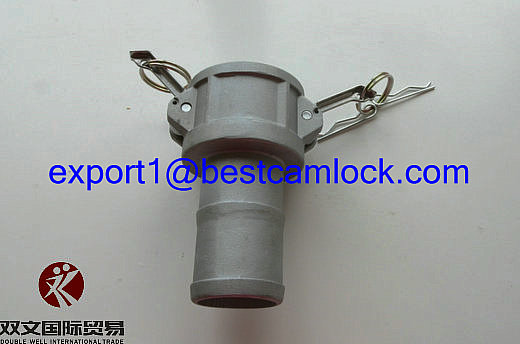

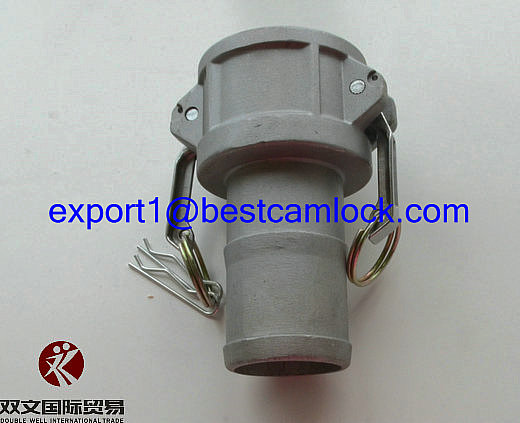

Type C Cam and Groove Coupling with Viton Gasket
Type C cam and groove couplings facilitate quick connections and disconnections of hoses and pipes. The Viton gasket ensures a secure seal for fluids, powders, and pellets, eliminating the need for tools.
Technical Specifications
Product Overview
Industrial Cam and Groove Solutions
This Type C cam and groove coupling provides a high-performance solution for rapid hose and pipe connection. Engineered for durability and ease of use, it eliminates the need for specialized tools while maintaining a secure, leak-proof seal for fluids, powders, and pellets. The inclusion of a Viton gasket offers superior chemical and fuel resistance, making it an ideal choice for demanding industrial and agricultural environments.
Technical Specifications
Compliance Standard
A-A-59326DIN 2828
- Body Material
- Aluminum
- Size Range
- 1/2 inch to 8 inch
- Seal Material
- VitonNBRBUNAEPDM
- Available Threads
- NPTBSPPBSPT
Performance Metrics
Operating Limits
250 psi
Max Pressure
-150 F
Min Temperature
250 F
Max Temperature
Components & Construction
Material Breakdown
| Component | Material Options |
|---|---|
| Handles | Brass or Stainless Steel |
| Pins, Rings, Safety Clips | Carbon Steel (Plated) or Stainless Steel |
| Body | Aluminum |
