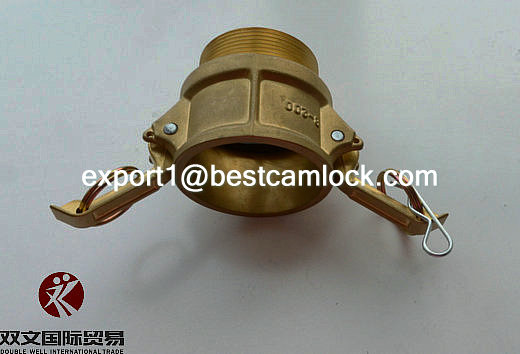

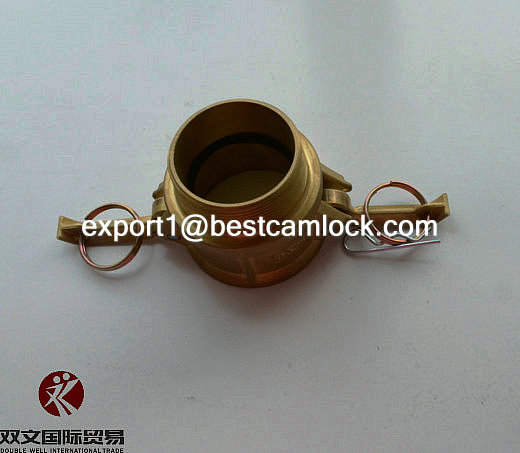

Type B Male BSPT Threaded Forged Brass Cam Lock Coupling
This Type B male BSPT threaded cam lock coupling is made from forged brass. It allows for quick and easy connection and disconnection of hoses and pipes in fluid transfer applications.
Technical Specifications
Product Overview
High-Performance Brass Camlock Coupling
This Type B camlock coupling is engineered from high-quality forged brass, offering exceptional durability, abrasion resistance, and a non-sparking design for safe operation. Ideal for industrial fluid transfer, it facilitates rapid connection and disconnection without the need for tools, significantly increasing operational efficiency. Designed for versatility, it is well-suited for suction and discharge hoses in sectors such as tank, pump, and chemical processing applications.
Technical Specifications
- Material
- Forged Brass
- Available Sizes
- 1/2 inch to 6 inch
- Thread Options
- NPTBSPPBSPT
- Max Working Pressure
- 250 psi
- Operating Temperature
- -101°C to +232°C (-150°F to +450°F)
- Standards
- A-A-59326MIL-C-27487DIN 2828DIN 14420-7
Design & Features
Component Materials
| Component | Material Options |
|---|---|
| Pins, Rings, Safety Clip | Carbon Steel Plated or Stainless Steel |
| Handle | Brass or Stainless Steel |
| Seal | NBR, BUNA, EPDM, VITON |
Key Advantages
- No tools required for operation
- Non-sparking material
- High abrasion resistance
- Cost-effective alternative to stainless steel
- Coupling Type
- Type B (Male Adapter with Threaded End)
Application & Safety
Application Limitations
This coupling is not suitable for the transfer of steam, compressed air, or liquid gases. Ensure compatibility with the intended media before installation.
- Suitable Media
- OilsCoolantsWater
