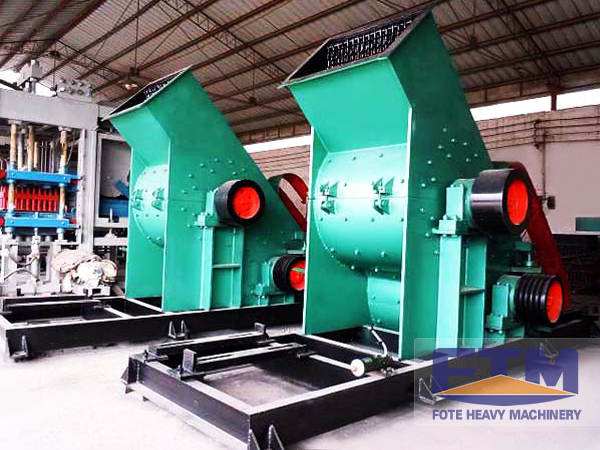

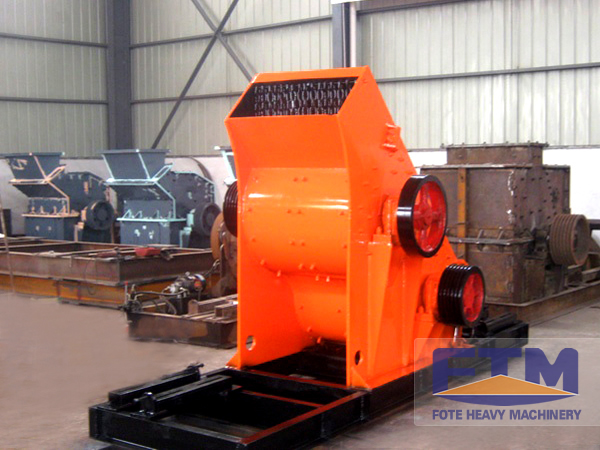

Two-Stage Rock Crusher
The two-stage crusher is suitable for crushing cinder, calcite, limestone, and construction waste. It effectively combines two hammer crushers to solve problems of using gangue and coal cinder as brickyard additives and fuels.
Technical Specifications
Overview
High-Efficiency Two-Stage Crushing
This two-stage crusher is an industrial solution for brittle material reduction, utilizing dual rotors in series for superior performance. It effectively processes substances like limestone, coal gangue, and construction waste, achieving a fine output granularity of less than 3mm. Designed for reliability, the system features easy-access side doors to simplify maintenance and maximize operational uptime.
Key Performance Metrics
Operational Performance
120 t/h
Max Capacity
3 mm
Max Discharge Size
400 mm
Max Feeding Granularity
Technical Specifications
Technical Data
| Model | Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|
| 400×600 | ≤100 | 15-25 | 18.5+18.5 |
| 600×600 | ≤150 | 20-30 | 22+22 |
| 800×600 | ≤200 | 50-70 | 37+45 |
| 1000×800 | ≤300 | 70-90 | 75+55 |
| 1200×1000 | ≤400 | 90-120 | 90+57 |
Key Features
Operational Advantages
- Low noise and reduced dust generation
- Minimized material blocking
- Quick-access side doors for efficient maintenance
- Dual-rotor high-speed collision crushing
- Optimized for internal combustion brick raw materials
- Supported Materials
- CalciteLimestoneBrick CinderSlagShaleCoal GangueConstruction Waste
