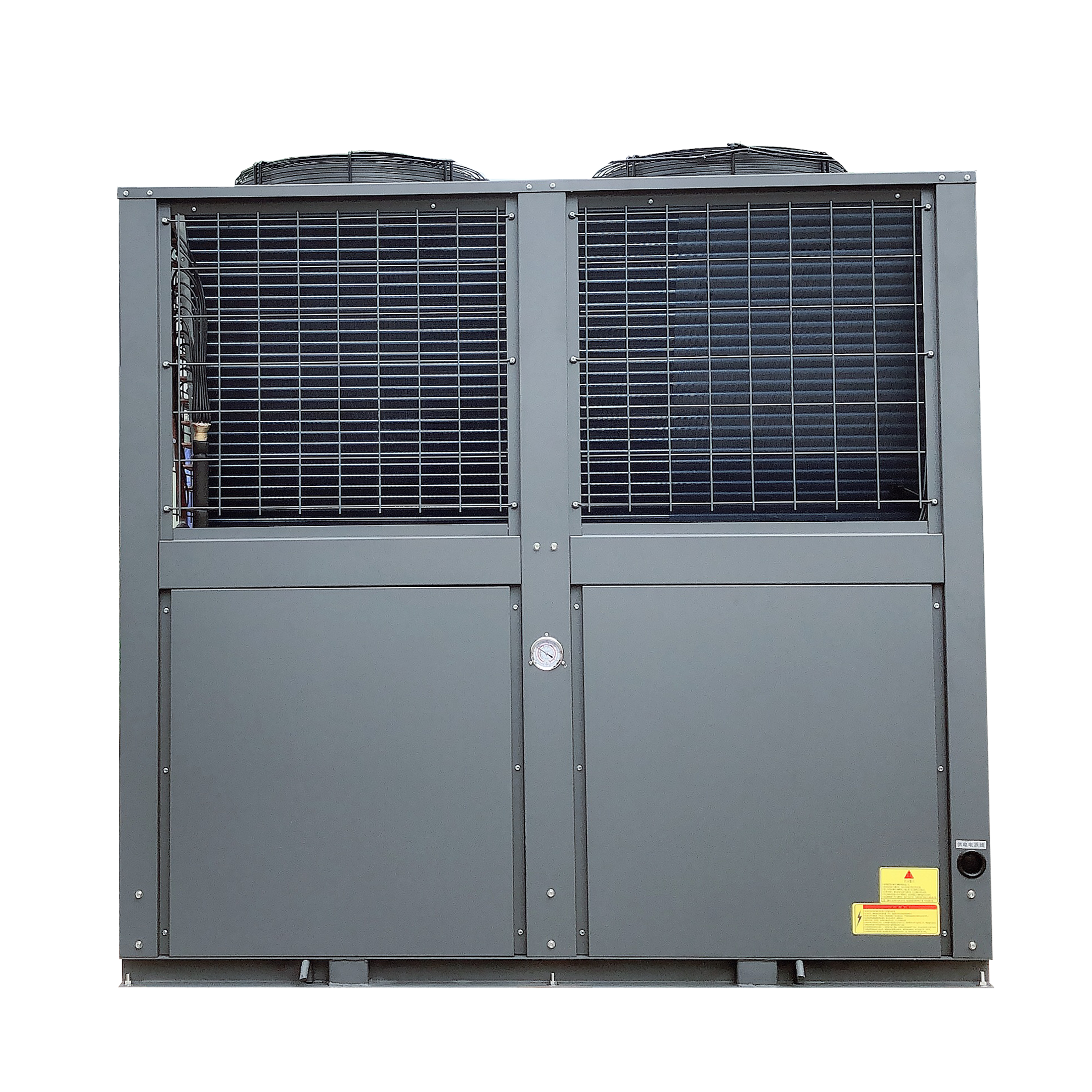

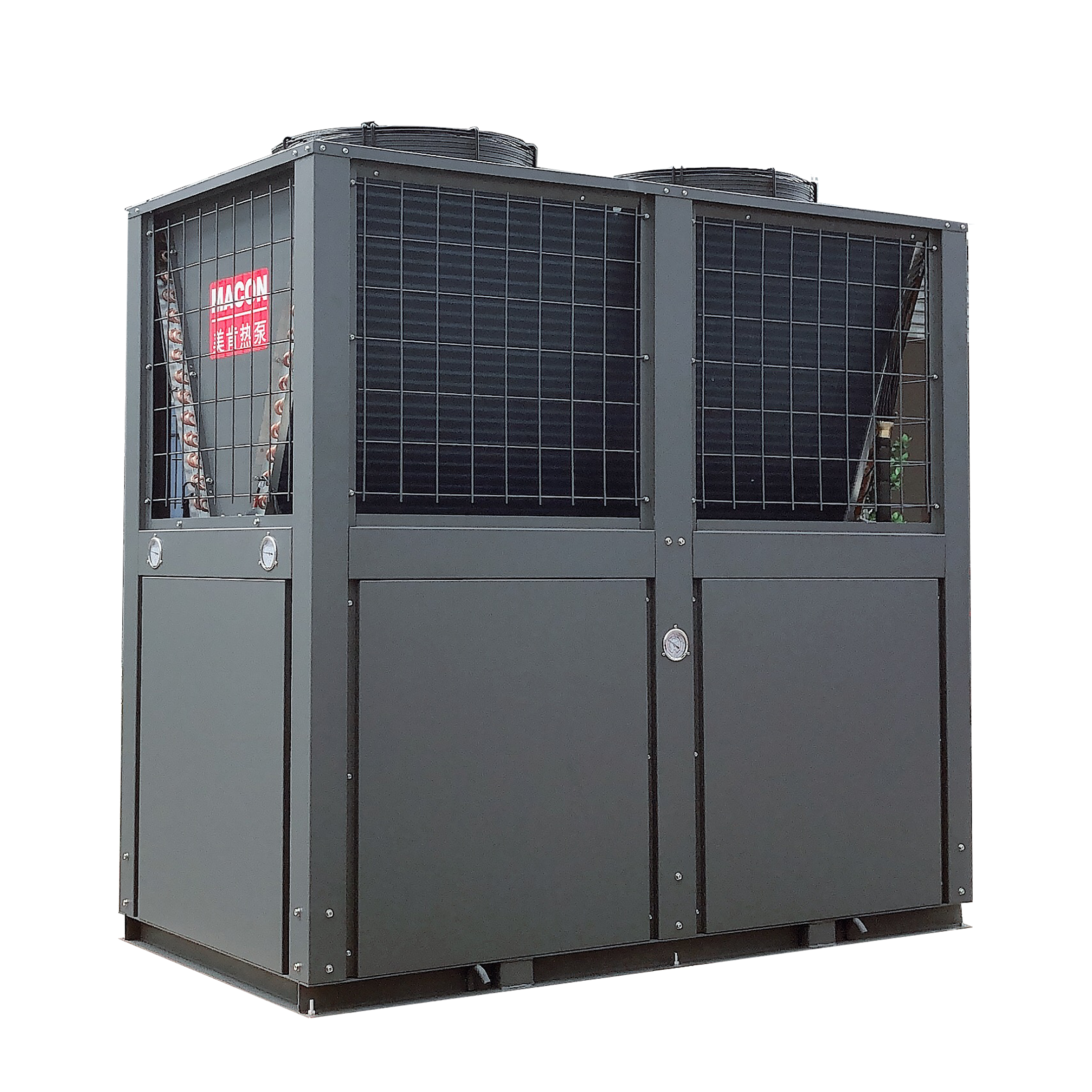

Two-Stage High-Temperature Heat Pump
This two-stage high-temperature heat pump produces hot water up to 80°C, even in ambient temperatures as low as -20°C. It is designed for house heating, domestic hot water, and other applications requiring high-temperature water.
Technical Specifications
Overview
High-Performance Two-Stage Heat Pump
This two-stage high-temperature heat pump is designed for efficient water heating up to 80°C, even in extreme ambient temperatures as low as -35°C. It serves as an ideal energy-saving replacement for traditional coal, oil, and electric boilers in space heating and domestic hot water applications. With advanced features like intelligent defrosting and multi-grade antifreeze protection, this system ensures reliable performance for both residential and industrial use.
Key Features
- Key Features
- Two-Stage CompressionHigh Temperature Output (80°C)Wide Operating Range (-35°C to 43°C)Intelligent DefrostAntifreeze ProtectionEnergy Saving Curve
Performance Metrics
Featured Performance Metrics
80 °C
Max Water Temp
2.6 W/W
Max COP
54 dB(A)
Avg Noise Level
Technical Specifications
Technical Specifications
| Feature | Specification |
|---|---|
| Refrigerant | R410a / R134a |
| Compressor Type | Scroll |
| Power Supply | 220V/1PH/50Hz or 380V/3PH/50Hz |
| Water Outlet/Inlet | 1 inch |
| Ambient Range | -35°C to 43°C |
Applications
Suitable Applications
- Private Residences & Villas
- Hotels
- Bathing Pools & Saunas
- Factories
- Commercial Centers
- Slaughterhouses
