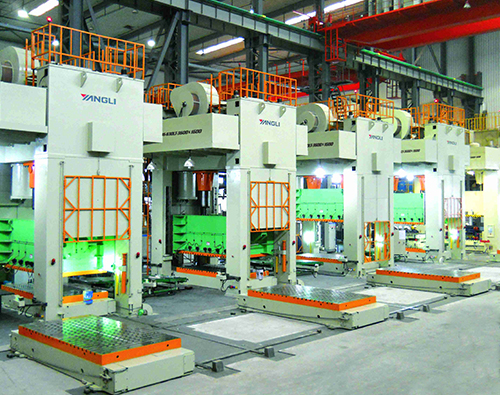

Two-Point Straight Side Stamping Press
This heavy-duty metal forming machine is designed for high-precision stamping and pressing operations. It features a two-point suspension system ensuring even distribution of force across the die area, resulting in consistent part quality.
Technical Specifications
Overview
High-Precision Two-Point Stamping Press
This two-point straight side stamping press is engineered for heavy-duty metal forming applications requiring high precision and consistency. Utilizing Finite Element Method (FEM) optimization, the machine features a robust welded crown, column, and bed construction, pre-tightened with tie rod bolts to ensure exceptional rigidity and structural integrity. Designed for high-volume production, it offers reliable performance for demanding industrial environments.
Construction & Design
Structural Features
- FEM-optimized main components
- Welded crown, column, and bed construction
- Pre-tightened tie rod bolt assembly
- Eight-face rectangle slide guide system
Drive & Transmission
Drive System
- Asynchronous drive mechanism
- High-strength alloy steel drive gears
- Herringbone gear design for high-speed pairs
- Tooth-grinded hardened straight gears for low-speed pairs
Safety & Control
- Safety Systems
- Hydraulic Overload ProtectionAutomatic Oil LubricationImported Dual Solenoid ValveElectronic Cam ControlMechanical Cam Control
- Clutch & Brake
- Part revolution pneumatic friction clutch brake (Optional imported wet type available)
Optional Equipment
Available Upgrades
Air CushionMoving BolsterTonnage MonitorBuffer
