Tungsten Carbide Tipped Combination Saw Blade
This tungsten carbide tipped (T.C.T.) circular saw blade is designed for cutting wood. It features alternating top bevel tooth geometry with raker teeth for efficient chip removal and smooth cuts.
Technical Specifications
Product Overview
Professional Combination Saw Blades
These Tungsten Carbide Tipped (T.C.T.) saw blades feature an ATB with raker tooth geometry, specifically designed for smooth cuts and efficient chip removal. Built with heat-treated bodies for enhanced durability, they are suitable for various wood cutting applications. Each blade is engineered for high-performance operation with a maximum speed of 7600 RPM.
Technical Specifications
Performance Metrics
7,600 RPM
Max Operating Speed
- Material
- Tungsten Carbide TippedWood

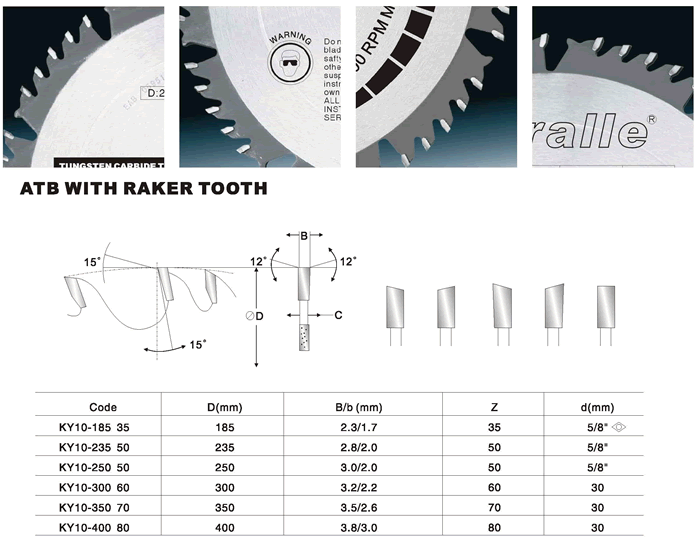

Product Range and Compatibility
Standard Sizes and Configurations
| Model | Diameter (mm) | Teeth (Z) | Bore (mm) |
|---|---|---|---|
| KY10-185 | 185 | 35 | 5/8" |
| KY10-235 | 235 | 50 | 5/8" |
| KY10-250 | 250 | 50 | 5/8" |
| KY10-300 | 300 | 60 | 30 |
| KY10-350 | 350 | 70 | 30 |
| KY10-400 | 400 | 80 | 30 |
Safety and Maintenance
Safety Instructions
- Always use blade guard
- Wear safety glasses
- Inspect for cracks/damage before use
- Consult owner's manual before operation
