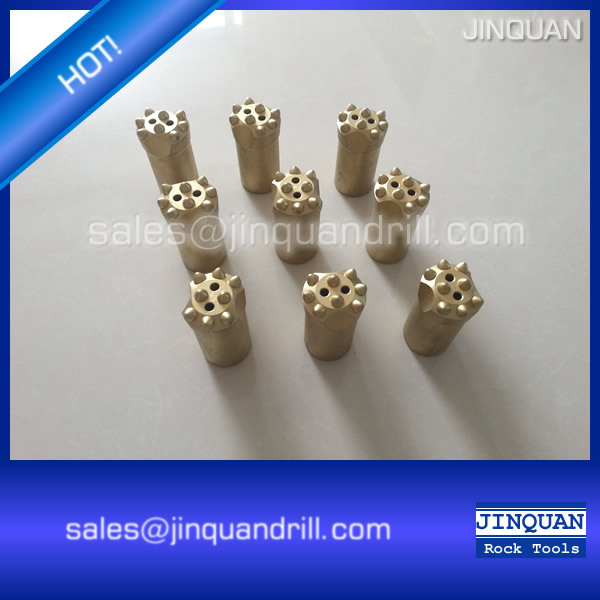

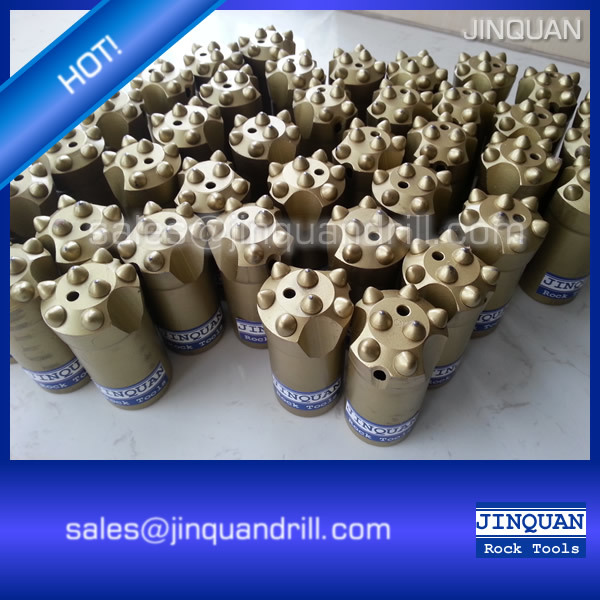

Tungsten Carbide Tapered Button Bit for Rock Drilling
This tungsten carbide tapered button bit is designed for rock drilling applications. It features enhanced wear resistance, toughness, and deflection resistance for a long service life and good size accuracy.
Technical Specifications
Product Overview
High-Performance Rock Drilling Solution
These tungsten carbide tapered button bits are engineered for demanding rock drilling, mining, and quarrying applications. They feature high hardness and superior wear resistance, ensuring a long service life and excellent size accuracy during operation. Designed for efficient rock penetration, these bits offer better deflection and fracture resistance to maximize drilling productivity.
Technical Specifications
Available Diameters
- 22
- 28
- 29
- 30
- 32
- 33
- 34
- 35
- 36
- 38
- 40
- 41
- 42
- 45
Length Options
- 50
- 55
- 60
- 71
- 80
- Taper Degree Options
- 4°6°7°11°12°
- Number of Buttons
- 45678
- Flushing Water Holes
- 123
Material & Construction
Materials
- Tungsten Carbide Buttons
- 42CrMo Alloy Steel Body
- Skirt Type
- ShortLong
Performance Features
Key Benefits
High HardnessWear ResistanceHigh ToughnessFracture ResistanceLong Life
Logistics
Standard Packaging
25 pcs
Pieces per Box
0.3 kg
Unit Weight
22.5 kg
Total Package Weight
- Package Size
- 24 x 21 x 19 cm
