Tungsten Carbide Stone Crushing Blocks
Tungsten carbide stone crushing blocks are engineered for demanding mining and construction applications. These blocks provide exceptional wear resistance and high hardness, ensuring a prolonged service life in harsh environments.
Technical Specifications
Product Overview
High-Performance Tungsten Carbide Crushing Solutions

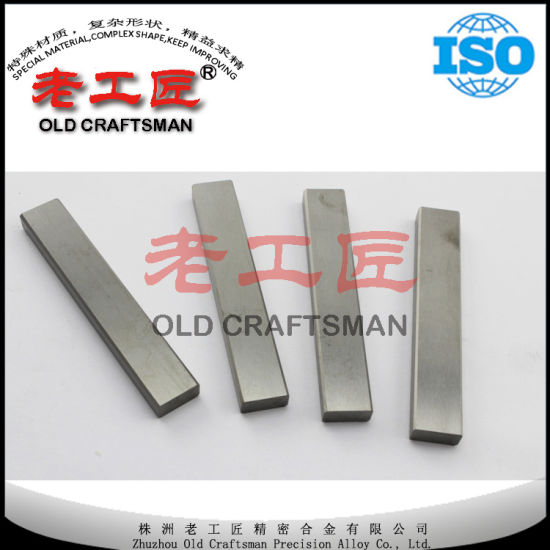

These YG8C tungsten hard alloy blocks are engineered for demanding construction and mining applications. Utilizing 100% raw materials and HIP sintering technology, they offer superior hardness, wear resistance, and impact toughness. Designed for extreme environments, these blocks help minimize equipment downtime and maximize operational productivity in stone crushing operations.
Technical Specifications
- Alloy Grade
- YG8C
- Quality Certifications
- ISO 9001
Material Grade Data

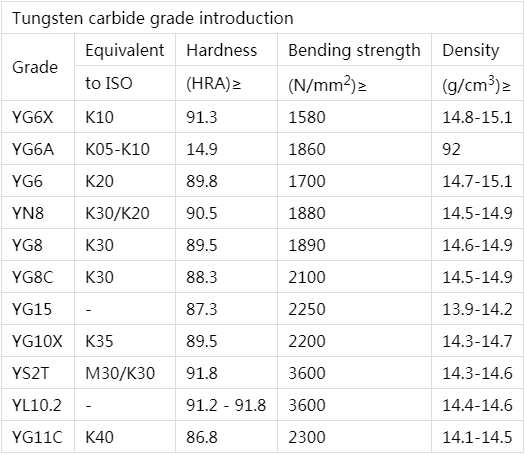

Tungsten Carbide Grade Comparison
| Grade | ISO Equivalent | Hardness (HRA) | Bending Strength (N/mm²) |
|---|---|---|---|
| YG8C | K30 | 88.3 | 2,100 |
| YG6X | K10 | 91.3 | 1,580 |
| YG8 | K30 | 89.5 | 1,890 |
| YS2T | M30/K30 | 91.8 | 3,600 |

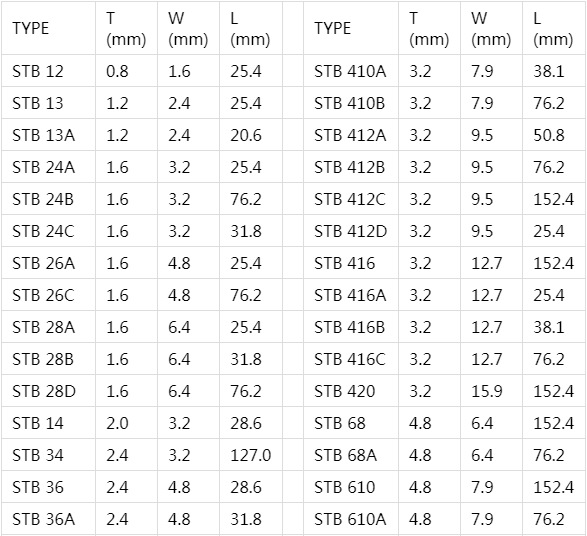

Dimensional Specifications
Standard Dimension Range
| Type | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| STB 12 | 0.8 | 1.6 | 25.4 |
| STB 24A | 1.6 | 3.2 | 25.4 |
| STB 412A | 3.2 | 9.5 | 50.8 |
| STB 610 | 4.8 | 7.9 | 152.4 |
Applications
Common Industrial Applications
- Stone Crushing Operations
- Impact Crushers
- Hammer Mills
- Processed Wood Production
- Hardened Steel and Cast Iron Machining
- Brake Material Manufacturing
