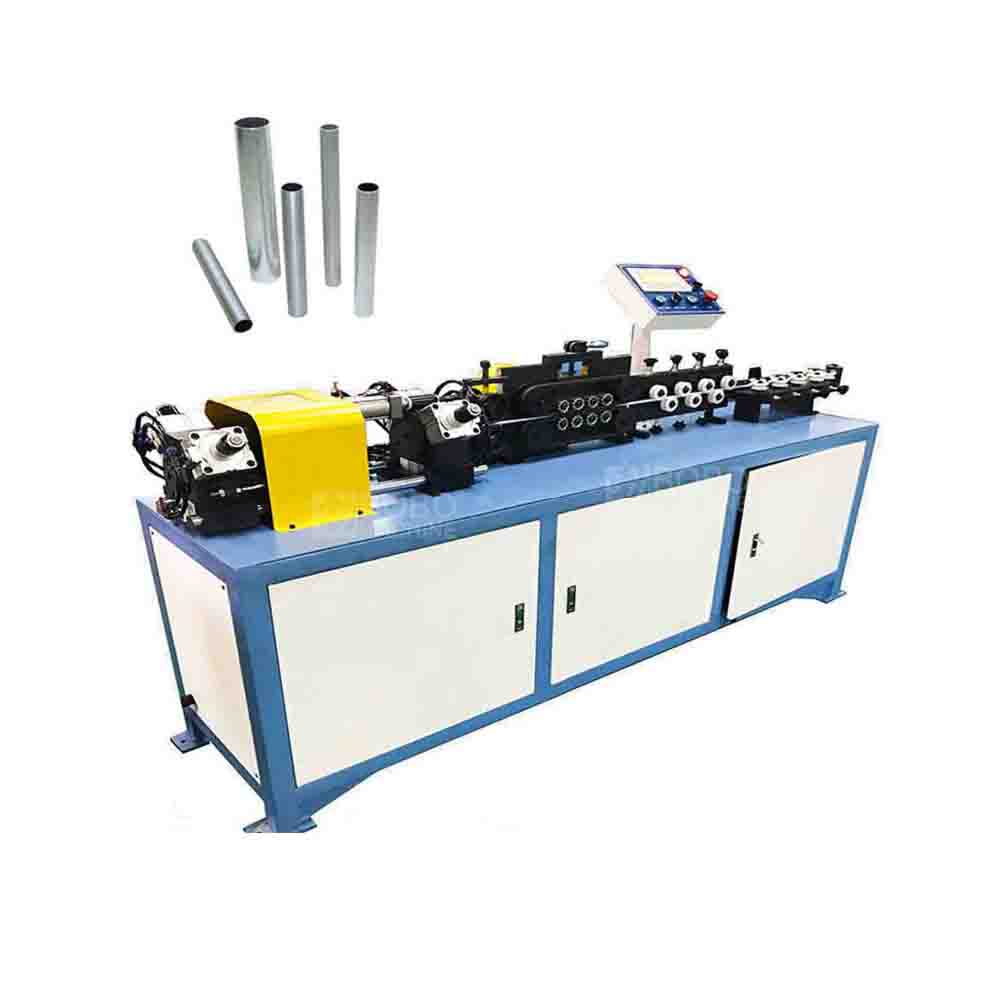

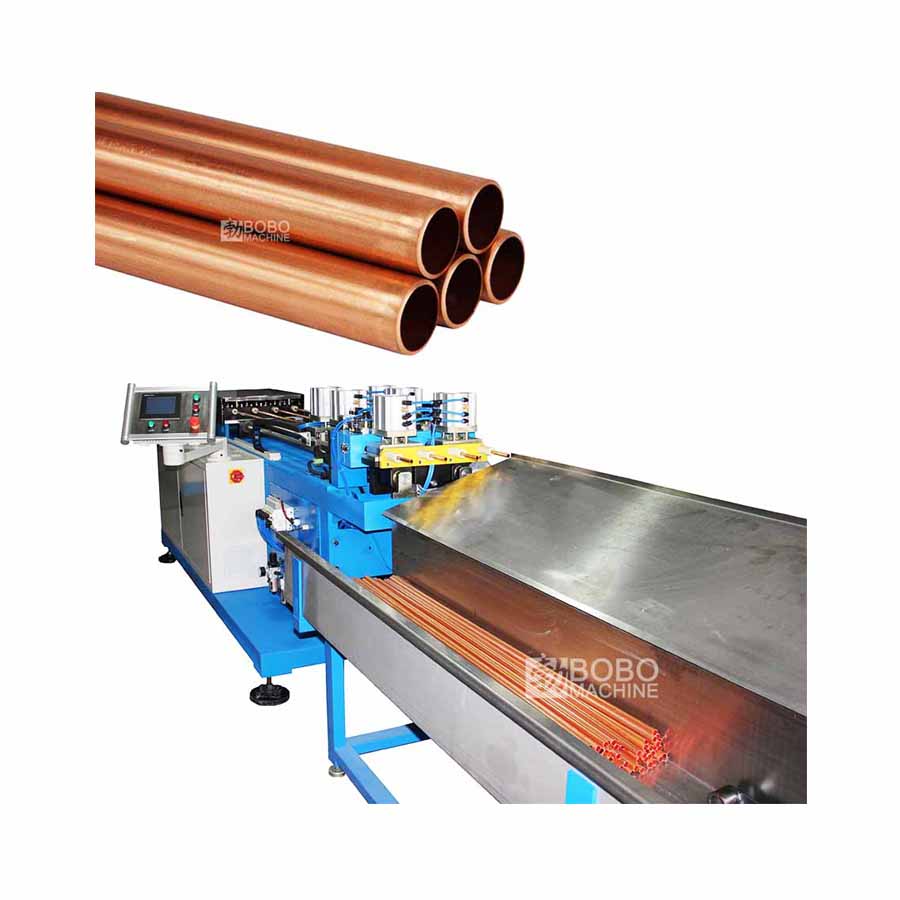

Tube Straightening and Chipless Cutting Machine
This chipless tube straightening and cutting machine is designed for processing copper and aluminum tubes, primarily used for tube blanking before bending or welding in condensers and evaporators. Its three-part clamping die, inspired by lathe chucks, minimizes tube distortion during cutting and simplifies die changes and adjustments.
Technical Specifications
Overview
Precision Tube Processing
This chipless tube straightening and cutting machine is engineered specifically for copper, aluminum, and Bundy tube applications. It is an essential solution for tube blanking prior to bending or welding processes in condenser and evaporator manufacturing. By utilizing a unique three-part clamping die structure, the machine minimizes tube distortion while ensuring high concentricity and smooth, burr-free cutting surfaces.
Key Features
Core Advantages
- Three-part clamping die minimizes tube distortion
- High accuracy concentricity for superior welding quality
- Chipless cutting with 360° rotary mechanism
- Two-point clamping for stable processing
- Straightening system with Nylon wheels and 'U' shape rubber belt to prevent surface scratching
Technical Specifications
Performance Metrics
Machine Specifications
| Parameter | Details |
|---|---|
| Tube Material | Copper / Aluminum / Bundy tube |
| Tube Diameter | 4-20mm |
| Min Cutting Length | >50mm |
| Control System | PLC / HMI |
| Power Supply | 380V, 50Hz, 3Phase |
| Dimensions | 2300 x 650 x 1300 mm |
| Weight | 460 KG |
Construction
- Build Materials & Finish
- Welded Main FramePowder CoatingCustomizable Color
