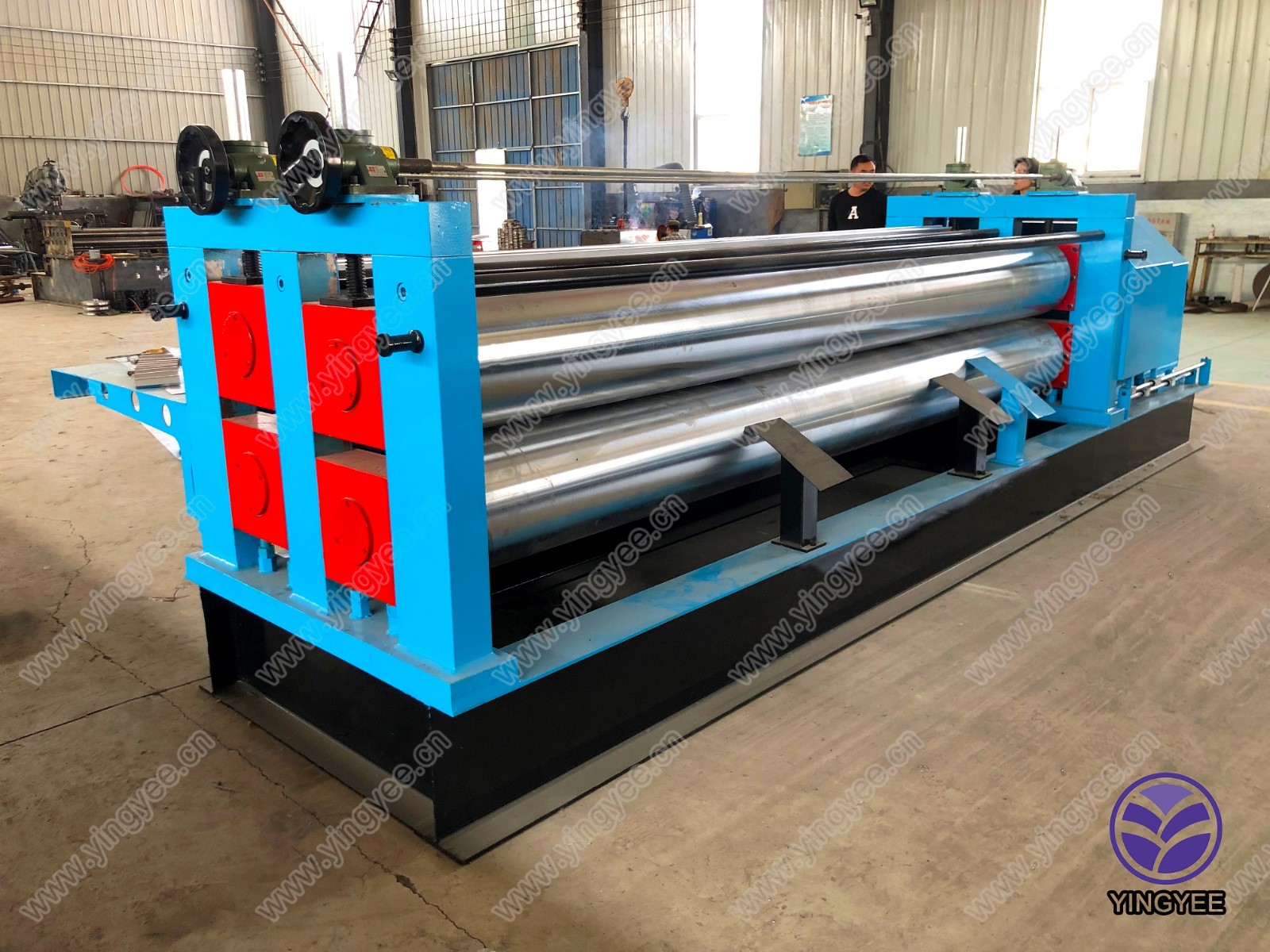

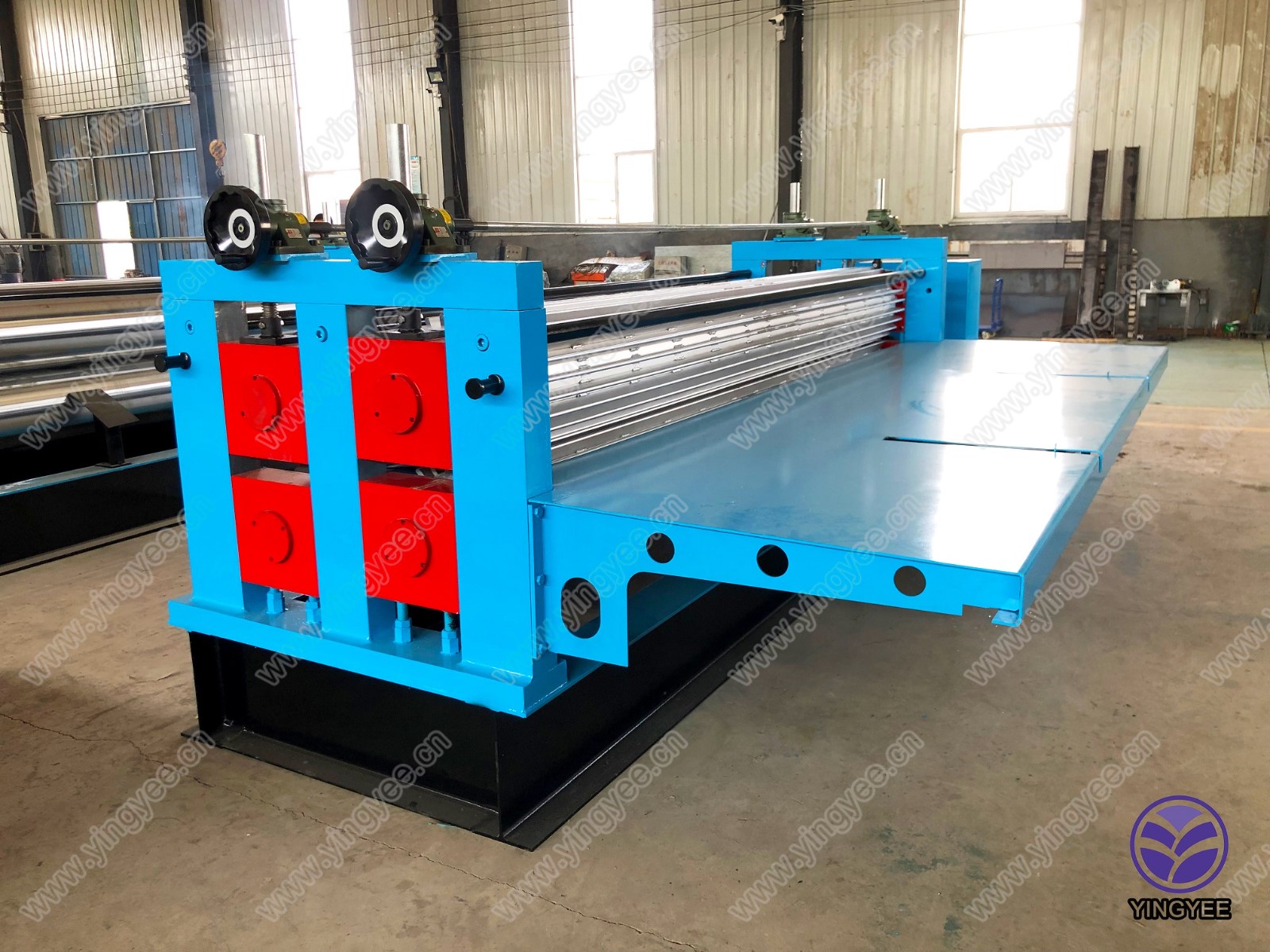

Transverse Corrugated Sheet Forming Machine
This transverse thin corrugated sheet forming machine efficiently produces corrugated sheets. It features adjustable controls for precise customization of corrugation parameters.
Technical Specifications
Overview
High-Efficiency Corrugated Sheet Forming
This transverse thin corrugated sheet forming machine is engineered for high-precision metal processing, delivering consistent results for roofing and cladding applications. It features a robust, stable frame and an automated timing feeding system to optimize production rates. Designed for reliability and speed, this machine supports a variety of sheet thicknesses and dimensions to meet diverse industrial requirements.
Technical Specifications
Key Performance Metrics
4 ton/hour
Max Production
12 feeds/min
Max Forming Speed
0.4 mm
Max Panel Thickness
Model Specifications
| Model | Effective Length | Power | Dimensions (L*W*H) |
|---|---|---|---|
| YY-26E | 2,480 | 5.5-8 KW | 4300*2000*1500 |
| YY-32E | 3,050 | 7.5-8 KW | 5000*2000*1502 |
| YY-37E | 3,660 | 7.5-8 KW | 5400*2000*1503 |
| YY-40E | 3,900 | 11.0-8 KW | 5600*2000*1504 |
| YY-43E | 4,300 | 11.0-8 KW | 6100*2000*1506 |
Corrugation Parameters
- Pitch: 76mm, Height: 18mm
- Pitch: 63mm, Height: 15mm
Capabilities
- Operational Features
- Automatic Timing FeedingAdjustable Corrugation DepthContinuous Material FlowEmergency Stop SafetyRobust Chain-Driven System
