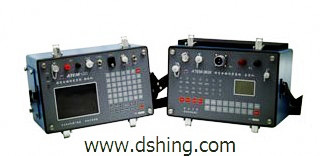

Transient Electromagnetic System for Geophysical Exploration
This system is designed for investigation works including metal mine, coal field, oil field gas, geothermal, and water resources surveys. It also supports environmental pollution detection with lead synchronization technology.
Technical Specifications
System Overview
Advanced Geophysical Exploration System
This transient electromagnetic system is designed for comprehensive subsurface investigation, suitable for metal mining, coal fields, oil and gas exploration, and geothermal and water resource surveys. It utilizes advanced lead synchronization and FPGA technology to achieve high-resolution data acquisition and ultra-high power detection ranges. Engineered for portability and durability, the system features a robust design capable of operating in complex geological environments and mountainous terrain.
- Primary Applications
- Metal Mine ExplorationCoal Field SurveyOil & Gas ExplorationGeothermal SurveyWater Resource MappingEnvironmental Pollution Detection
Receiver Specifications
- Dimensions
- 36 x 23 x 30 cm
- Weight (without cells)
- 7 kg
- Sampling Frequency
- Fastest 5μs
- Dynamic Range
- 1~156 db
- Storage Capacity
- 128M Memory, 4G Storage

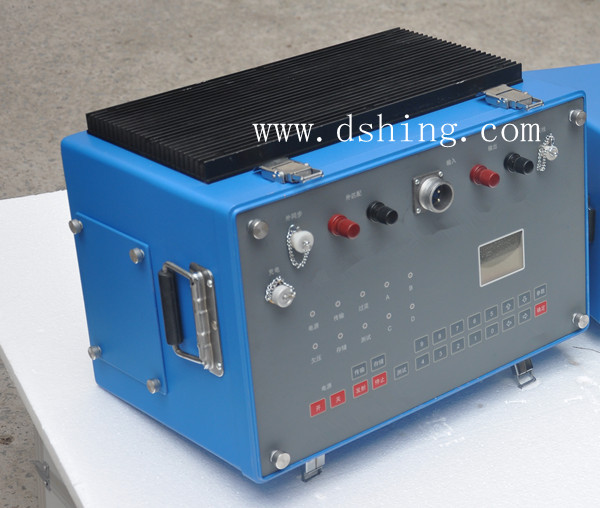

Transmitter Specifications
Rated Output Power
10 Kw
Rated Output Power
360 V
Max Output Voltage
50 A
Continuous Output Current
- Minimum Shutoff Time
- 1.2 μs
- Frequency Range
- 1.25~125 Hz (8 frequency spots)
- Dimensions
- 490 x 300 x 310 mm
- Weight
- 12 kg
