Technical Specifications
Overview

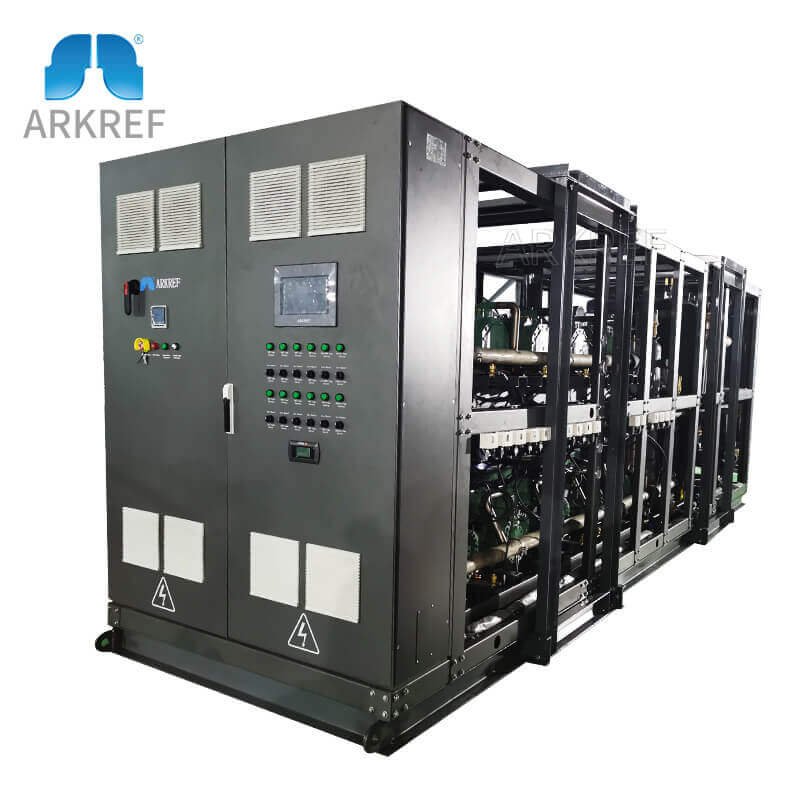

Industrial Transcritical CO2 Refrigeration

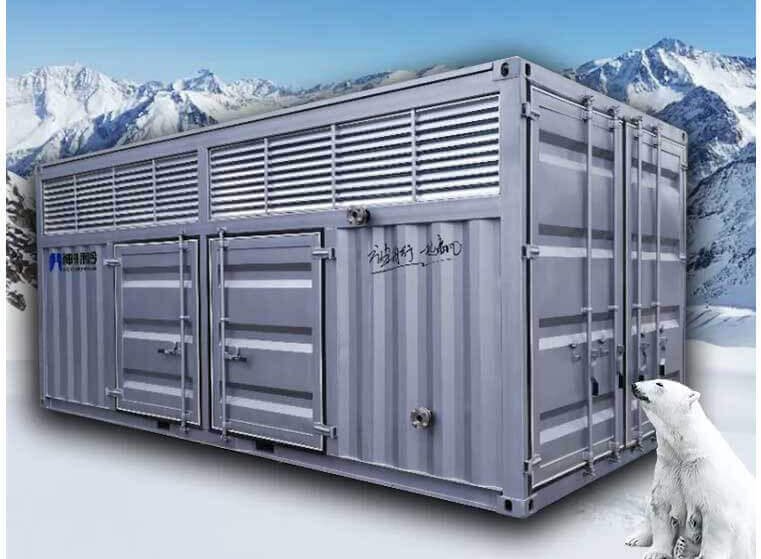

This advanced transcritical CO2 refrigeration unit utilizes the natural R744 refrigerant to deliver high-efficiency cooling and heating for medium to large-scale cold storage facilities. Engineered for versatility, the system features a robust compressor design and energy-optimization technologies such as ejector systems and auxiliary compression. It is a plug-and-play solution suitable for diverse environments, ranging from quick-freezing and low-temperature storage to high-temperature production water heating.
Technical Specifications
- Refrigerant
- R744 (CO2)
- Evaporation Temperature Range
- -50°C to +20°C
- Compressor
- Screw Compressor (HSK/CSH series)
- Hot Water Output Temperature
- 40°C - 100°C
- Condenser
- CO2 gas cooler
Features
Performance Advantages
- High COP via vapor-vapor and gas-liquid ejector technology
- Booster two-stage supercharging
- Plug and play modular design
- High-temperature heat recovery capability
- Low operating costs
- Environmental Credentials
- GWP=1ODP=0Non-toxicNon-flammable
Applications
Typical Use Cases

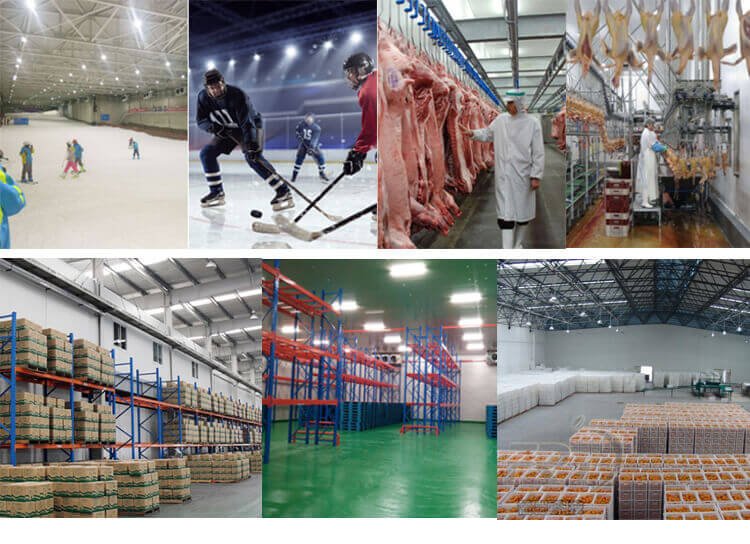

Cold StorageQuick FreezingProcess CoolingDomestic Hot WaterIndoor Ski SlopesIce RinksFood Processing
