Tractor-Mounted Potato Harvester
This tractor-mounted potato harvester is designed for 20-30hp tractors. It efficiently digs potatoes, separating them from the soil without causing damage.
Technical Specifications
Overview
Efficient Potato Harvesting Solution

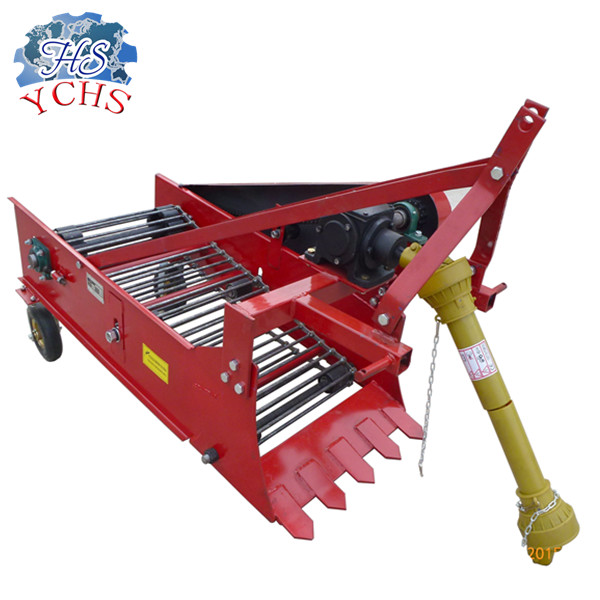

The 4U series potato harvester is a robust, tractor-mounted agricultural implement designed for efficient and gentle crop extraction. Engineered to minimize damage, the system utilizes a specialized digging shovel and a vibration sieve mechanism to effectively separate soil from crops. This unit is compatible with a wide range of tractor power outputs, making it a versatile choice for small to medium-sized farming operations.
Technical Specifications
Harvesting Rows
| Model | Rows |
|---|---|
| 4U-1 | 1 |
| 4U-2 | 2 |
- Working Width
- 600 mm (4U-1); 900/1300/1500 mm (4U-2)
- Working Depth
- 250 mm
- PTO Rotation Speed
- 540 r/min
- PTO Shaft Spline
- 6 spline
Compatibility
Matched Tractor Power
20 hp
Min Power (4U-1)
70 hp
Max Power (4U-2)
Linkage System
- Three-point suspension I type (4U-1)
- Three-point suspension II type (4U-2)
Performance
- Key Features
- Vibration SieveNon-DamagingSoil SeparationTractor Mounted
